HSP Deluxe Max Air Flow Bundle (2006-2007 Chevrolet / GMC)
HSP Deluxe Max Air Flow Bundle (2006-2007 Chevrolet / GMC)
Brand: HSP Diesel
The 384-HSP is best known as the Deluxe Max Air Flow Bundle for the 2006 and 2007 LBZ Duramax equipped Chevrolet and GMC trucks. This bundle kit is everything you need to get the maximum performance out of the HSP Diesel lineup.
What is the Deluxe Max Air Flow Bundle for the LBZ Duramax?
The Deluxe Max Air Flow Bundle for the LBZ Duramax is everything that HSP Diesel makes to increase performance on the 2006 and 2007 LBZ trucks. This bundle kit is perfect for the person looking to do everything you can at one time and wanting to save some money because we do a bundle.
Tell us about the Billet Thermostat Housing Kit that comes in the Deluxe Max Air Flow Bundle
The Billet Thermostat Housing Kit that is inside the Deluxe Max Air Flow Bundle is a great addition to any truck. The factory setup is clunky and is in the way often to not Only work on things but make upgrades much easier. This kit removes the factory coolant hose that crosses over the driver-side valve cover this makes room for injection pump modifications. Using a CNC machined billet aluminum upper thermostat this part not Only works amazing but looks much better than the factory parts.
Tell us about the Max Flow Bridge and Cold Side Tube that comes in the Deluxe Max Air Flow Bundle
To get started the cold side tube inside this kit is made with a 3 Inch diameter tube to increase the amount of air that can be pushed through the pipe. We also use a two-piece design for the Max Flow Bridge. This design makes a few changes over the stock parts. First, off the install of the two-piece Max Flow Bridge is much easier because of the ability to align what you need. It also reduces the likelihood of boost leaks. We test these Max Flow Bridges to over 100 PSI meaning that you have little to worry about when it comes to holding power.
Tell us about the 2in Replacement Up-Pipes that comes in the Deluxe Max Air Flow Bundle.
The factory up-pipes are not great in the Duramax platform. Often the flanges warp, or the bellows break. This causes exhaust leaks and causes a loss of power. The HSP Diesel 2in Replacement Up-Pipes are made with heavy wall 304 stainless steel tubing. We do this to make sure that the parts will stand up to wear and tear and the test of time. We also use heavy-duty sleeved bellows to reduce the likelihood of a failure.
Tell us about the Hot Side Intercooler Tube that comes in Deluxe Max Air Flow Bundle
The factory hot side intercooler pipe is a design that just doesn't work well for the long term. We often see a failure of this pipe due to the way the connections are made. This is why we made the lower intercooler connection a straight style connection into the intercooler. This removed the possibility of that common failure point. We also increased the size of the HSP Diesel hot side intercooler tube to a 3 Inch diameter that is also mandrel-bent. This increases flow and decreases the turbulence of that air that is traveling through the charge air system.
Tell us about the VGT Intake Mouthpiece that comes in the Deluxe Max Air Flow Bundle
The factory intake mouthpiece is restrictive and does not look great under the hood of these trucks. This is why HSP Diesel created the VGT Intake Mouthpiece, not Only does it look so much better but with our handmade design and increase in size, we were able to increase the flow and thus increasing the power the truck can make. Using an O-ring style seal we were able to make sure that the HSP Diesel VGT Intake Mouthpiece creates a tight seal and prevents boost leaks. The VGT Intake Mouthpiece will give you the ability to reroute your factory PCV system and remove the factory resonator box. Thus eliminating unwanted engine oil gumming up the turbo, and intake system (PCV re-route sold separately see 003-1-HSP).
Tell us about the Cold Air Intake that comes in the Deluxe Max Air Flow Bundle
The HSP Diesel Cold Air Intake makes major changes over the factory system. Using a 4 1/2 Inch mandrel-bent intake tube we increased the amount of air that the intake can bring in. Using the HSP Diesel heatshield box you can rest easy knowing that the intake is Only taking in the cold air and not bringing in the heat from the engine bay. On average we have seen on the dyno a 20 horsepower and 58 pounds of torque increase.
Tell us about the Factory Replacement Coolant Tank that comes in the Deluxe Max Air Flow Bundle
The factory design of the coolant tank in the Duramax trucks is an unsightly design that fails often. The major reason for the failure and the looks is because the factory part is made from plastic and that causes issues in cracking. The plastic is also known to turn yellow due to the heat and coolant. This is why the HSP Diesel Factory Replacement Coolant Tank is hand-welded aluminum that not Only holds up to the test of time and abuse, but because we can powder coat the tank it can match the accent under the hood and look much better than factory parts.

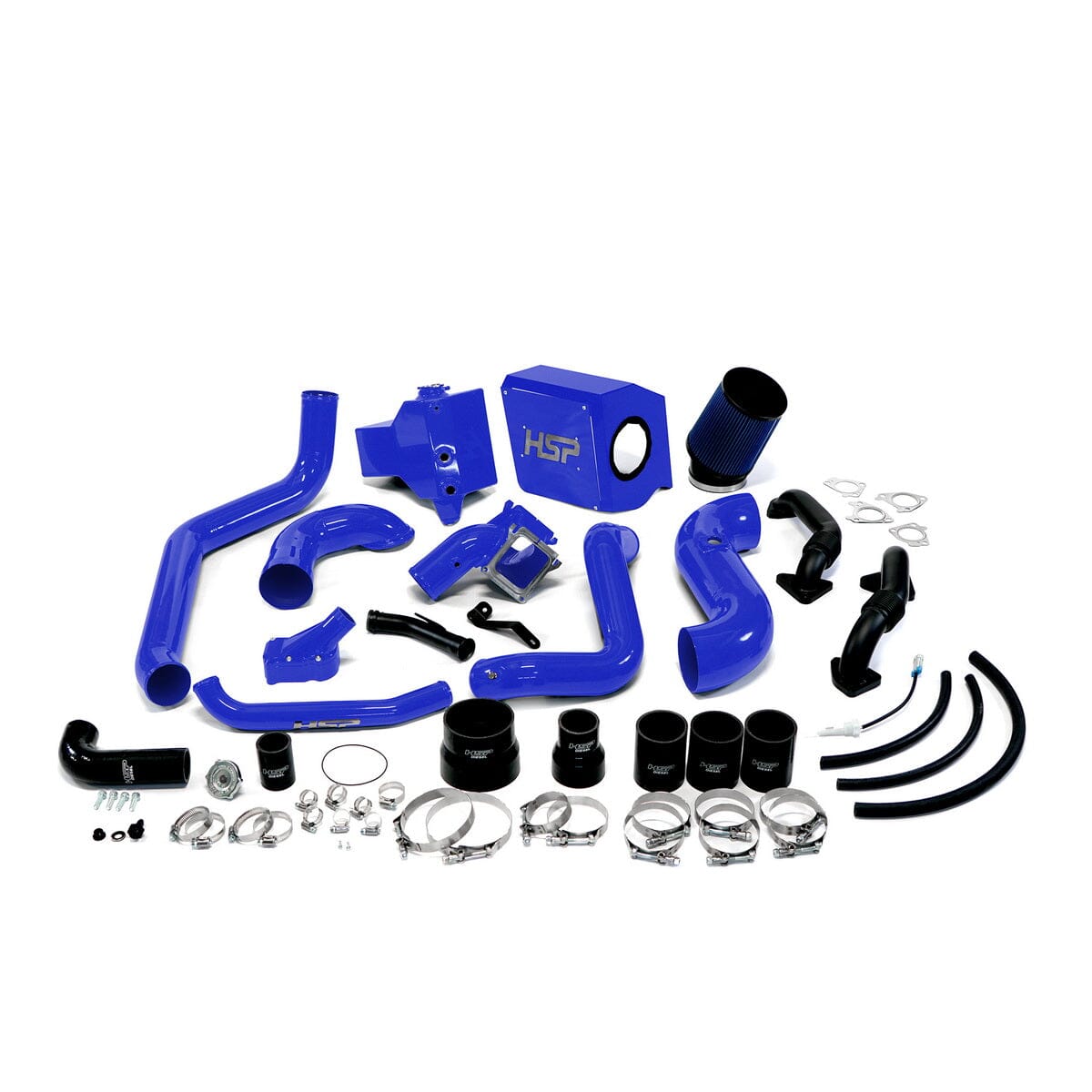

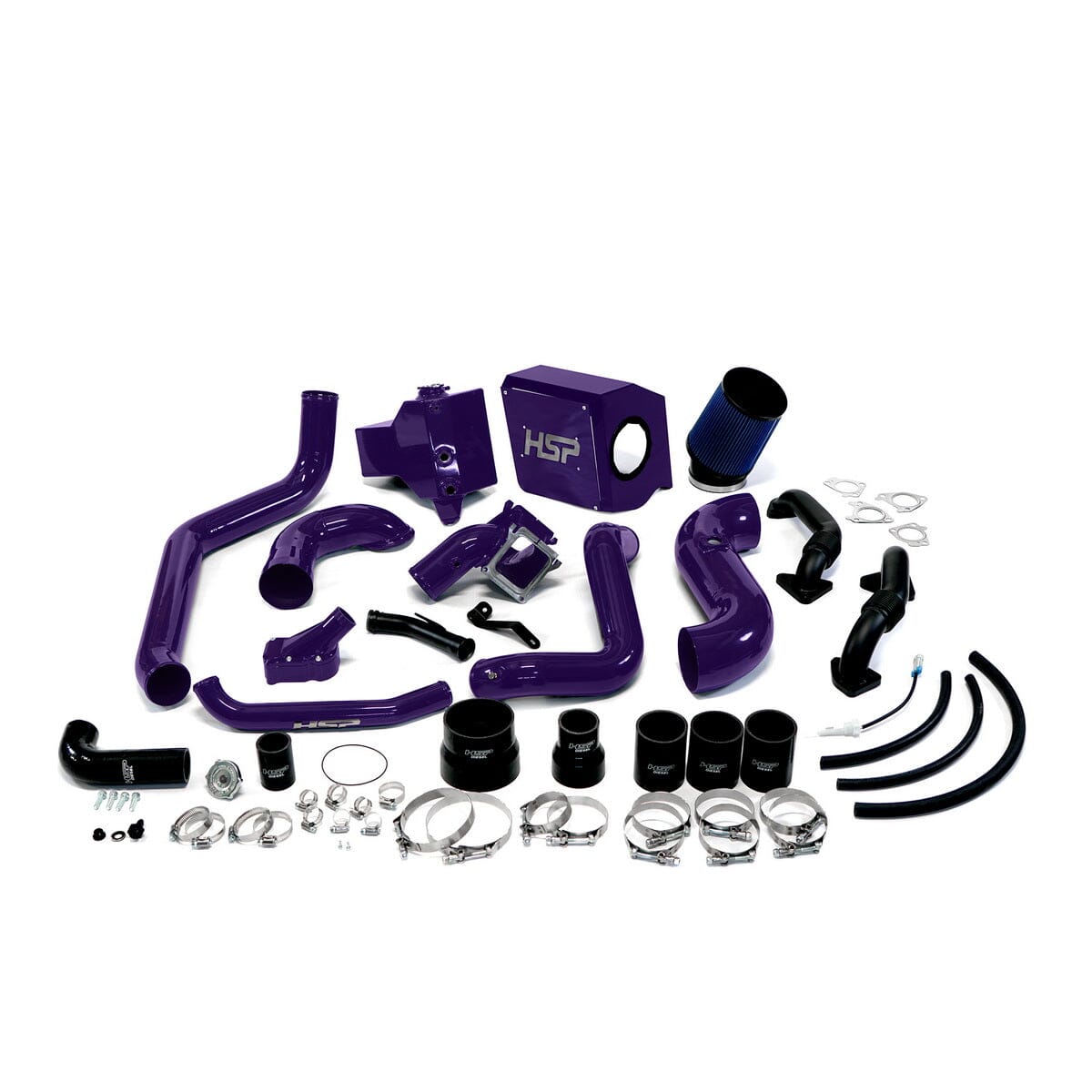

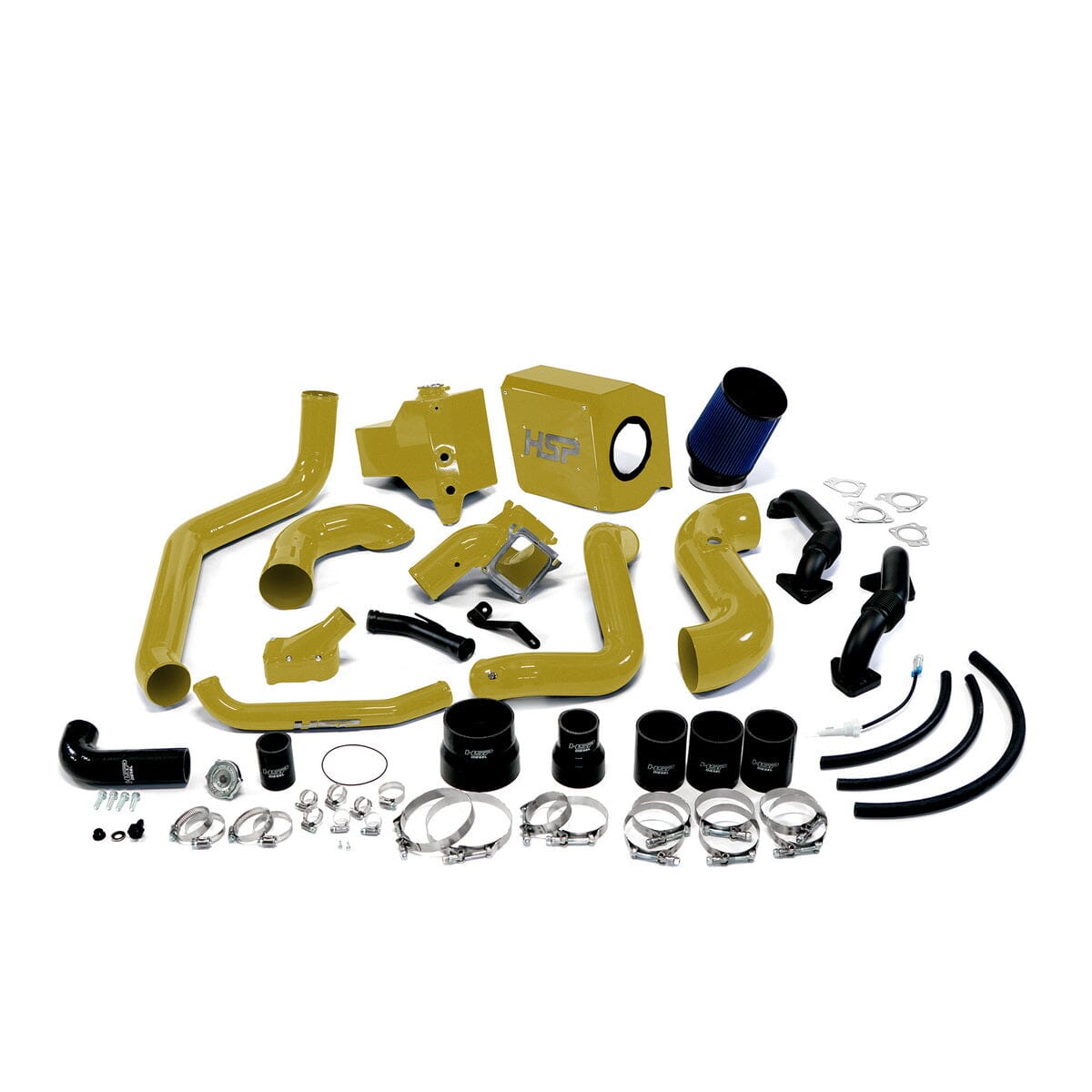

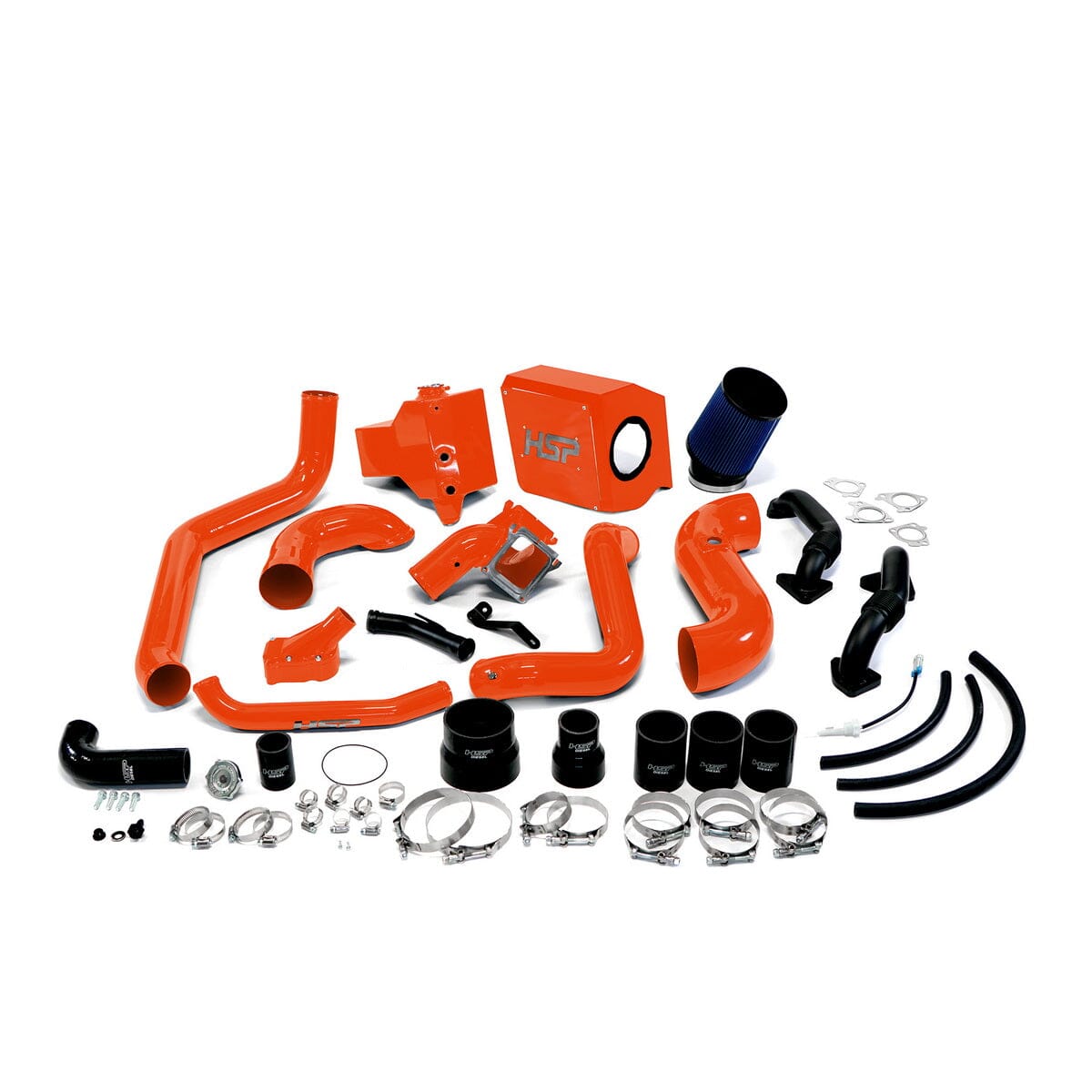

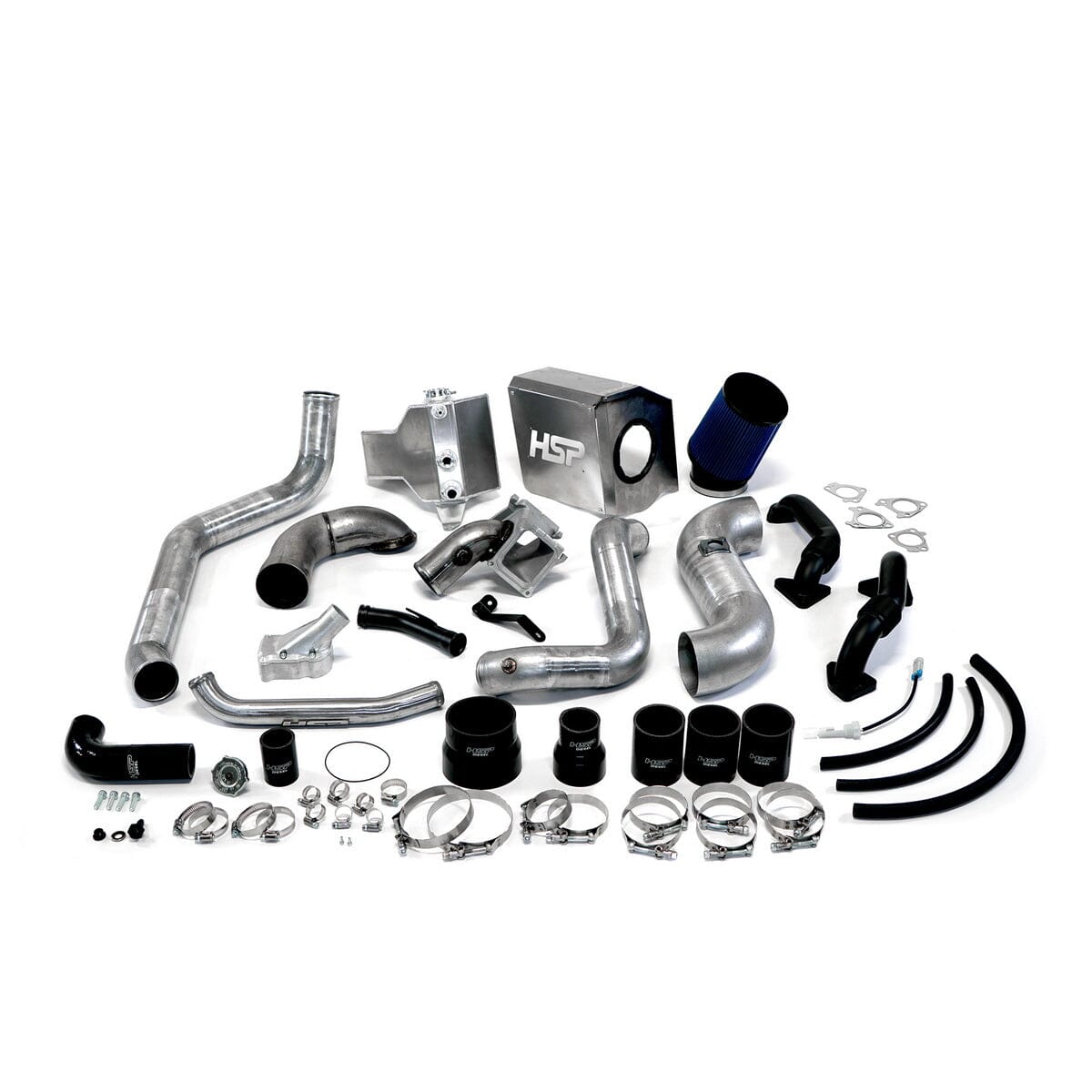

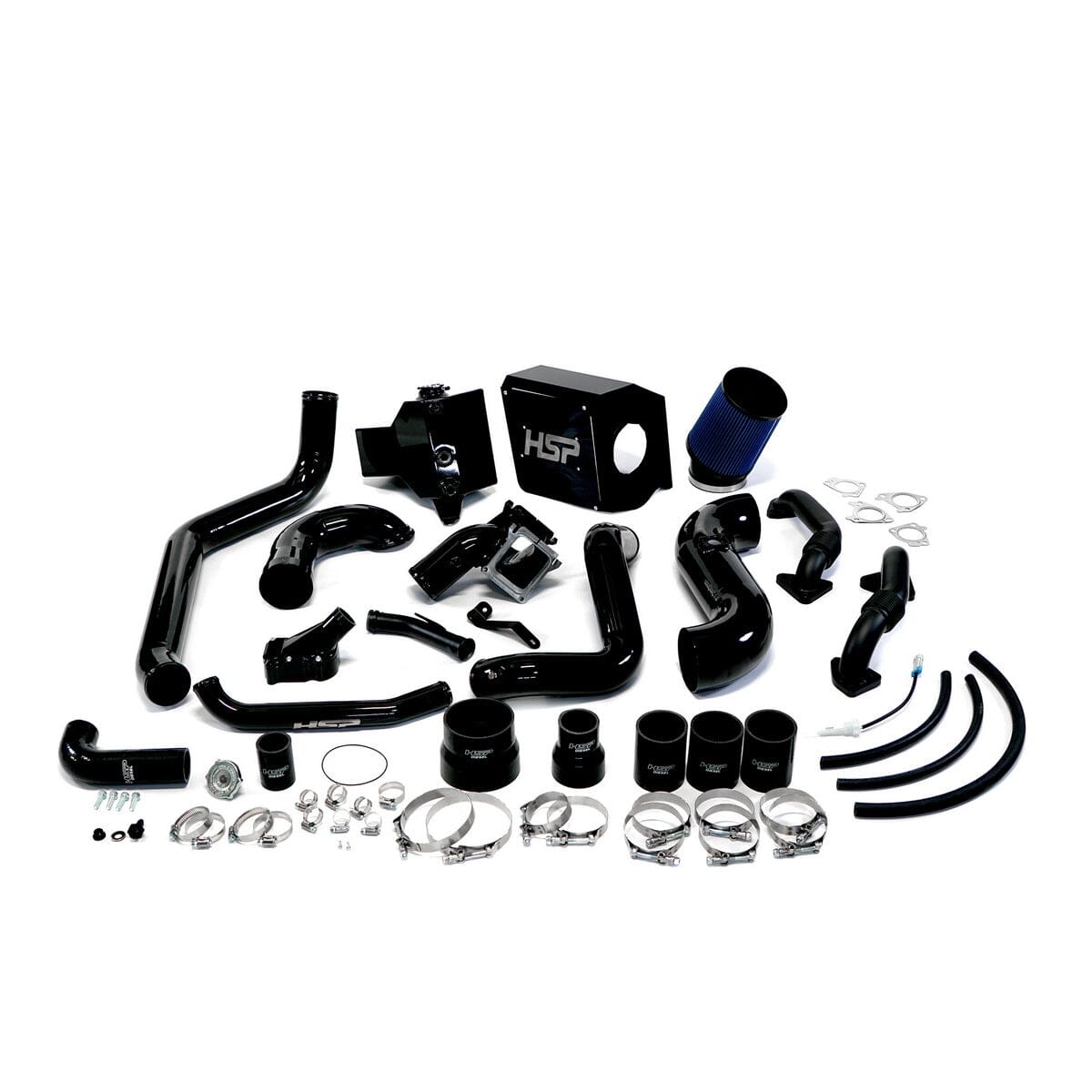

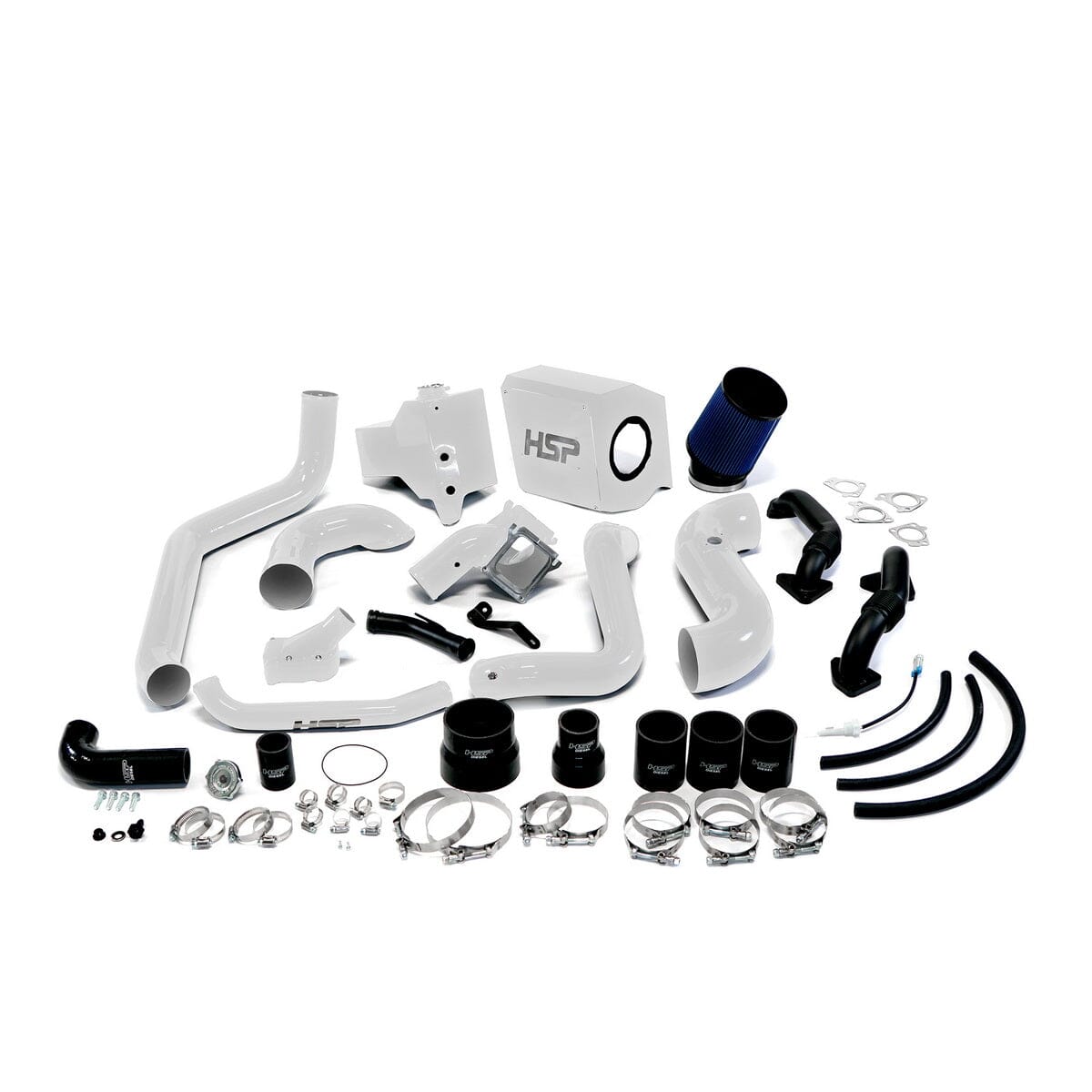

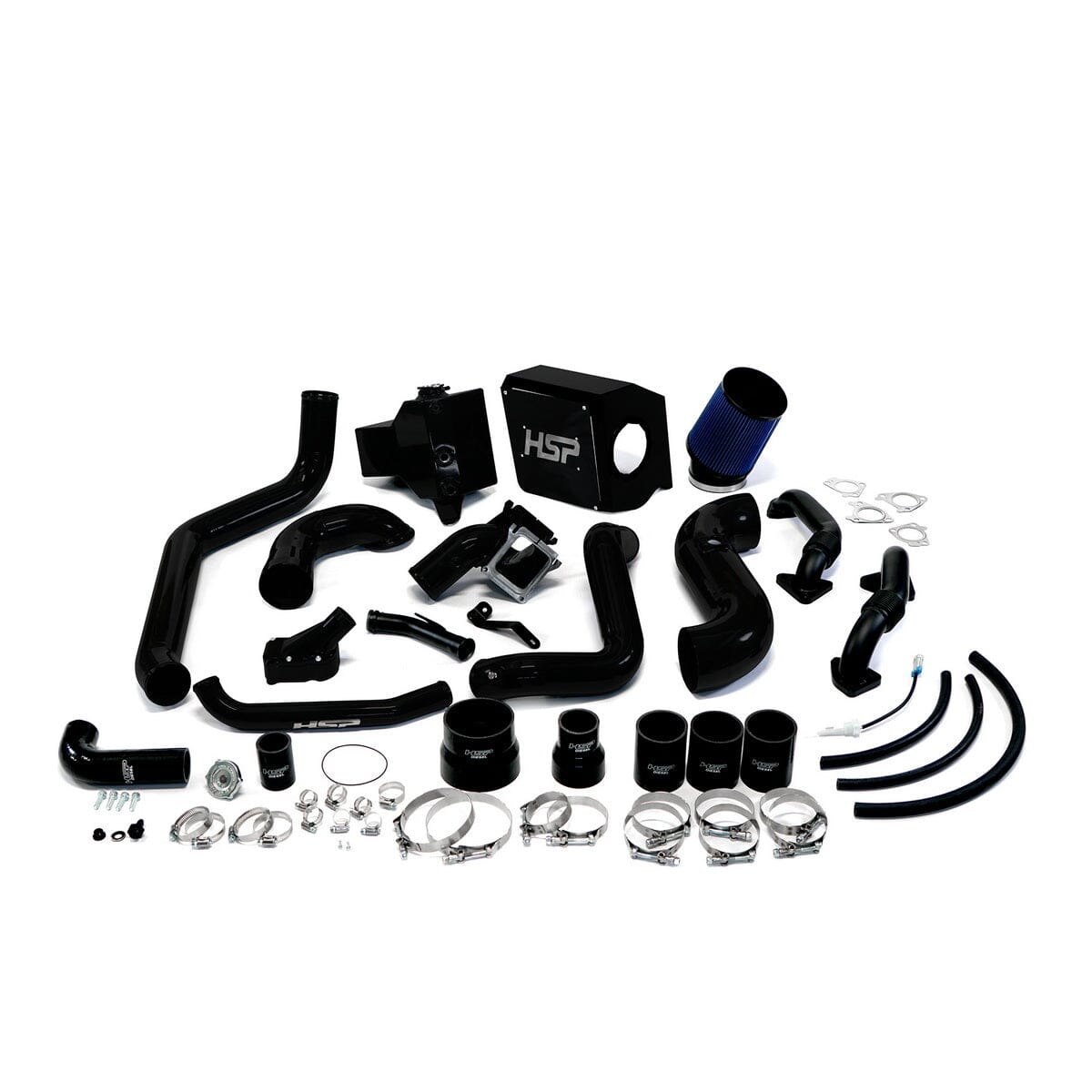

What comes with the Deluxe Max Air Flow Bundle?
- (1) Max Flow Bridge
- (1) Drivers Side Up-Pipe
- (1) Passenger Side Up-Pipe
- (1) Cold Air Intake
- (1) 3 Inch Mandrel Bent Cold Side Pipe
- (1) 3 Inch Mandrel Bent Hot Side Pipe
- (1) Billet Thermostat Housing Kit
- (1) VGT Intake Mouthpiece
- (3) 3 Inch x 4 Inch Straight boot
- (7) 3 Inch T-bolt Clamp
- (1) 2.25 Inch - 3 Inch Reducer boot
- (1) 2.25 T-bolt Clamp
- (1) 1/8 Inch NPT Brass Plug
- (1) Bridge neck O-ring
- (2) 5/8 Inch Worm Gear Clamp
- (2) Bridge neck stud
- (2) Bridge Neck 12-point Nut
- (2) M4x.7x10mm Bolt
- (3) 10-32 x 3/8 Inch Button Head Screws
- (4) 1/8 Inch Aluminum Rivet
- (1) 4 Inch - 4.5 Inch Reducer Boot
- (1) 4 Inch t-bolt clamp
- (1) 4.5 Inch T-bold Clamp
- (1) 4.5 Inch Filter
- (1) Turbo inlet o-ring
- (1) Radiator cap
- (5) 1/2 Inch Worm gear clamp
- (1) 1 Inch Worm gear clamp
- (1) 1/2 Inch NPT float switch
- (1) Low Coolant sensor
- (1) Thermostat housing o-ring
- (4) M8x1.25-25mm Socket cap bolt
- (4) M6x1.0-18mm Socket cap bolt
- (1) M14x1.5 to 3/8 Inch Hose Barb
- (1) M14x1.5 Metric Port Plug
- (1) Metric Bonded Seal 14mm
- (1) 1.75 Inch x 3 Inch Straight Boot
- (1) 1.75 Inch 90 degree Boot
- (4) 1 3/4 Inch Worm Gear clamps
- (2) Up-Pipe Gaskets (Manifold Side)
- (2) Up-Pipe Gaskets (Turbo side)
At this time HSP Diesel is making a running change in boot style. This means you will possibly get boots with no logos on them. Please know we are doing this to make sure we can continue to provide you with the high-quality parts you have gotten from HSP Diesel in the past.
What Does The HSP Deluxe Max Air Flow Bundle Fit?
- LBZ: 06-07 VIN Code 2 or D
How do people know the VIN code?
Engine code is dictated by the 8th character of the VIN number. The 10th character is the year of the truck.
- Increased performance
- High flowing cold air intake
- Everything you need in one kit
- 3 Inch Diameter hot and cold side tubes
- Increased Spool up
- Powder Coat options for a clean look under the hood
- Bundle kit gives you more for your money
- Major problems all fixed at one time
HSP No BS Limited Lifetime Warranty
At HSP we believe in our products and we stand firmly behind every single one that leaves our facility. For years we have taken care of almost everything and anything that our customers had issues with, but we didn't have a set in stone warranty. We have always gone above and beyond for our customers which set us apart from the rest. We will continue that same standard, but now we are taking things to the next level. Below you will be able to clearly read and understand our InchСљNo BS Inch warranty, its process, and the guidelines in which to follow.
