HSP Max Air Flow Bundle (2003-2004 Chevrolet / GMC)

HSP Max Air Flow Bundle (2003-2004 Chevrolet / GMC)

Brand: HSP Diesel

SKU:

Regular price $1,011.58 USD
Regular price $0.00 USD Sale price $1,011.58 USD
Sale Sold out
Finish

The 183-HSP or Max Air Flow Bundle for the 2003 and 2004 Duramax-equipped Chevrolet and GMC trucks is a game-changer. If you are looking to get just about everything you can that HSP Diesel sells for the 2003 and 2004 Duramax trucks then this is what you need.


What is the Max Air Flow Bundle for the 2003 and 2004 trucks?

Max Air Flow Bundle is perfect for the average joe and anyone looking to take their truck to the next level. The Max Air Flow Bundle consists of four major components to create the Max Air Flow Kit. Our Max Air Flow Bundle comes with an Intake, Cold side Tube, Hot Side Tube, and our Max Flow Inlet horn. With these 4 parts, you are going to be able to take that truck to the next level in not Only performance but looks as well due to our design and the large lineup of powder coat color options for all these pieces.


Tell us about the Cold Air Intake that is in the Max Air Flow Bundle

The Cold Air Intake that is inside the Max Air Flow Bundle is exactly what you are used to seeing from HSP Diesel. Let us start with the major changes in our intake, we start with a 4 1/2 Inch mandrel-bent tubing. What this does for is us is the intake is now able to flow a lot more and is able to take in all the extra air. What some people do is they put a better flowing filter on their stock intakes which is great but the intake tube can't flow as much as the filter can so you then end up with a restriction. So HSP Diesel increased the size of our intake tube and then paired that with our high-flowing 7 layer filter. We then created a heatshield that is made to not Only look better but keeps out the high temps that we see inside the engine bay. Our heatshield also helps add a small added layer of protection to the filter. Our cold air intakes have proven on the dyno to increase upwards of 20 additional horsepower and 58 pounds of torque on average. It is worth noting that by design, the heat shield box will now draw in cold, fresh air from the headlight bezel and fender port.


Tell us about the Cold Side Tube that is in the Max Air Flow Bundle

The cold side pipe that is in our Max Air Flow Bundle is much different than the factory part. To start we used a 3-inch pipe that is then mandrel bent. The reason we did this is that we wanted not Only the maximum amount of space that we can fill with air. But we also wanted to give that air the smoothest and quickest route that it could follow on its way through the charge air system. This gives us the most efficient design and allows us to demand maximum performance.


Tell us about the Hot Side Tube that is in the Max Air Flow Bundle

The Hot side pipe that is in the Max Air Flow Bundle is one of the most important parts inside the kit. Now we say that because the factory hotside pipe is such a bad design we had to make serious changes to it. Just like the cold side tube inside the Max Air Flow Bundle, we used a 3 Inch diameter mandrel-bent tube. This gave us sweeping style bends to create a free-flowing pipe that allows for maximum flow. We also took the prone-to-fail factory lower intercooler boot and made some changes. The connection is now a straight style connect to the intercooler, this removes the failure point and gives more reliability.


Tell us about the Inlet horn that is in the Max Air Flow Bundle

The factory inlet horn is a massive choking point for the air system. Now the reason we say is that is the factory inlet horn is undersized and not bent smoothly in our opinion. This is why we took the inlet horn and bumped it up to a massive 3.5 Inch replacement piece. What this did is it made that entire system now be able to bring in much more fresh air, and when this is combined with the rest of the Max Air Flow Bundle you will quickly see the difference compared to the factory parts.

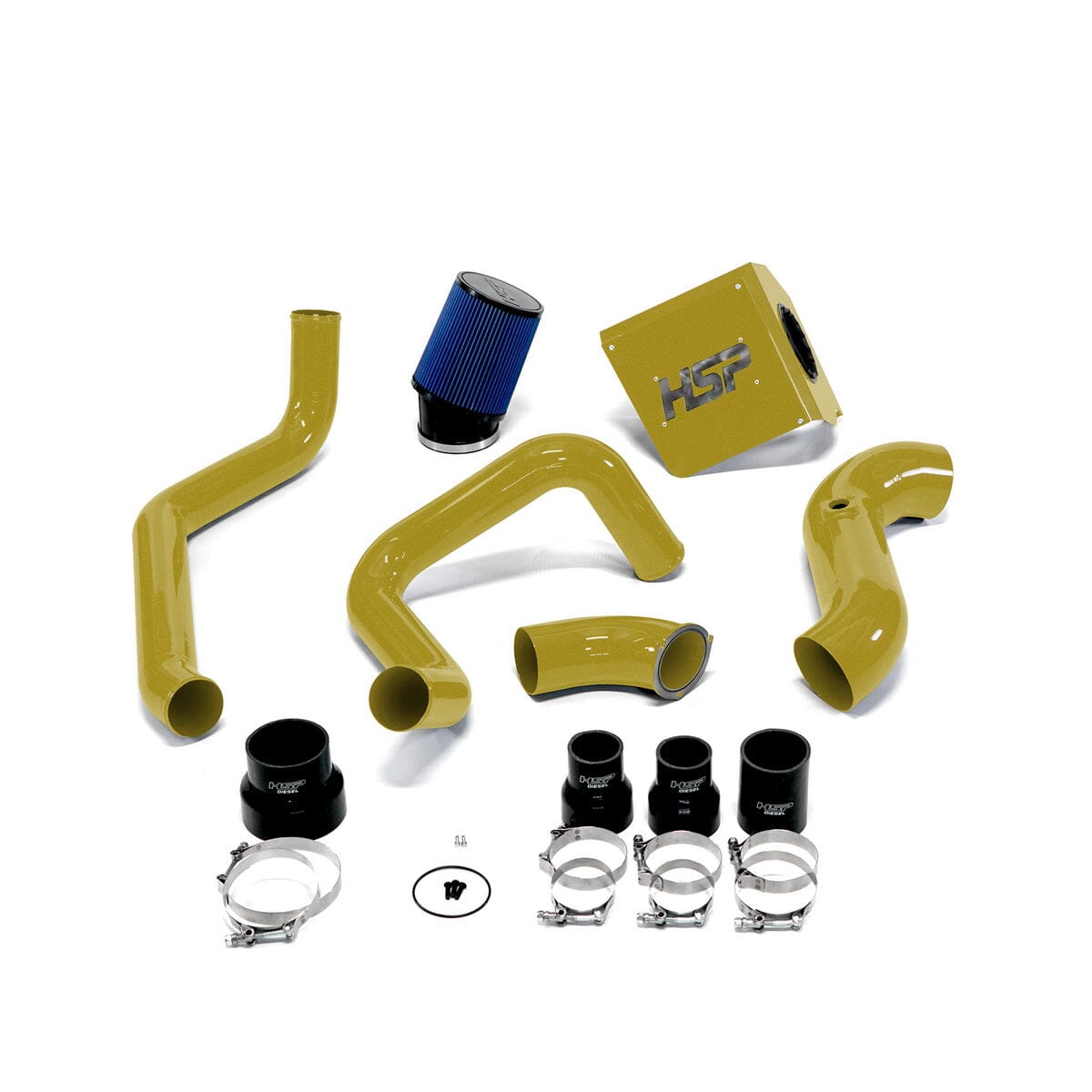

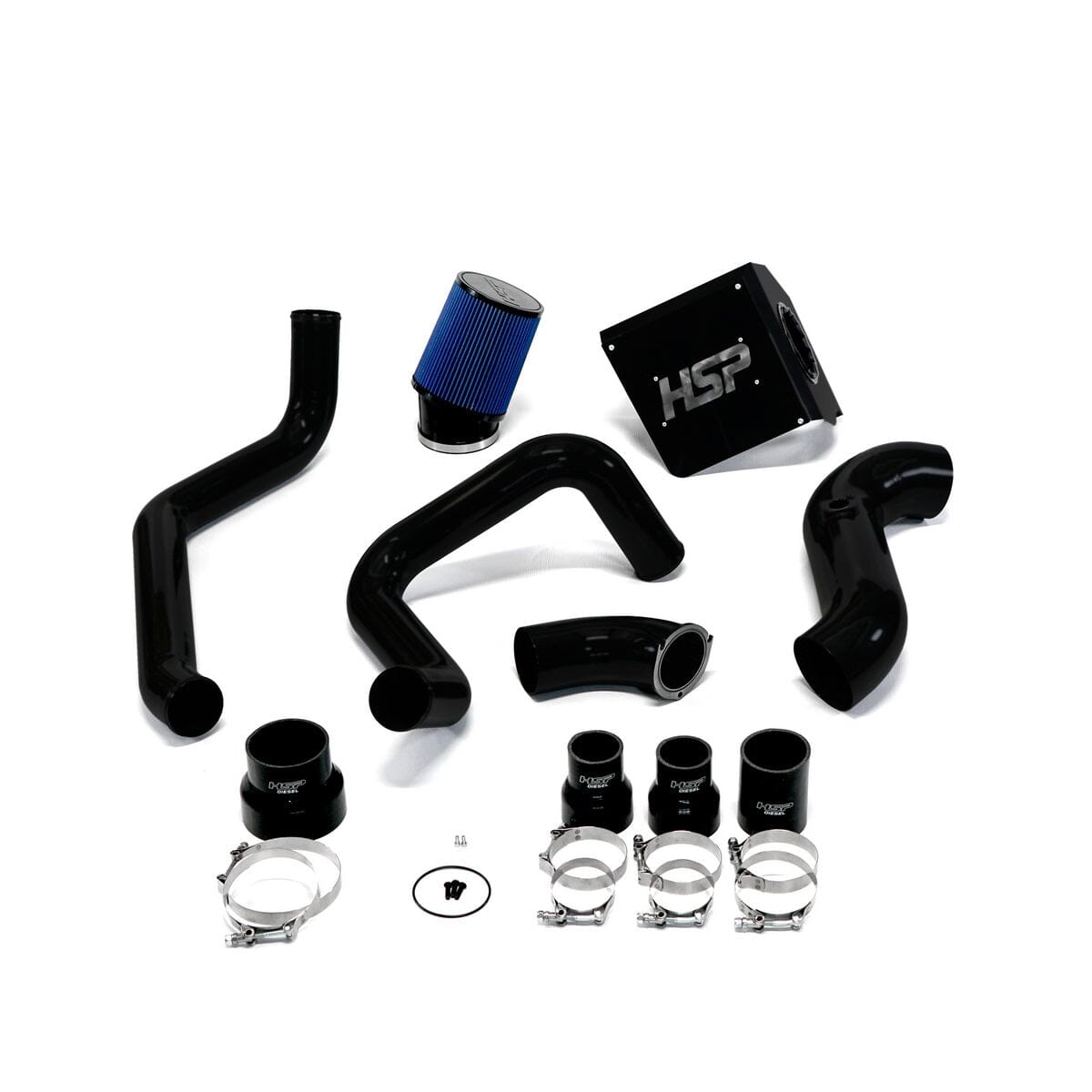

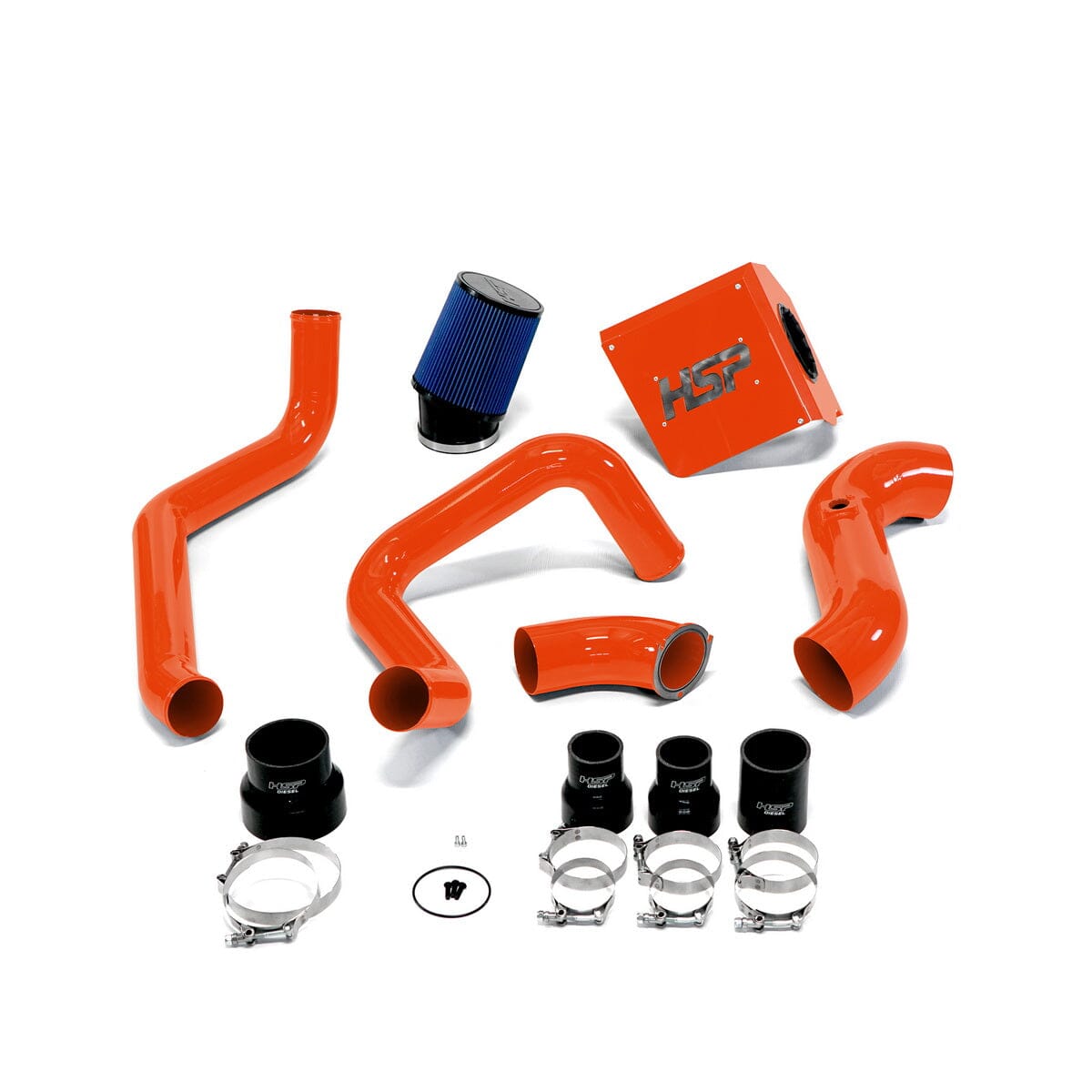

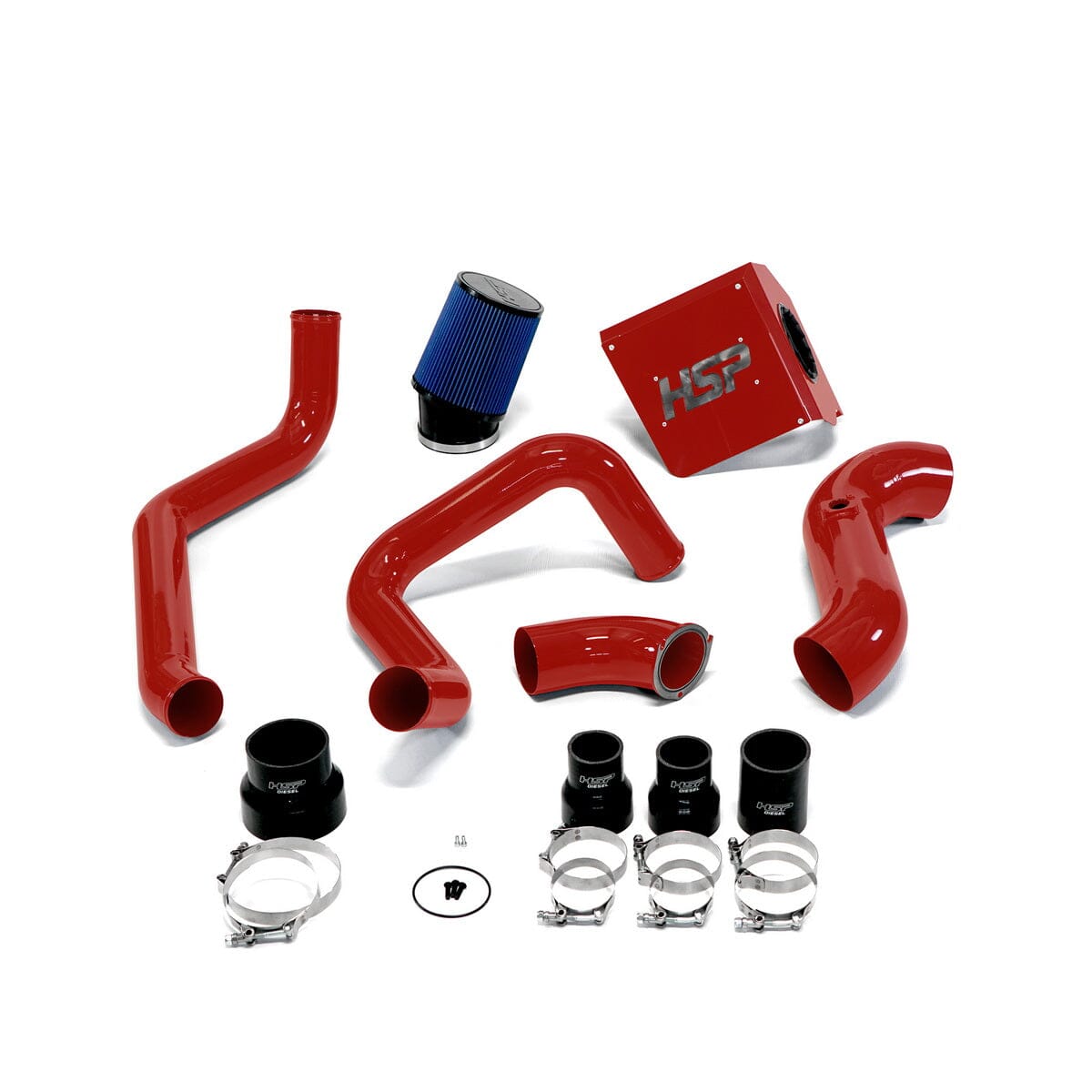

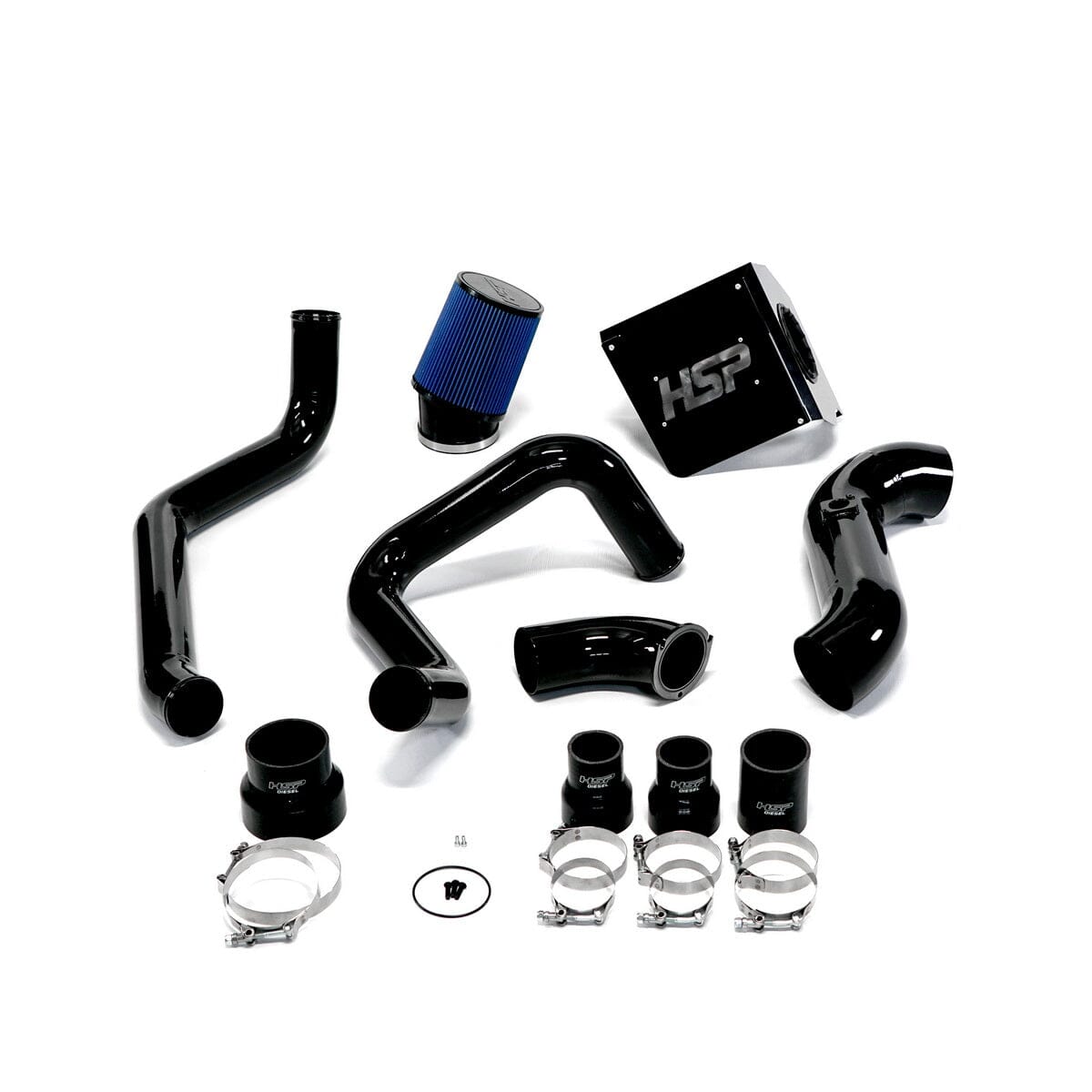

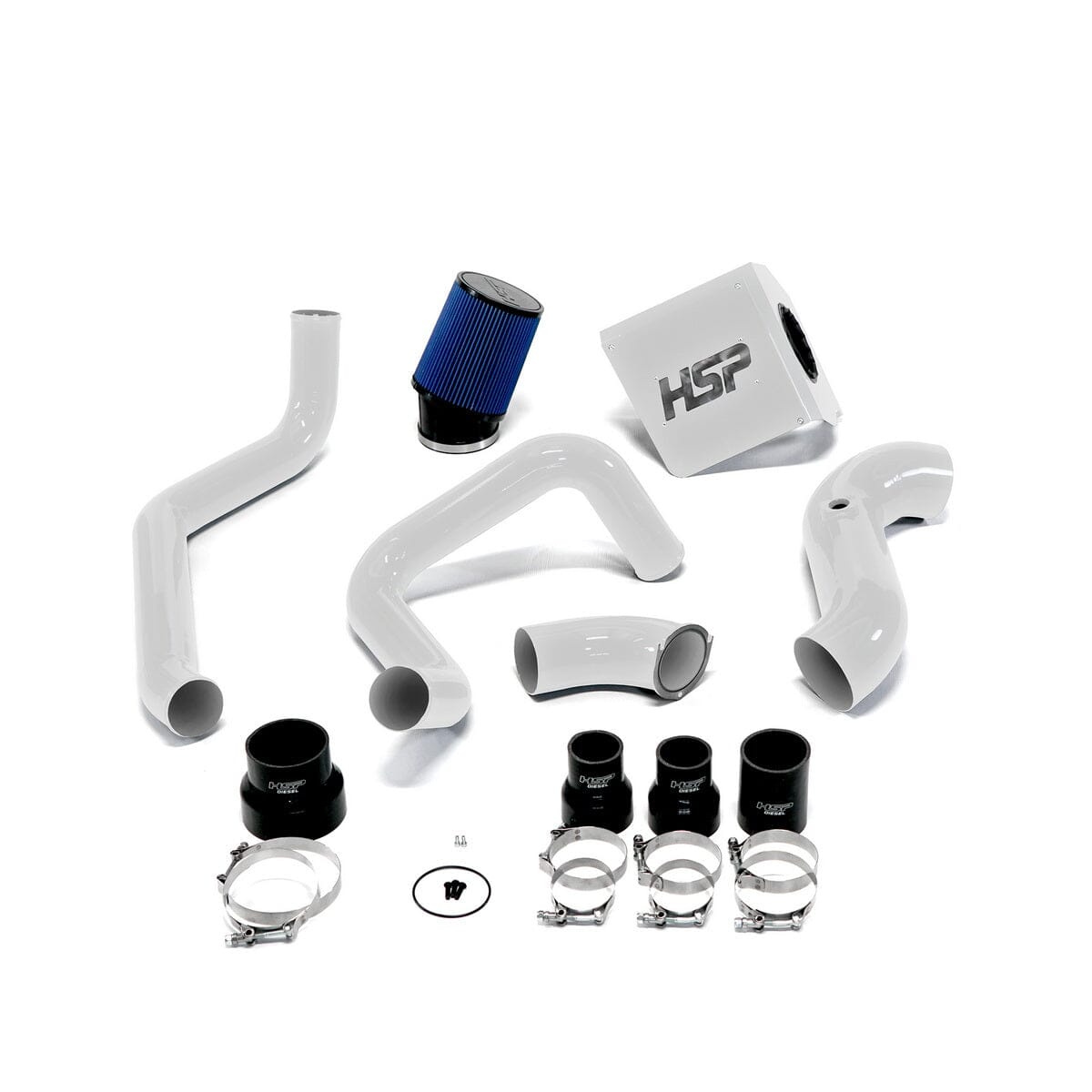

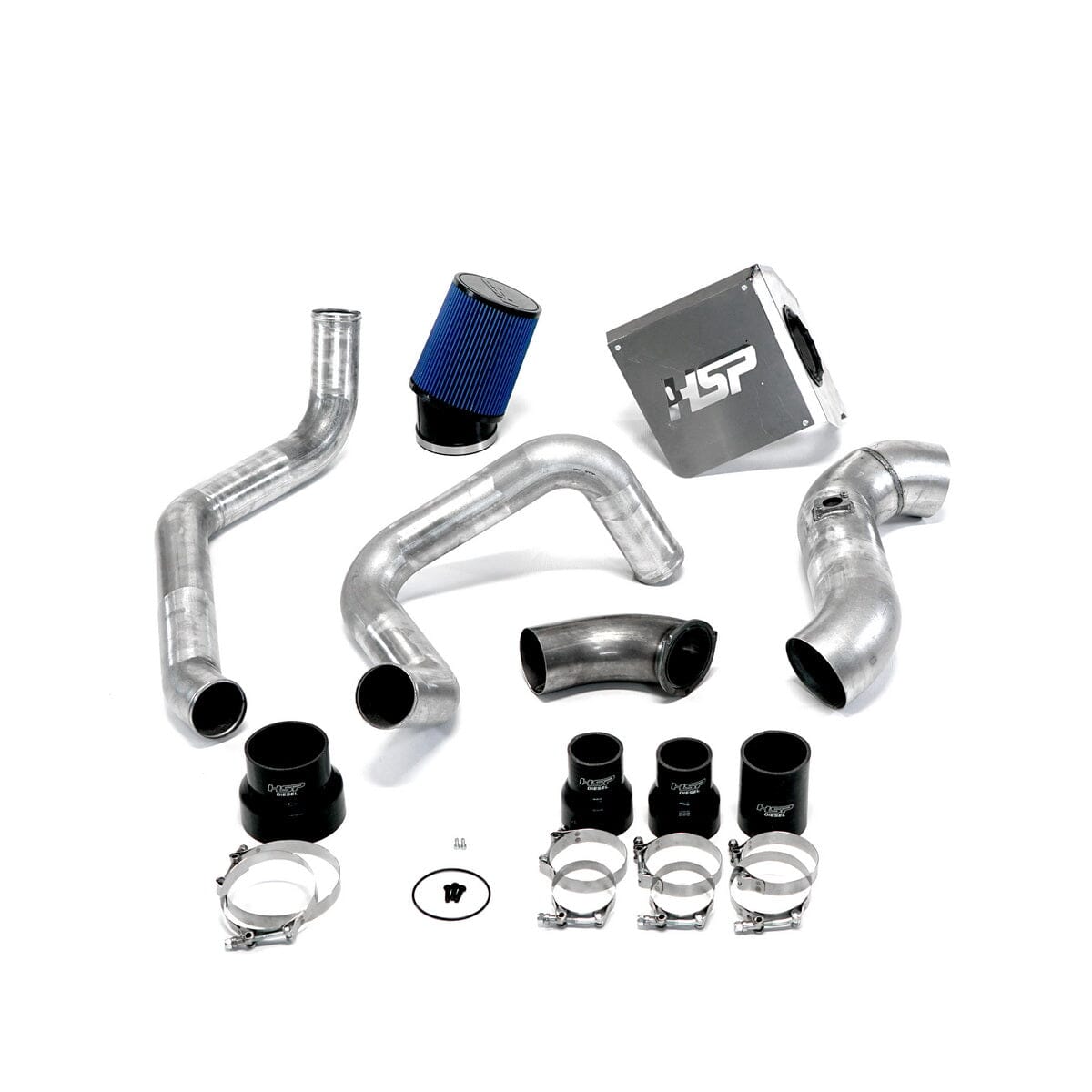

What comes in the Max Air Flow Bundle?

  • (1) Hotside Tube
  • (1) Factory Style Coldside Tube
  • (1) Cold Air Intake
  • (1) Max Flow Turbo Inlet Horn
  • (1) 3 Inch 4 Inch Straight Boot
  • (4) 3 Inch T-bolt Clamps
  • (1) 2.25 Inch - 3 Inch Reducer Boot
  • (1) 2.25 Inch T-bolt Clamp
  • (1) 2.25 Inch - 3 Inch Reducer Boot
  • (1) 2.25 Inch T-bolt Clamp
  • (2) M4x.7x10mm Bolt
  • (3) 10-32 x 3/8 Inch Button Head Screws
  • (4) 1/8 Inch Aluminum Rivet
  • (1) 3.5 Inch - 4.5 Inch Reducer Boot
  • (1) 3.5 Inch T-Bolt Clamp
  • (1) 4.5 Inch T-Bolt Clamp
  • (1) 4.5 Inch Filter
  • (3) M6x1.0x20mm Button Head Screws
  • (1) Turbo Inlet O-Ring
  • 16 Inch of Trim Seal


What Does the Max Air Flow Bundle fit?

  • LB7: 03-04 VIN Code 1

  • How do people know the VIN code?

    Engine code is dictated by the 8th character of the VIN number. The 10th character is the year of the truck.


    Overview

    • Color options to clean up the engine bay
    • More airflow
    • Cleaner airflow
    • Less turbulence
    • Better sounding engine
    • High strength silicone boots
    • Dyno-proven power increase
    • Bundle kit for everything all in one place


    Our Warranty

    HSP No BS Limited Lifetime Warranty

    At HSP we believe in our products and we stand firmly behind every single one that leaves our facility. For years we have taken care of almost everything and anything that our customers had issues with, but we didn't have a set in stone warranty. We have always gone above and beyond for our customers which set us apart from the rest. We will continue that same standard, but now we are taking things to the next level.
