HSP Max Air Flow Bundle (2004.5-2005 Chevrolet / GMC)
HSP Max Air Flow Bundle (2004.5-2005 Chevrolet / GMC)
HSP Diesel
SKU:283-HSP-W
The 283-HSP or also known as the HSP Max Air Flow Bundle for the LLY Duramax equipped 2004.5 and 2005 Chevrolet and GMC trucks. The Max Air Flow Bundle for the LLY is a great kit that has just about everything we make for the LLY Duramax trucks.
What is the HSP Max Air Flow Bundle for the LLY?
The HSP Max Air Flow Bundle is a kit that is made for the person who is looking to take their truck to the next level right off the bat. Equipped with almost everything we make for the LLY Duramax trucks the HSP Max Air Flow Bundle is made to help you make some serious increases over the stock application.
Tell us about the Cold Air Intake that comes in the HSP Max Air Flow Bundle
The Cold Air Intake inside the HSP Max Air Flow Bundle is a 4.5 Inch LBZ style intake that is made to bring in the most amount of air that can flow through a filter. Paired with HSP Diesel's signature heat shield box we are able to eliminate the unwanted hot air from getting into the intake. We do this because our testing shows that every 1-degree increase in intake air temperatures results in a 3 horsepower loss.
Tell us about the Intake Mouthpiece that comes in the HSP Max Air Flow Bundle
The Intake Mouthpiece that is in the HSP Max Air Flow Bundle is a part that makes all the difference when installed. Our Intake Mouthpiece gives you the ability to reroute your factory PCV system and remove the factory resonator box, eliminating unwanted engine oil gumming up the turbo and intake system (PCV re-route sold separately see 003-1-HSP). With hand-made transitions that give us the most efficient flow, you can be sure that when combined with the rest of this kit especially our Cold Air Intake the Intake Mouthpiece can show you the power you didn't know was there.
Tell us about the Hot Side Intercooler Tube in the HSP Max Air Flow Bundle
As we know the Hot Side Intercooler Tube on these trucks is prone to failure, this is mostly due to a tight clearance with a power steering line. The HSP Diesel Hot Side Intercooler Tube not Only fixes that problem but increases the size of the Intercooler Pipe at the same time. We do this by changing the routing of the tube to go directly to the intercooler. The HSP Diesel Hotside Intercooler Pipe is also 3 Inch in diameter and mandrel-bent to maximize flow and reduce turbulence inside the charge air system.
Tell us about the Max Flow Bridge and Cold Side Tube in the HSP Max Air Flow Bundle
Like the majority of the HSP Diesel line, the Max Flow Bridge and Cold Side Tube are increased in not Only size but also in the overall design. Our Max Flow Bridge is a two-piece design that is made to make installation easier but also eliminates common boost leak points. With a 3 Inch design we were able to also increase the flow, this matches the Cold Side Tube inside the HSP Max Air Flow Bundle. We do this to bring even flow through the entire system and increase the truck to its maximum potential.
Tell us about the 2 Inch Replacement Passenger Side Up-Pipe in the HSP Max Air Flow Bundle
The 2 Inch Replacement Passenger Side Up-Pipe is made of heavy wall 304 stainless steel tubing and paired with heavy-duty sleeve bellows. This means that the up-pipe will have less likely hood of failure and will hold up to abuse much longer than other replacements out there. The HSP Up-Pipes also flow much better than the factory due to a more even design inside the up-pipe.

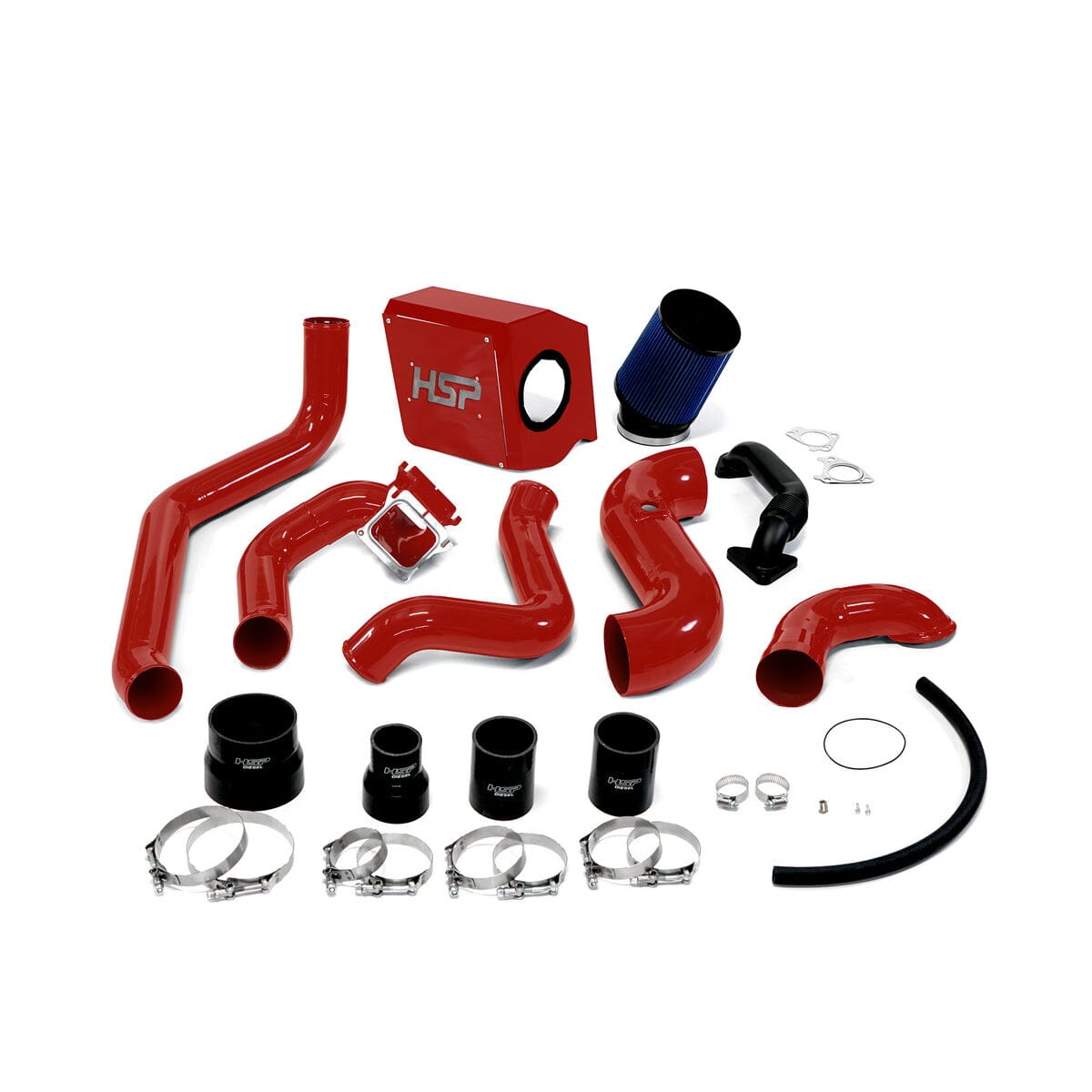

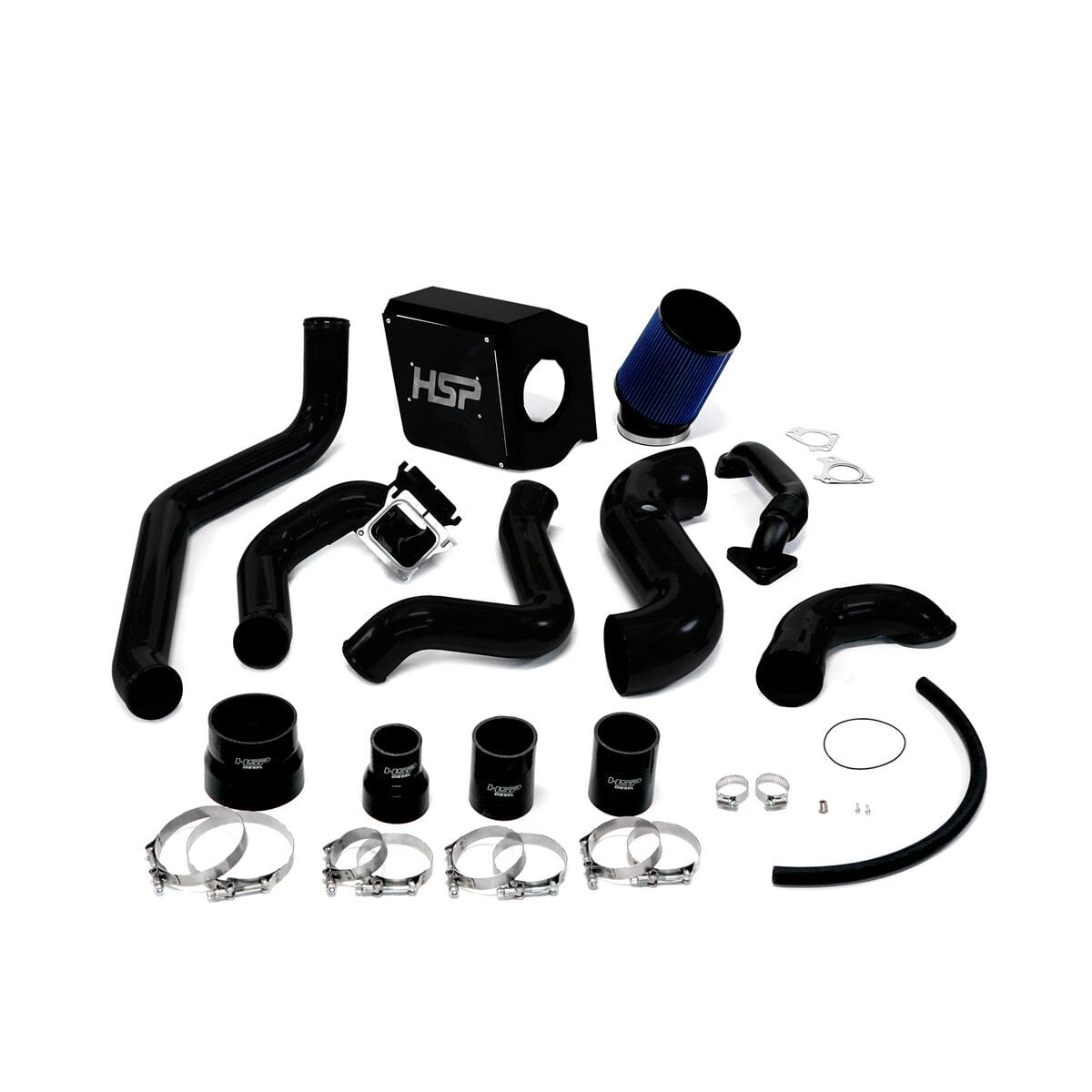

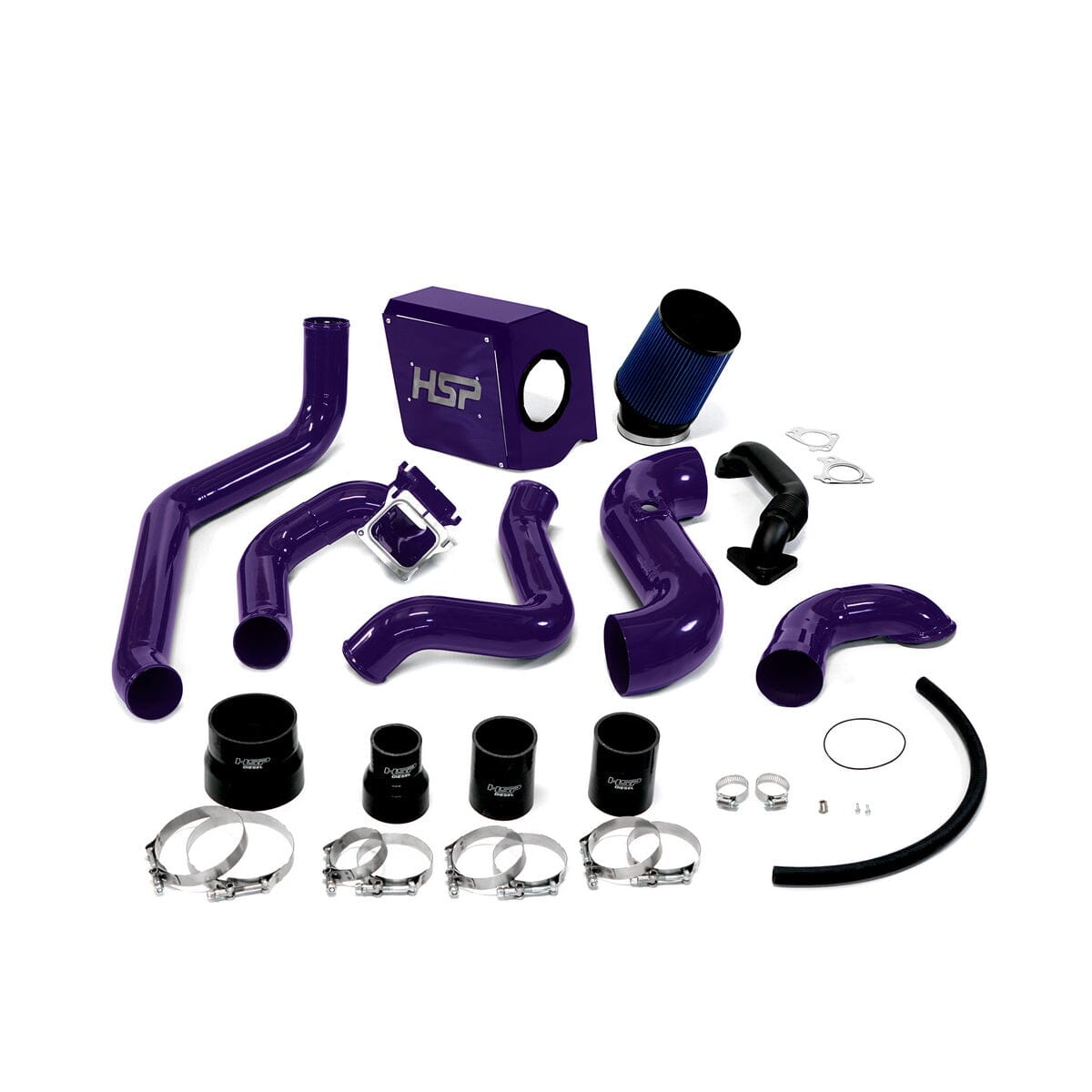

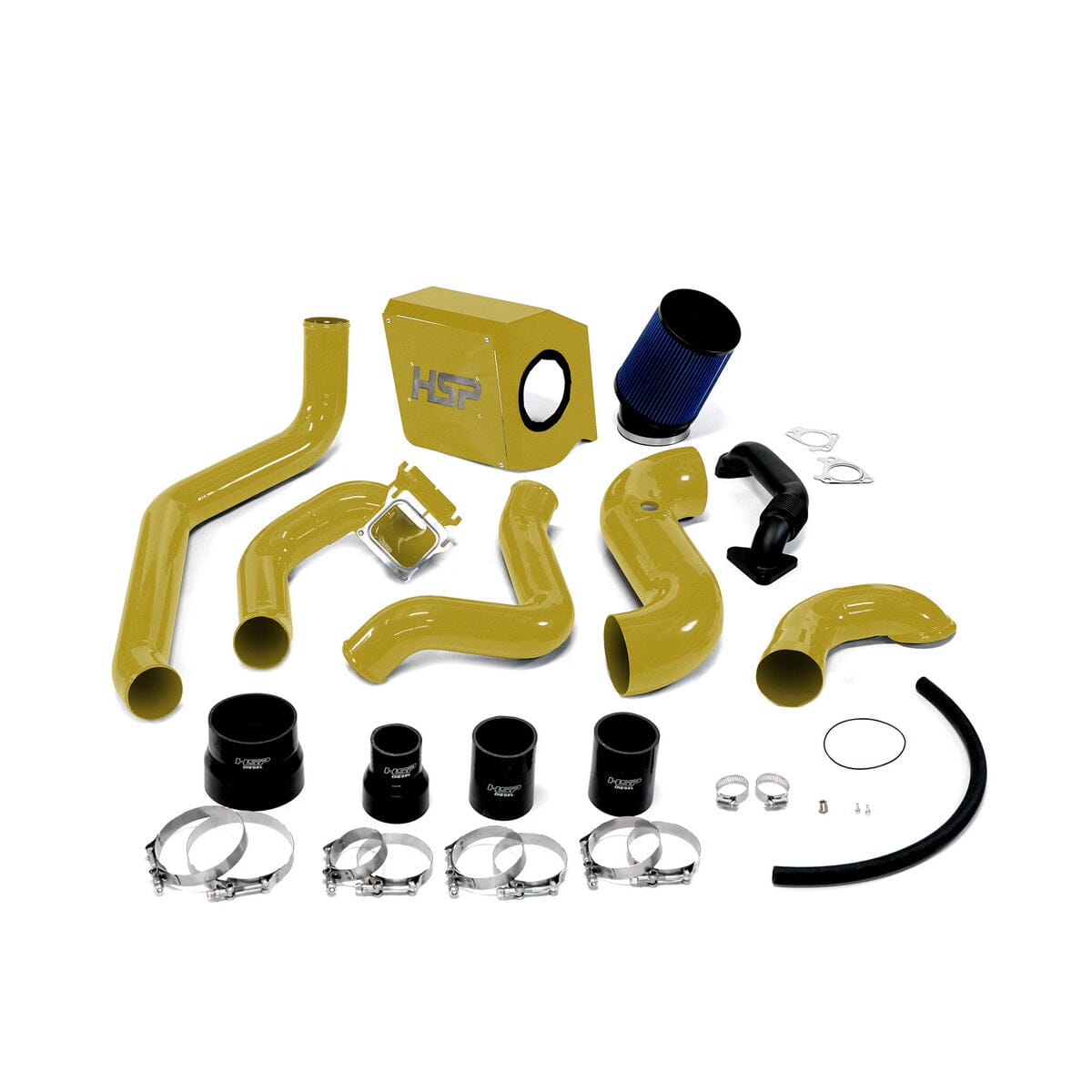

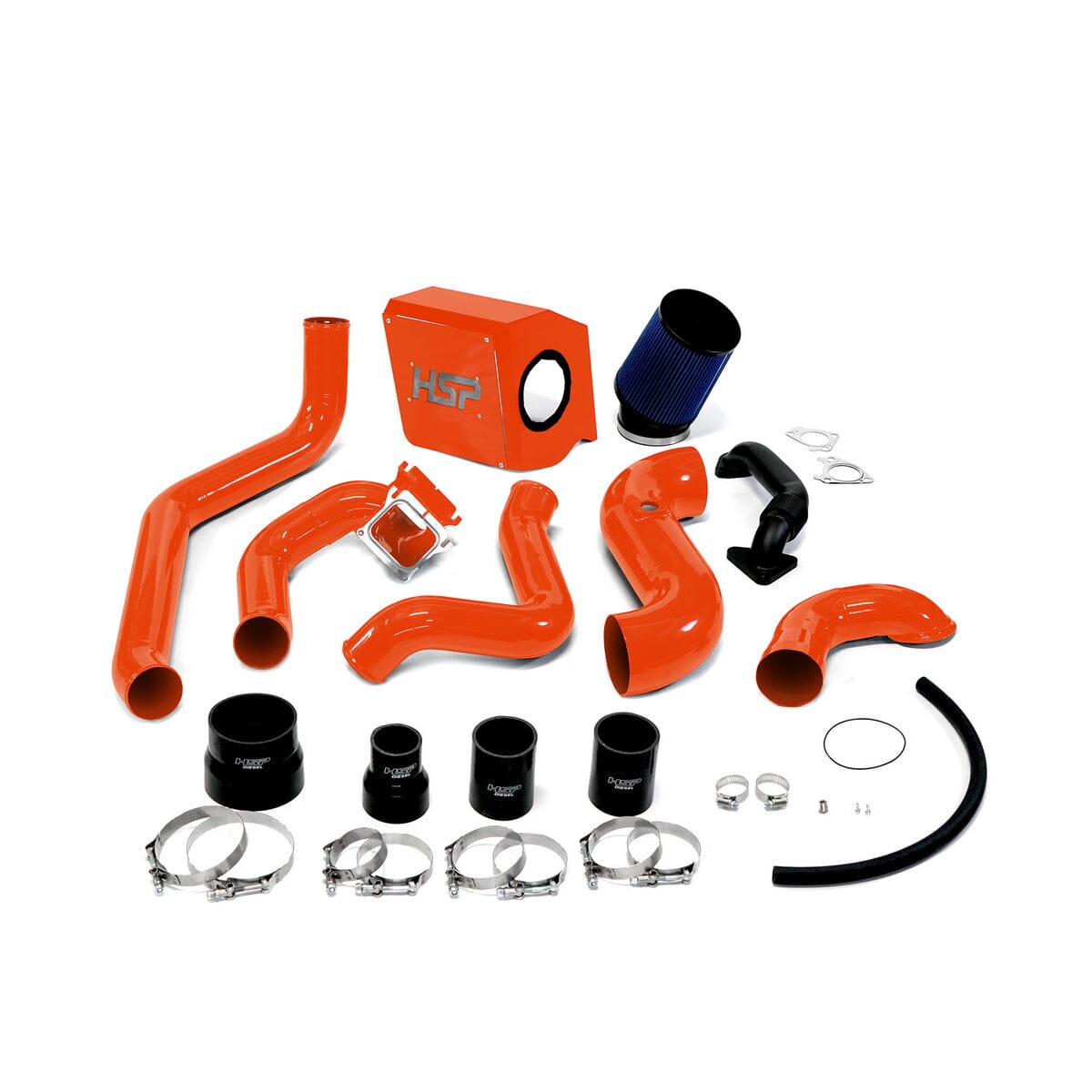

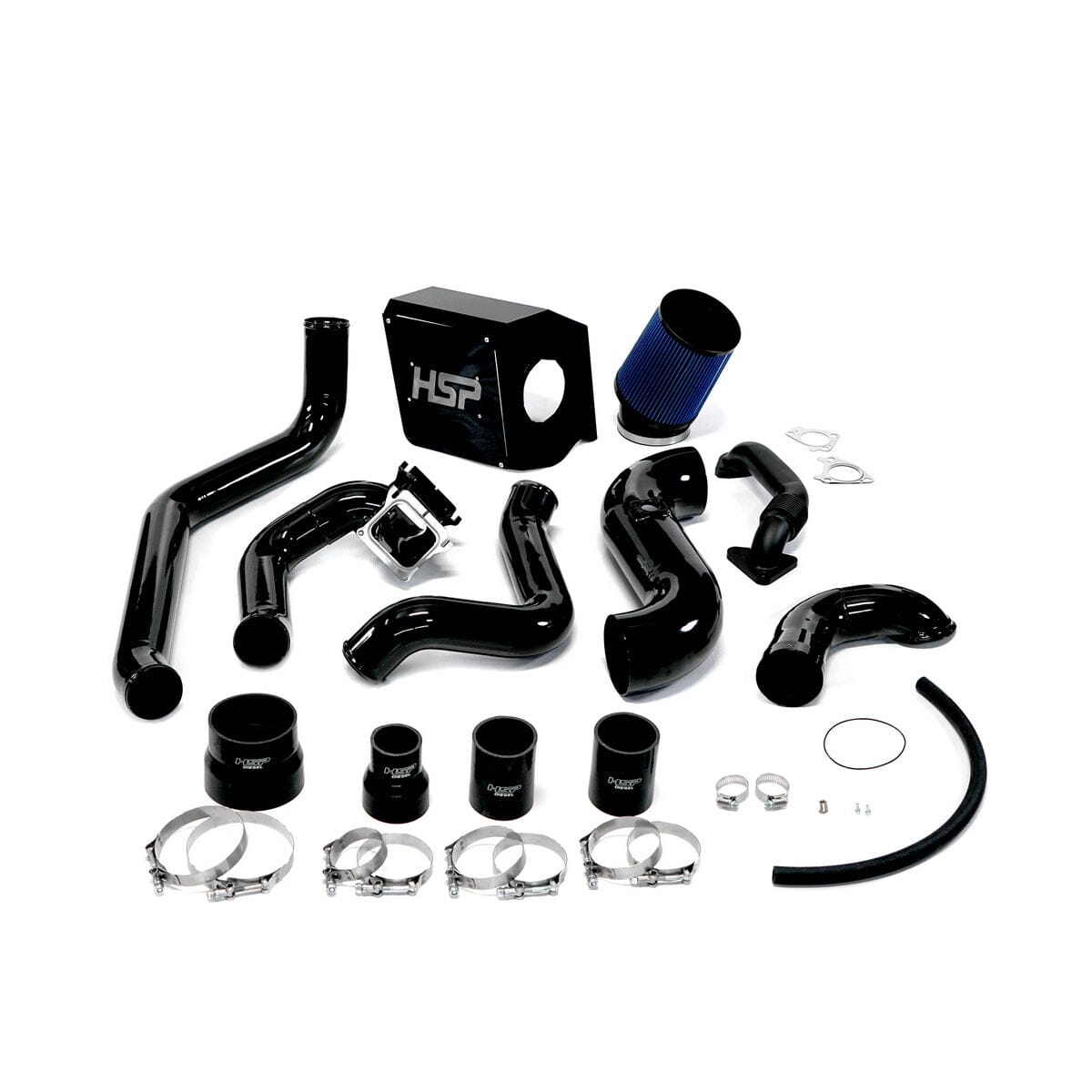

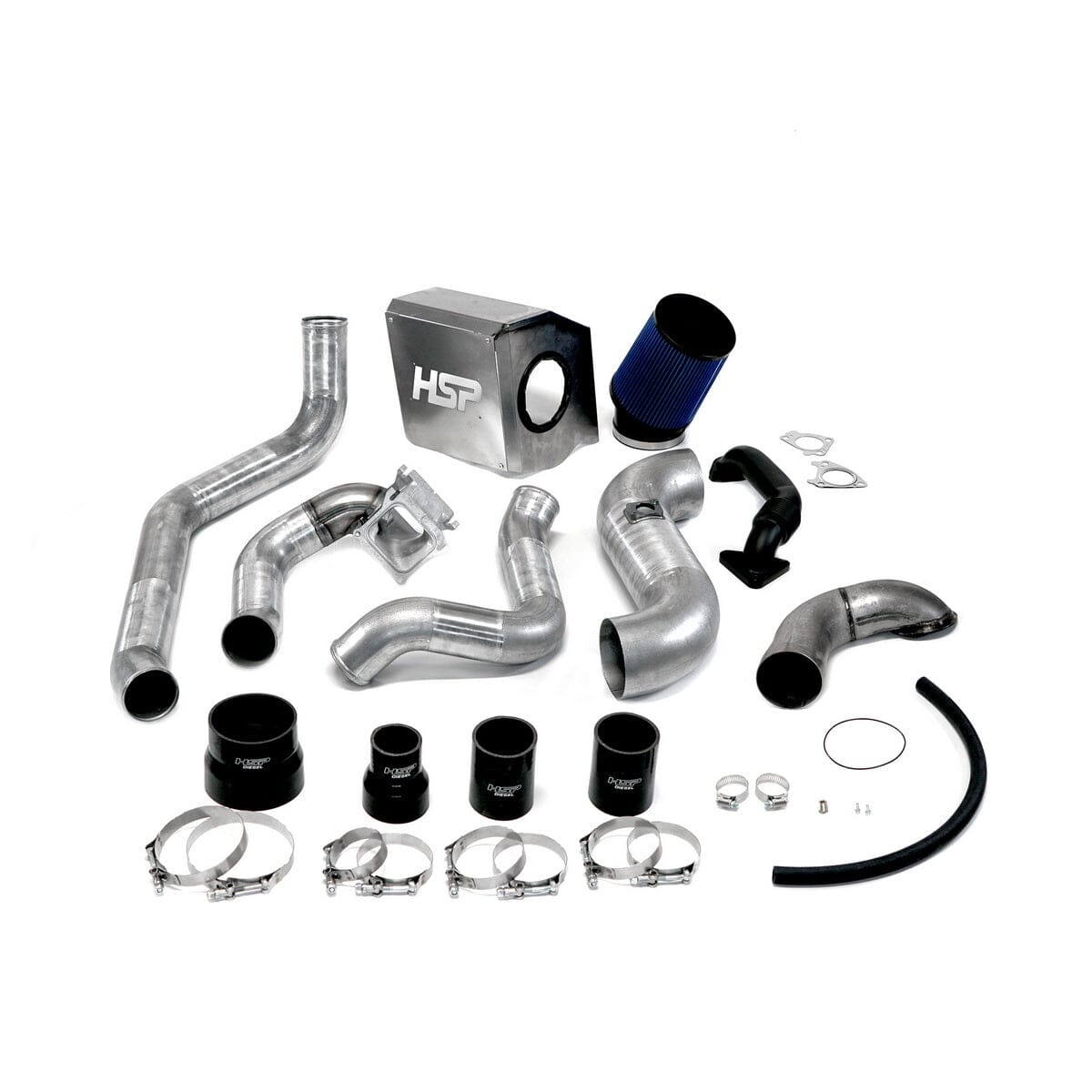

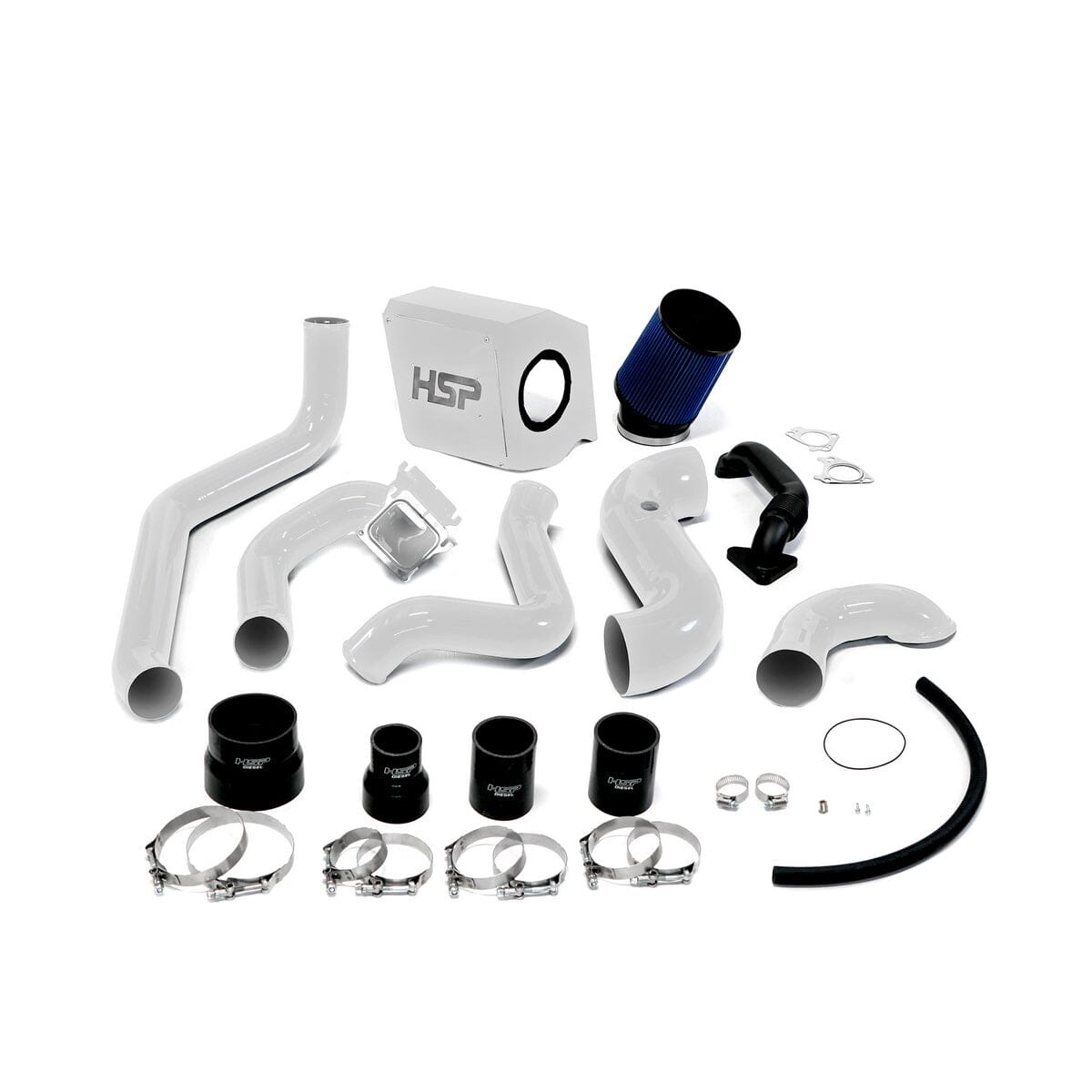

What comes with the HSP Max Air Flow Bundle?
- (1) 3 Inch Mandrel-bent hot side tube
- (1) 3 Inch Mandrel-bent cold side tube
- (1) 3 Inch Max Flow Bridge
- (1) Cold Air Intake
- (1) 2.5 Inch Passenger side up-pipe
- (1) Intake mouth piece
- (2) 3 Inch x 4 Inch Straight boot
- (5) 3 Inch T-bolt Clamps
- (1) 2.25 Inch - 3 Inch Reducer Boot
- (1) 2.25 Inch T-bolt Clamp
- (1) Bridge Neck O-Ring
- (2) Bridge Neck Stud
- (2) Bridge Neck 12-point Nut
- 2' of Heater hose
- (2) 5/8 Inch worm Gear Clamp
- (1) 1/8 Inch NPT Brass Plug
- (2) M4x.7x10mm Bolt
- (3) 10-32 x 3/8 Inch Button Head Screw
- (4) 1/8 Inch Aluminum Rivet
- (1) 4 Inch - 4.5 Inch Reducer Boot
- (1) 4 Inch T-Bolt Clamp
- (1) 4.5 Inch T-Bolt Clamp
- (1) 4.5 Inch Filter
- 16 Inch of Trim seal
- (1) Turbo Inlet O-Ring
- (1) Up-Pipe Gasket (Turbo Side)
- (1) Up-Pipe Gasket (Manifold Side)
What Does The HSP Max Air Flow Bundle Fit?
- LLY: 04.5-05 VIN Code 2
How do people know the VIN code?
Engine code is dictated by the 8th character of the VIN number. The 10th character is the year of the truck.
Overview
- Increased performance
- High flowing cold air intake
- 3 Inch Diameter hot and cold side tubes
- High strength 5 layer silicone boots
- Powder Coat options for a clean look under the hood
- Bundle kit gives you more for your money
Our Warranty
HSP No BS Limited Lifetime Warranty
At HSP we believe in our products and we stand firmly behind every single one that leaves our facility. For years we have taken care of almost everything and anything that our customers had issues with, but we didn't have a set in stone warranty. We have always gone above and beyond for our customers which set us apart from the rest. We will continue that same standard, but now we are taking things to the next level.
