HSP Intercooler Charge Pipe Bundle (2011-2016 Chevrolet / GMC)
HSP Intercooler Charge Pipe Bundle (2011-2016 Chevrolet / GMC)
HSP Diesel
SKU:582-HSP-W
- This product may ship directly from the manufacturer.
The 582-HSP is best known as the Intercooler Charge Pipe Bundle for LML Duramax equipped 2011-2016 Chevrolet and GMC trucks. This bundle for the LML Duramax is a great package for anyone looking to increase their performance and efficiency.
What is the Intercooler Charge Pipe Bundle for the LML?
The LML Duramax is an extremely capable system. With power being left on the table often due to failures and due to factory parts that just can't flow the necessary air. HSP Diesel saw this and quickly knew what needed to be done and with that, the Intercooler Charge Pipe Bundle for the LML was created.
Tell us about the Hot Side Tube that comes in the Intercooler Charge Pipe Bundle
The factory Hot Side Tube often fails due to its two-piece design. The team at HSP Diesel saw this and redesigned the Hot Side Pipe to be a single-piece design. Also using high-strength silicone boots at both ends you are able to have the peace of mind that the common failure point is removed. Using mandrel bends the Hot Side Tube is increased in size to 3 Inch to increase flow up to 40 Percent over the factory style.
Tell us about the Cold Side Tube that comes in the Intercooler Charge Pipe Bundle
The factory cold side that comes equipped on the LML Duramax is often a part that is overlooked. Many people worry about the often failing Hot Side tube but don't look twice at the cold side. We see this because while it is not as common to fail as the hotside we do often see that the LML Cold Side tube is restrictive to the charge air system. To fix this HSP Diesel increased the size of the Cold Side Pipe to 3 Inch also using mandrel bends the HSP Diesel cold side pipe reduces turbulence and increases flow. When paired with the rest of the parts in the Intercooler Charge Pipe Bundle the Cold Side Tube is a game-changer.
Tell us about the Max Flow Bridge that comes in the Intercooler Charge Pipe Bundle
The Max Flow Bridge inside the Intercooler Charge Pipe Bundle is the piece that ties the bundle together. The Max Flow Bridge makes massive changes in design over the factory part. With the two-piece construction for easier installation and virtually eliminating the possibility of a boost leak because of the O-ring seal in the middle, the Max Flow Bridge ties together the Intercooler Charge Pipe Bundle. Using flow matching on the bridge you will be able to know that reliability and an increase of airflow can happen simultaneously.
Tell us about the VGT Intake Mouthpiece that comes in the Intercooler Charge Pipe Bundle
The VGT Intake Mouthpiece is hand-made to give the best transitions and bends possible. HSP Diesel does this so the flow can not Only increase but also reduces the turbulence that is often found in the Mouth piece.

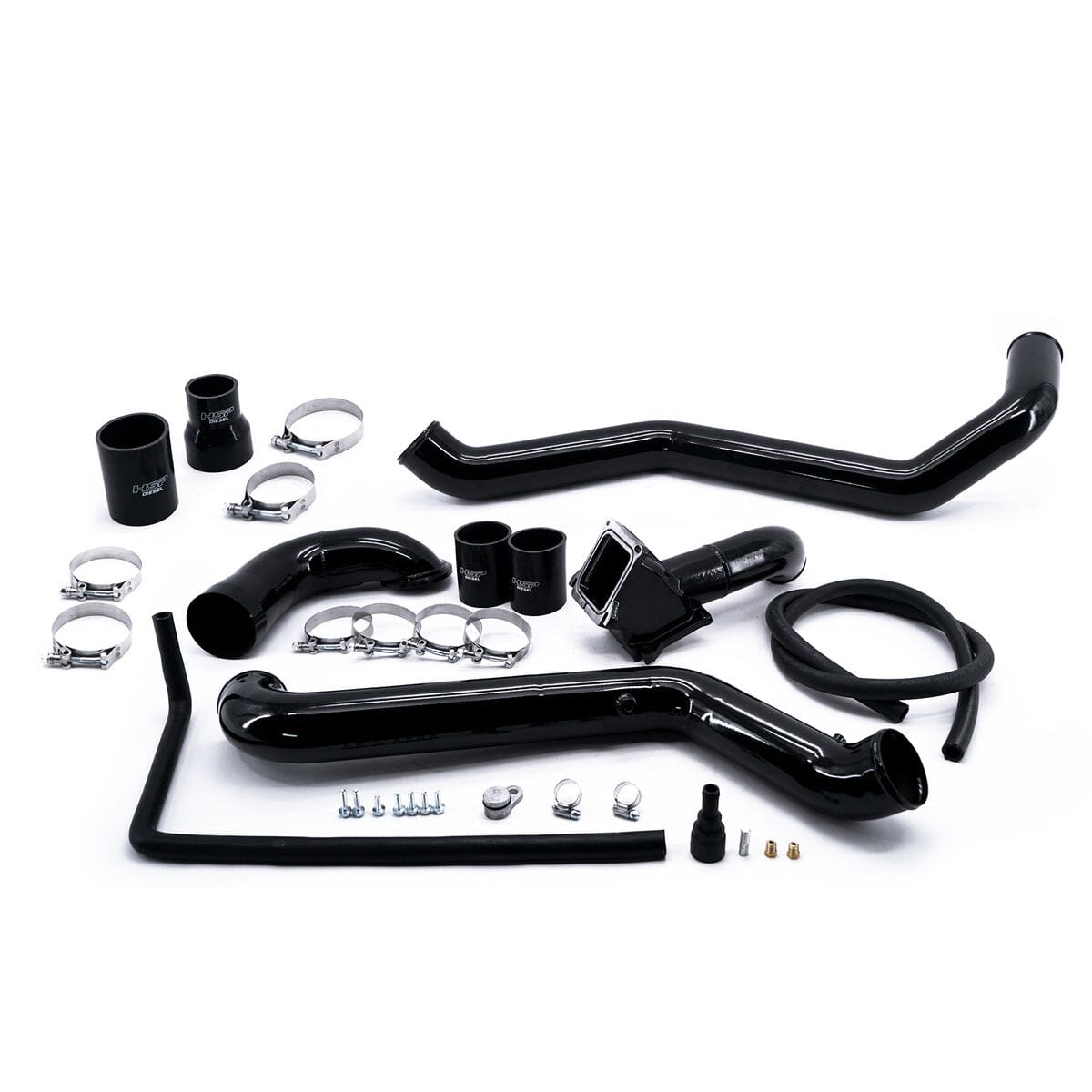

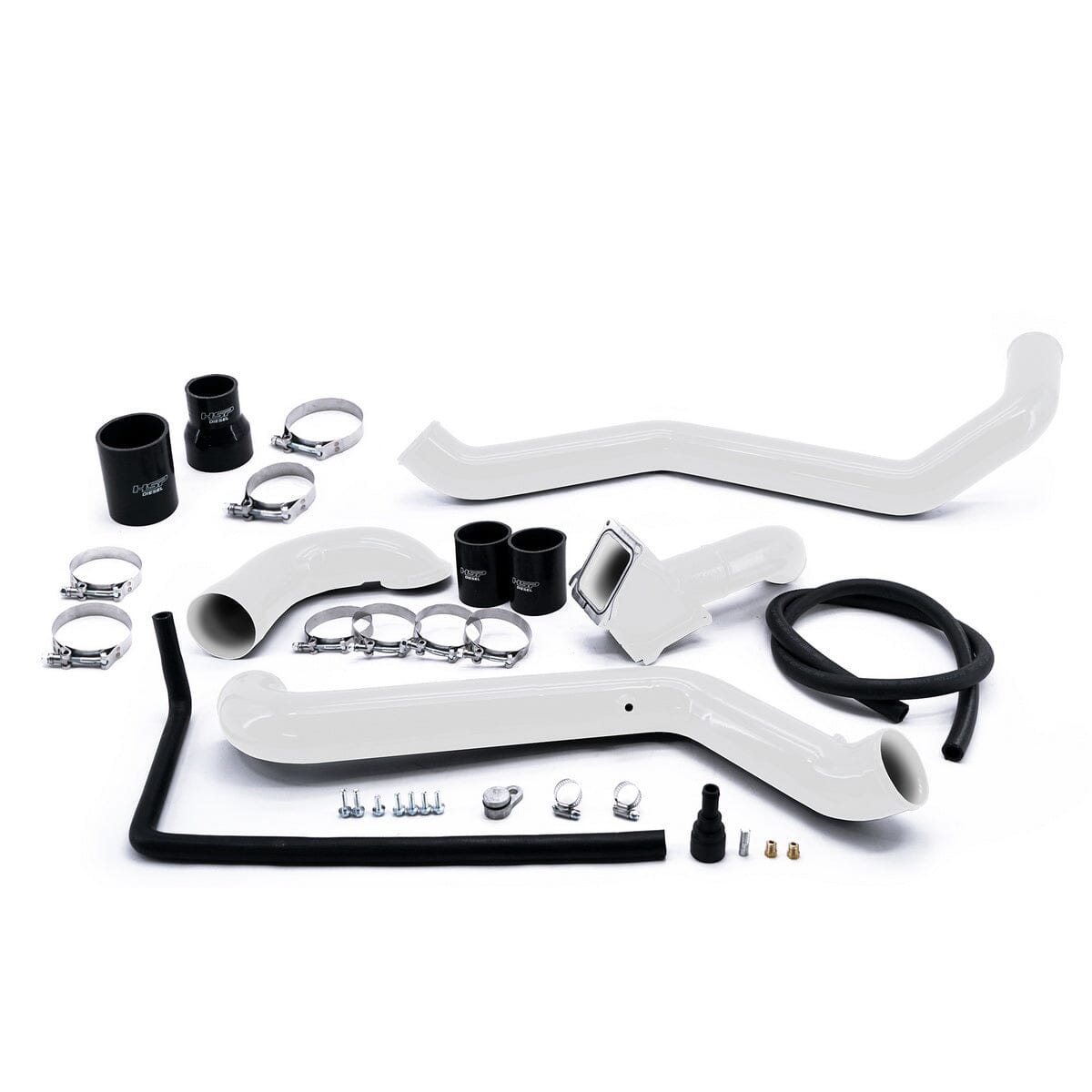

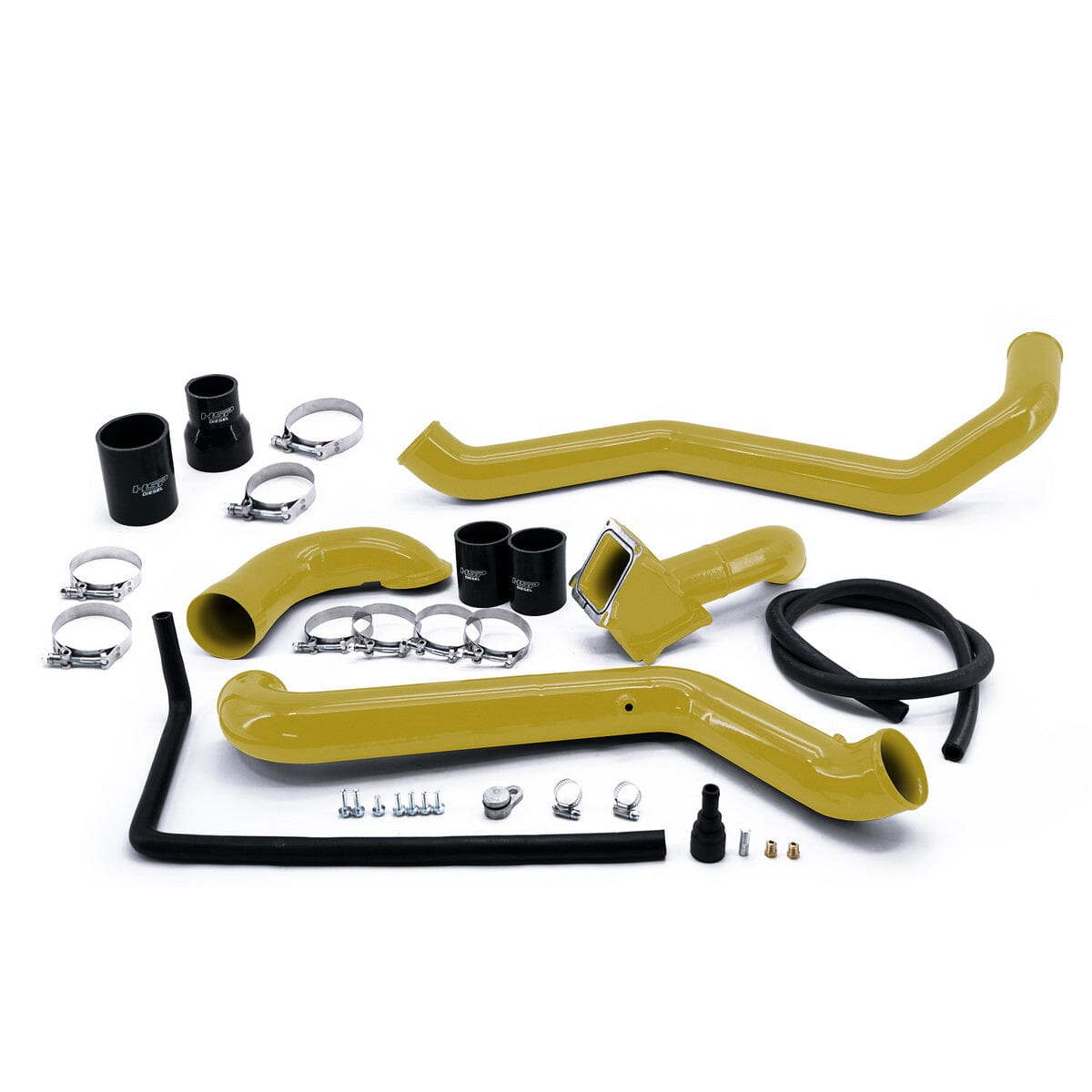

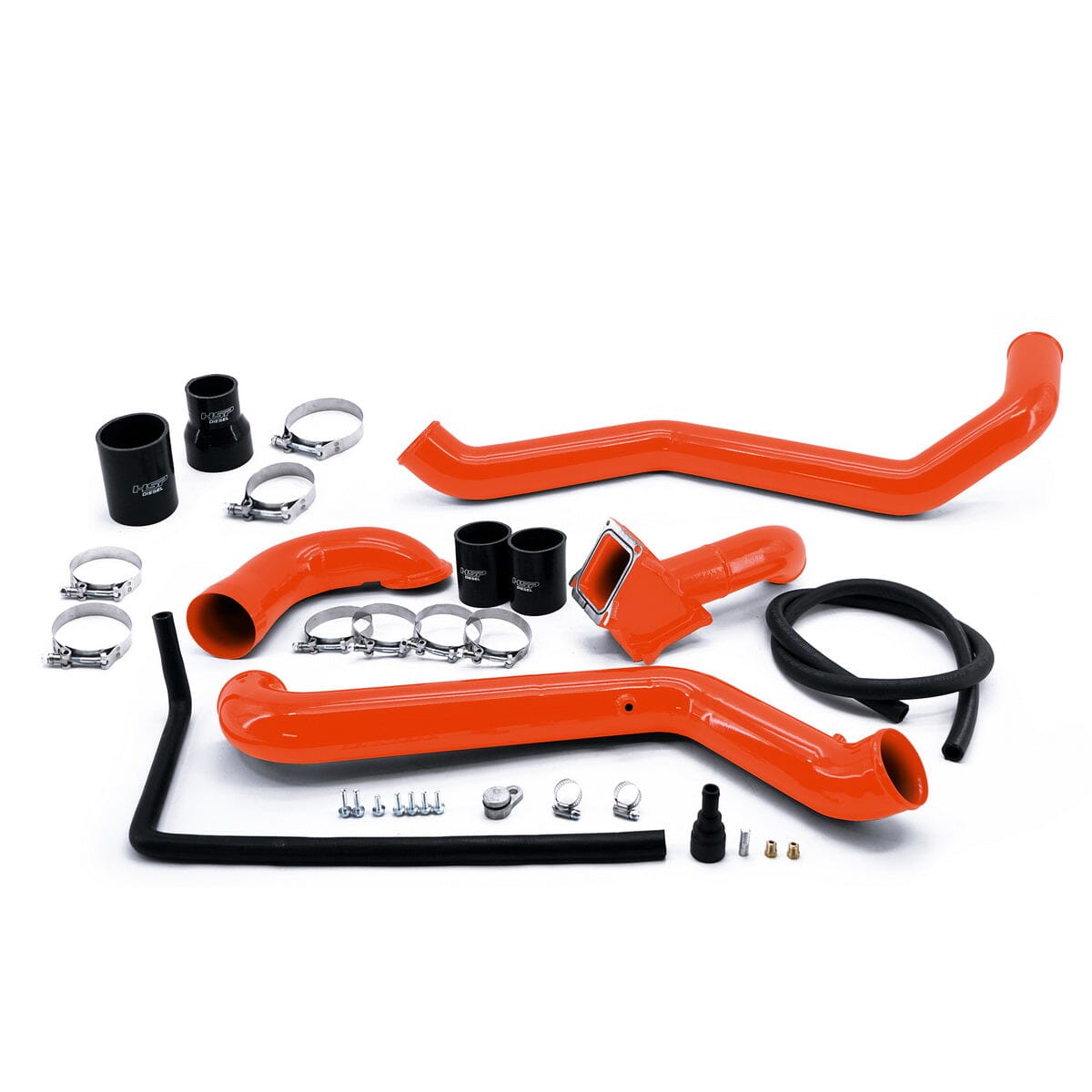

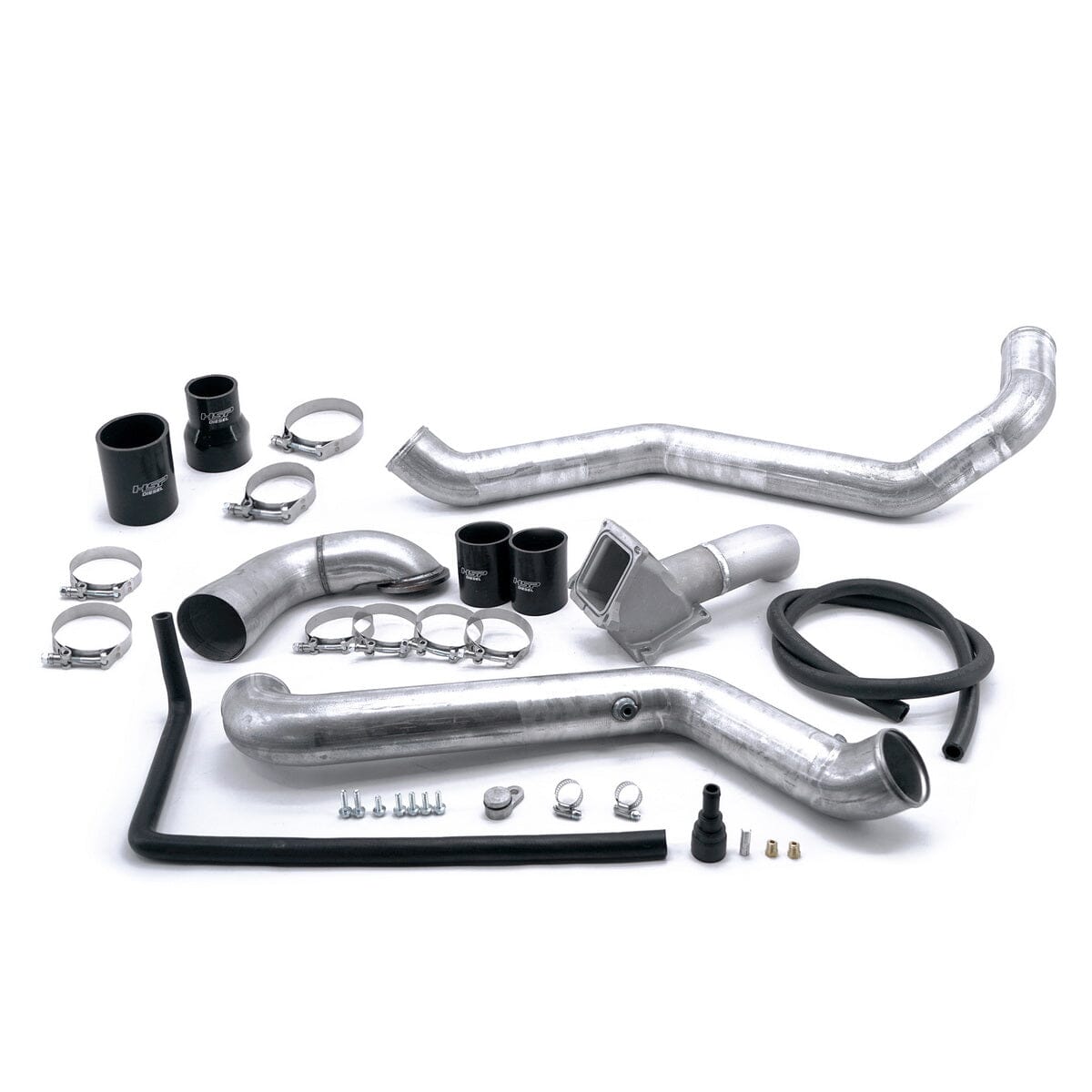

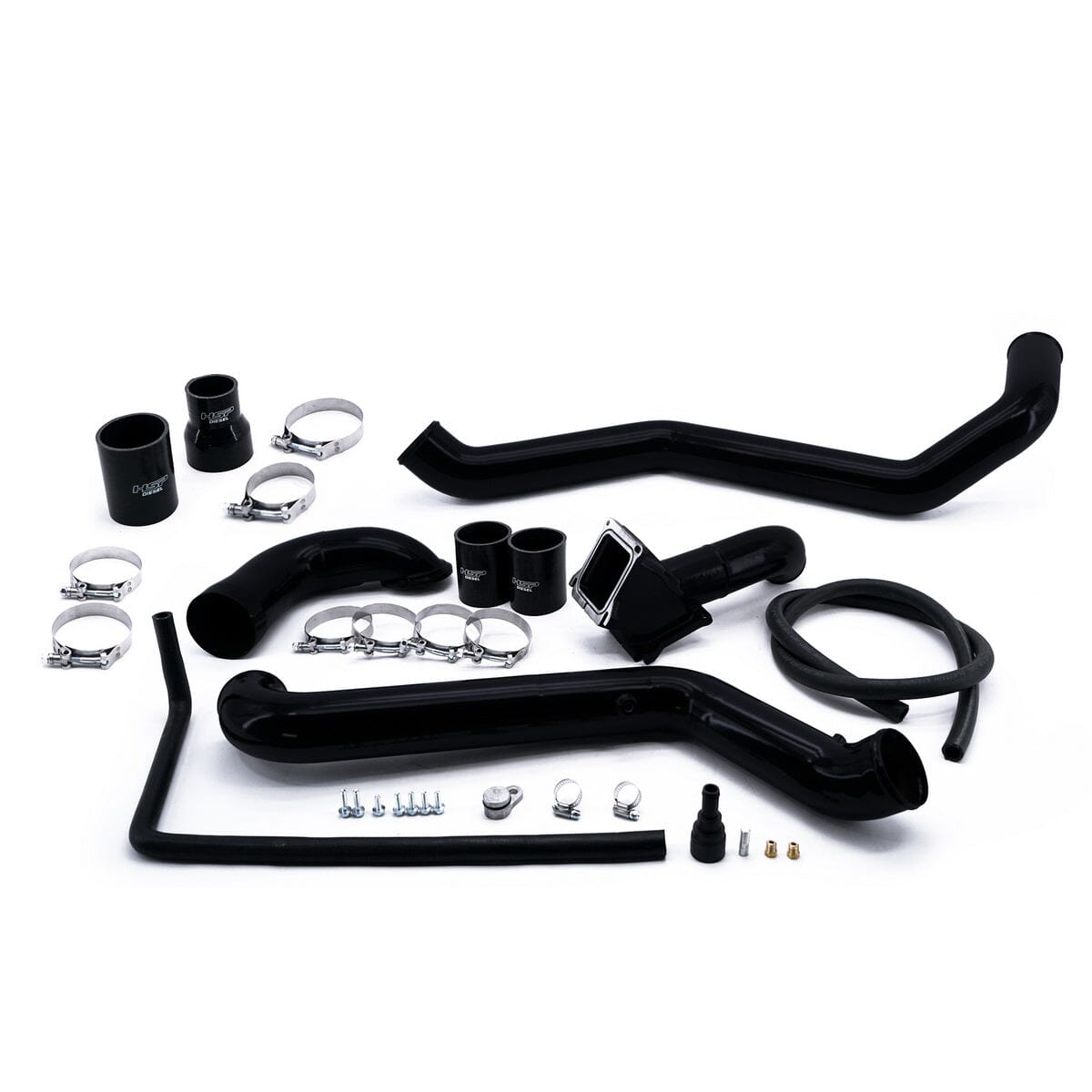

What comes with the Intercooler Charge Pipe Bundle
- (1) 3 Inch Mandrel-bent hot side pipe
- (1) 3 Inch Mandrel-bent cold side pipe
- (1) Max flow bridge
- (1) VGT Intake mouthpiece
- (3) 3 Inch x 4 Inch Straight boot
- (7) 3 Inch T-bolt clamp
- (1) 2.25 Inch - 3 Inch Reducer boot
- (1) 2.25 Inch t-bolt clamp
- (1) Duramax Pre-made Hose
- (1) M6x1.0x16mm Flange bolt
- (4) M6x1.0x20mm Flange Bolt
- (2) M6x1.0x25mm flange blot
- (1) 1/2 Inch Worm gear clamps
- (1) 5/8 Inch worm gear clamps
- (2) 1/8 Inch NPT Brass plug
- (1) Rear cover coolant plug
- (1) Coolant plug o-ring
- (1) 3/4 Inch to 5/8 Inch heater hose connector
- (1) 3/8 Inch coolant plug
What Does The Intercooler Charge Pipe Bundle Fit?
- LML: 11+ VIN Code 8
How do people know the VIN code?
Engine code is dictated by the 8th character of the VIN number. The 10th character is the year of the truck.
Overview
- Increased performance
- Single piece design fixes prone to failure two-piece factory part
- 3 Inch Diameter hot and cold side tubes
- No more crimped on boot
- Powder Coat options for a clean look under the hood
- Bundle kit gives you more for your money
