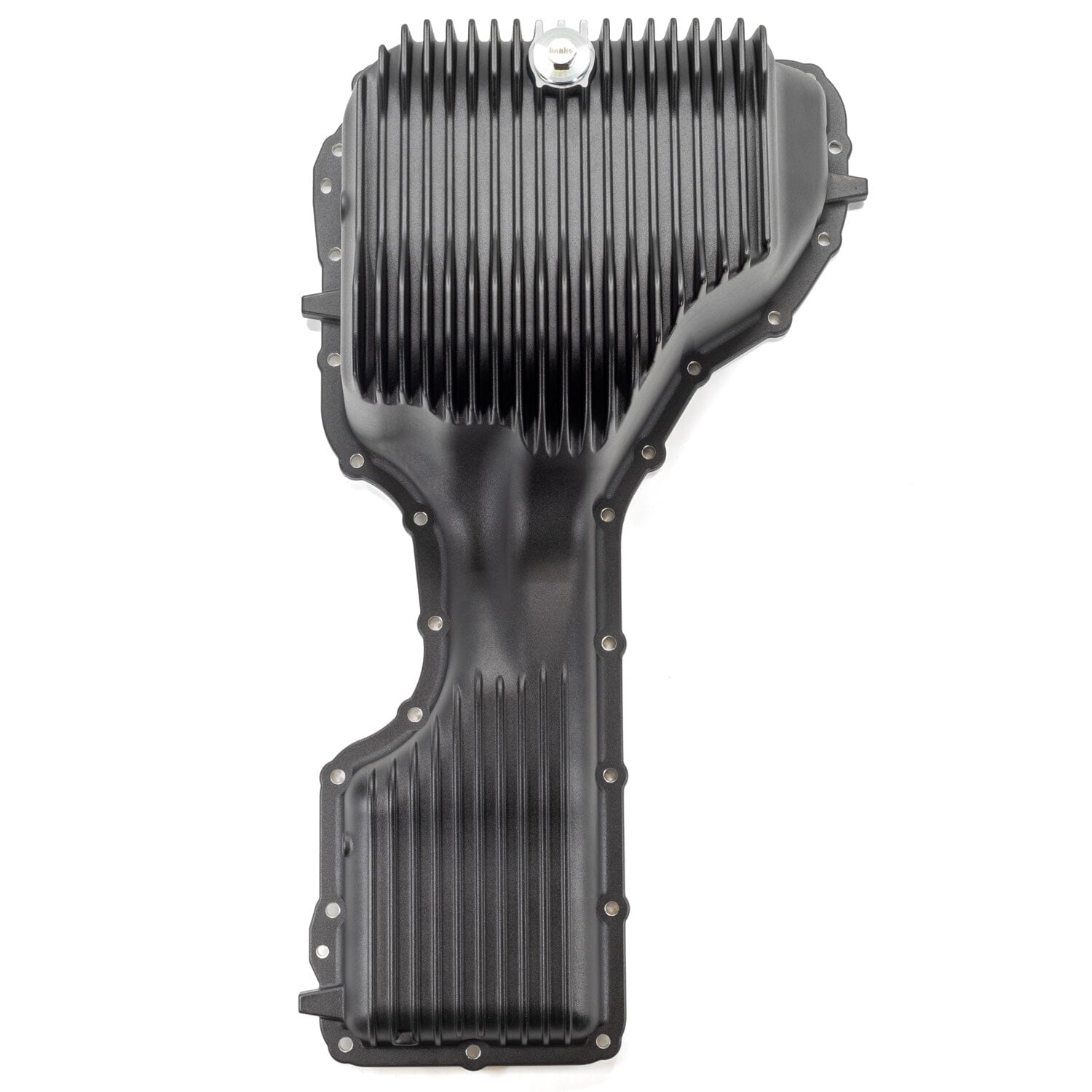

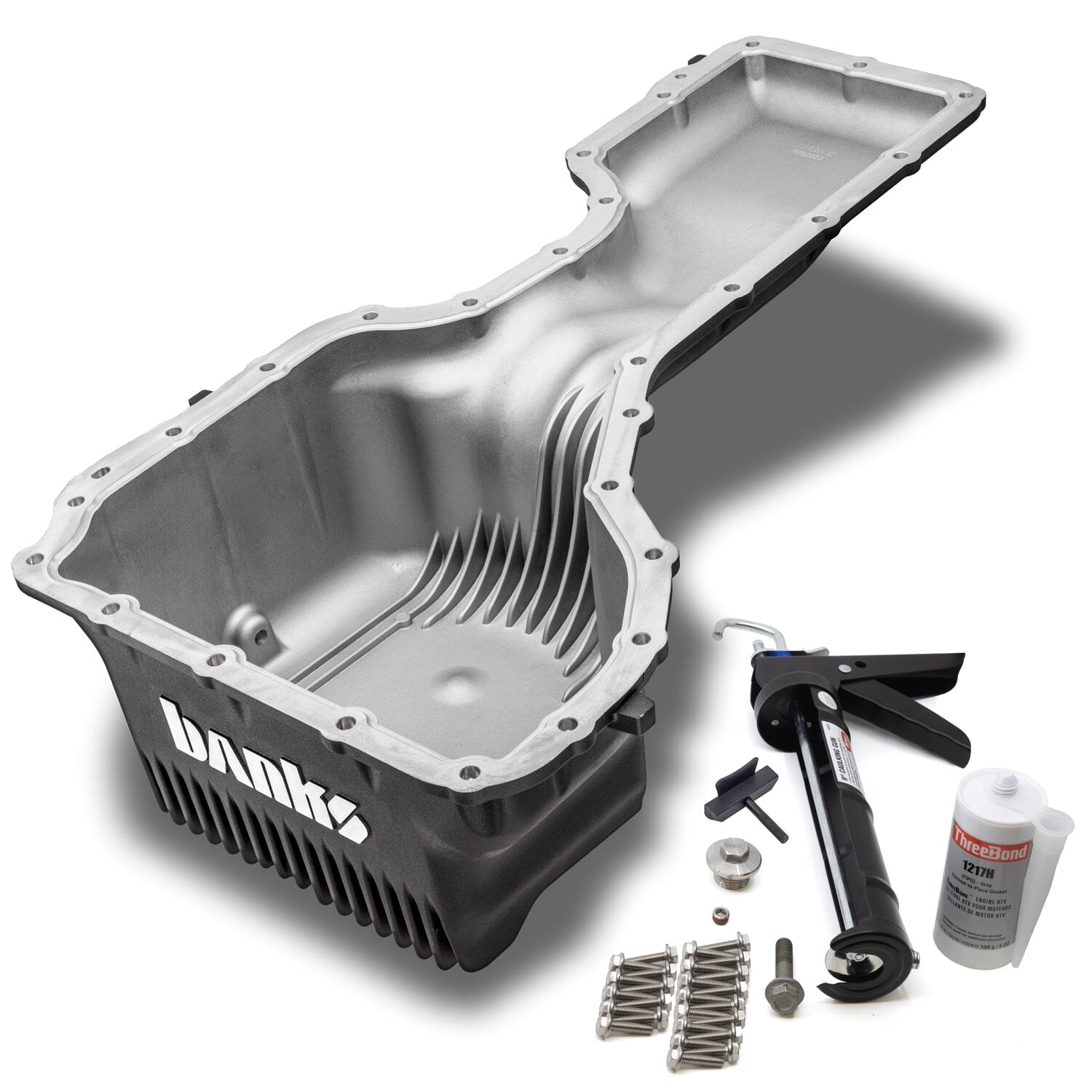

Banks CoolRunner™ Oil Pan - GM Duramax 6.6L L5P (2017-2019)

The Banks CoolRunner™ Oil Pan uses technology from Banks's military engine program to extend oil life on the 2017-2019 GM Duramax 6.6L L5P. It rejects more heat and reduces oil aeration compared to stock, adds two quarts of capacity, and uses Banks FlowThru Fins® for cooling. Unlike stock, it allows the oil pickup tube and pan to drain fully during oil changes.

Key features

• A380 die-cast aluminum with CNC-machined sealing surface
• Adds 2.0 qts additional oil capacity

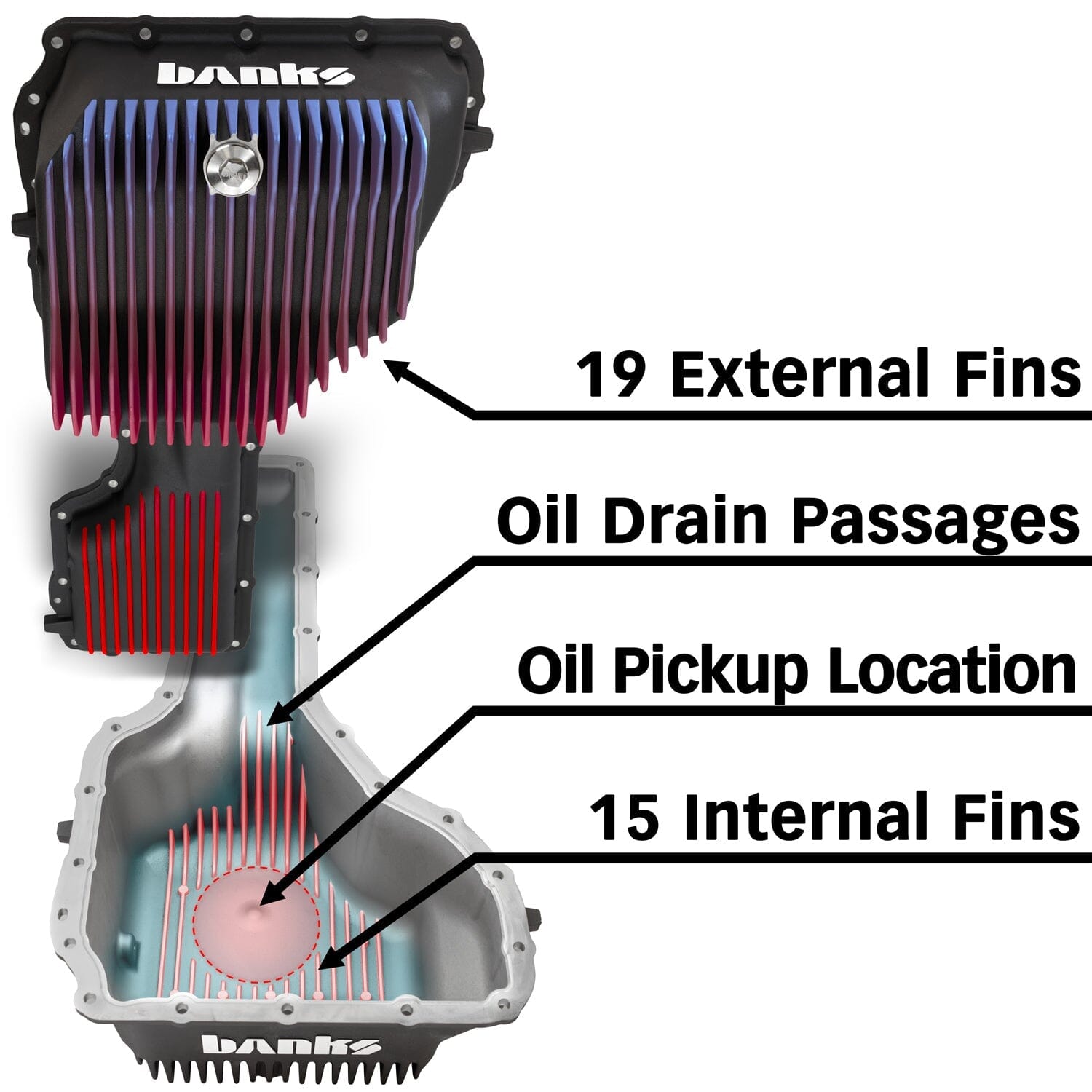

• Banks FlowThru Fins® reject heat and reduce aeration
• 19 external heat-radiation fins (605 in² surface area)
• 15 internal heat-absorption fins (402 in² surface area)
• High-temp-resistant ferrite magnetic drain plug
• Fully drains oil pickup tube for quicker oil changes
• 1/8 NPT port for auxiliary temp sensor

Technical specs

• External heat radiation fin count: 19
• Internal heat absorption fin count: 15
• External heat radiation surface area: 605 in²
• Internal heat absorption surface area: 402 in²
• Fasteners: 26 x stainless steel M6 flange hex bolts
• Material: A380 aluminum die-cast with CNC-machined surfaces
• Adds 2.0 qts additional capacity (check OEM owner's manual)
• Banks recommends Amsoil 15W-40 Signature Series Max-Duty synthetic diesel oil

Fitment

Fits 2017-2019 Chevrolet Silverado 2500/3500 and GMC Sierra 2500 HD/3500 HD with the 6.6L L5P Duramax diesel. CARB E.O. not required.

Installation

Installation manual and video from Banks.

Banks part 35135-B.
