Edge Evolution CTS4 Tuner and Monitor

Note: CTS4 is a new release from Edge. Orders placed now are pre-orders and ship in the order received as stock arrives, expected early November 2026.

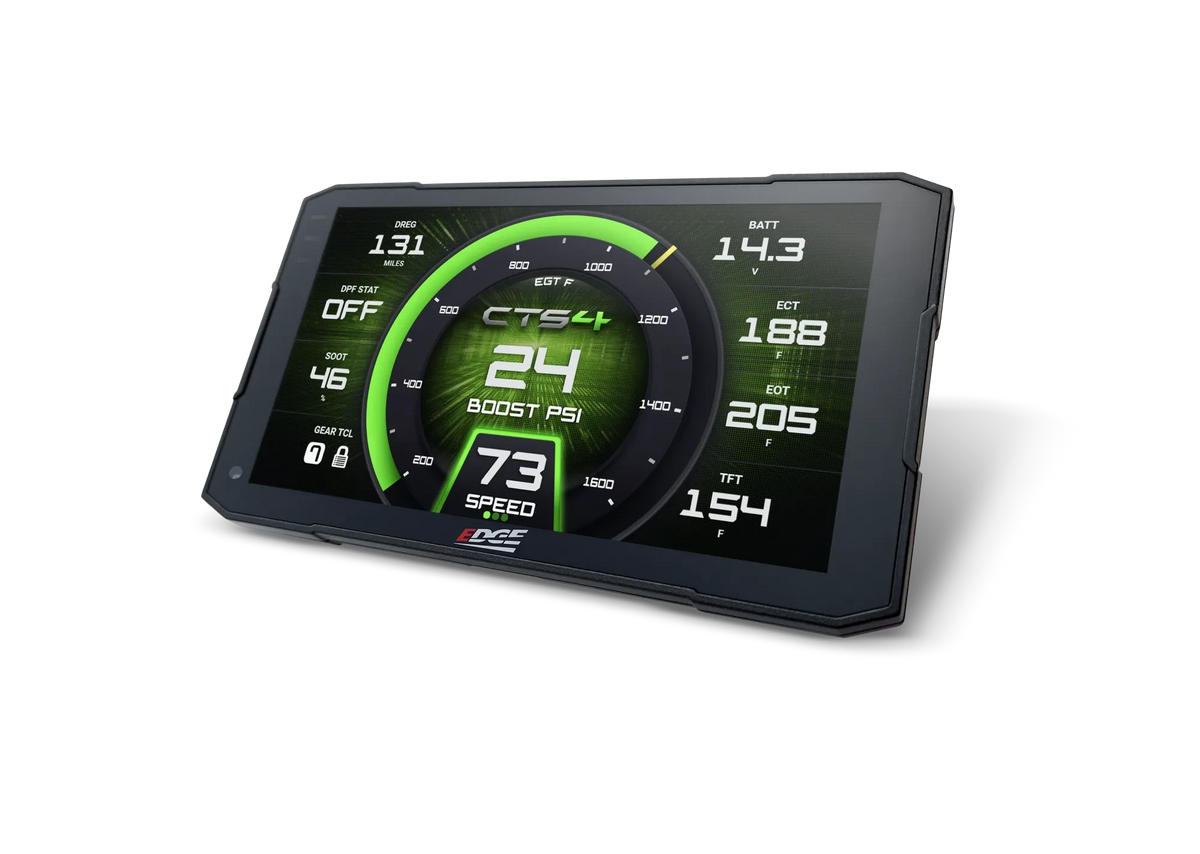

The Edge Evolution CTS4 tuner and monitor combines pre-loaded, vehicle-specific performance tuning with full digital gauges on a 5.5-inch touchscreen. The Diesel version covers Ford, GM and Dodge/Ram diesel trucks, with dedicated kits for L5P Duramax and late-model GM gas trucks that include the ECM unlock.

What CTS4 Changes Over CTS3

• 5.5-inch high-resolution touchscreen with 21% more viewing area than CTS3
• 1.7GHz dual-core 64-bit processor: 3.4x the processing power of the previous generation
• 2GB of 3400MHz LPDDR4 RAM, a 300% increase in memory
• 50% faster PID changes, so gauge data updates without lag
• 70% faster cold boot: gauges are live sooner after key-on
• New Quick Action buttons, Maintenance Minder and Peak Value Recall

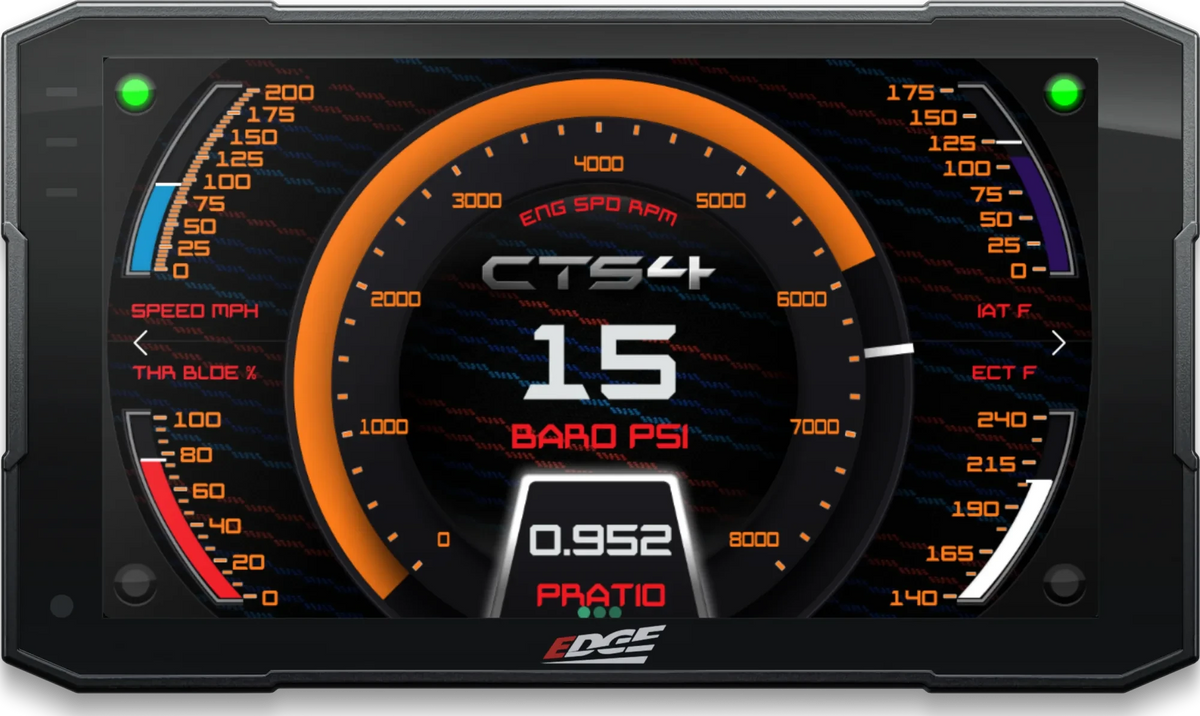

• Smooth 60 FPS display with customizable gauge layouts and backgrounds

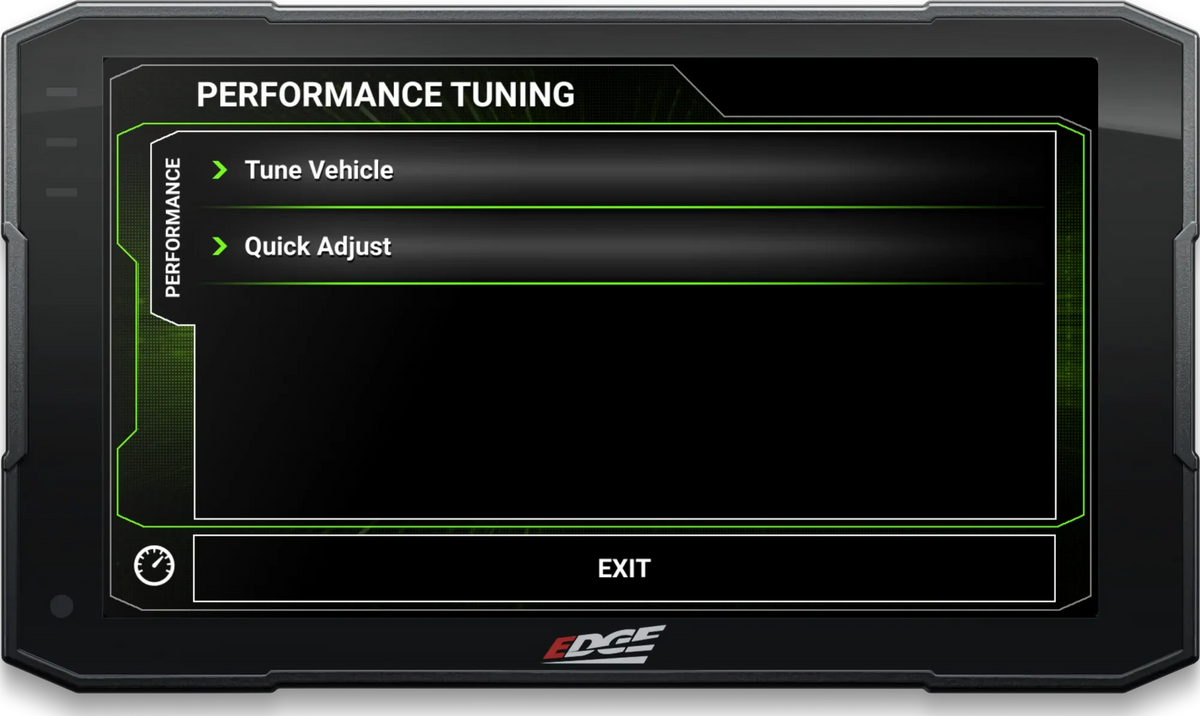

Pre-Loaded Performance Tuning

Diesel

• Up to 175 HP and 470 LB-FT on supported diesel applications
• Towing, Economy and Extreme levels: match the calibration to the work the truck is doing
• Vehicle-specific transmission tuning for shift timing, shift feel and power delivery
• Custom Tune VIN License included for calibrations that follow turbo or injector upgrades

2017-2023 L5P Duramax Kits

• In-vehicle ECM and TCM unlock included: no removing modules, no send-in
• Four levels on the 2020-2023 kit: Economy (+50 HP / +100 LB-FT), Towing (+75 HP / +160 LB-FT), Performance (+90 HP / +180 LB-FT), Extreme (+125 HP / +275 LB-FT)
• 10-speed Allison transmission tuning matched to each level
• Manual DPF regeneration, Allison relearn, adjustable idle-up from 600 to 1,800 RPM
• Remembers drive mode, exhaust brake, Tow/Haul and grade braking settings between key cycles
• Tire size correction from 26 to 38 inches, adjustable speed and rev limiters

GM Gas Kits

• 2019-2022 GM 1500 5.3L and 6.2L (non-refresh): 87 and 91 octane calibrations, AFM/DFM control, 8-speed and 10-speed transmission tuning
• 2020-2023 GM 2500/3500 6.6L gas: octane-specific performance and transmission tuning
• Both kits include the Edge Locksmith ECM unlock: no bench flashing

Monitoring and Diagnostics

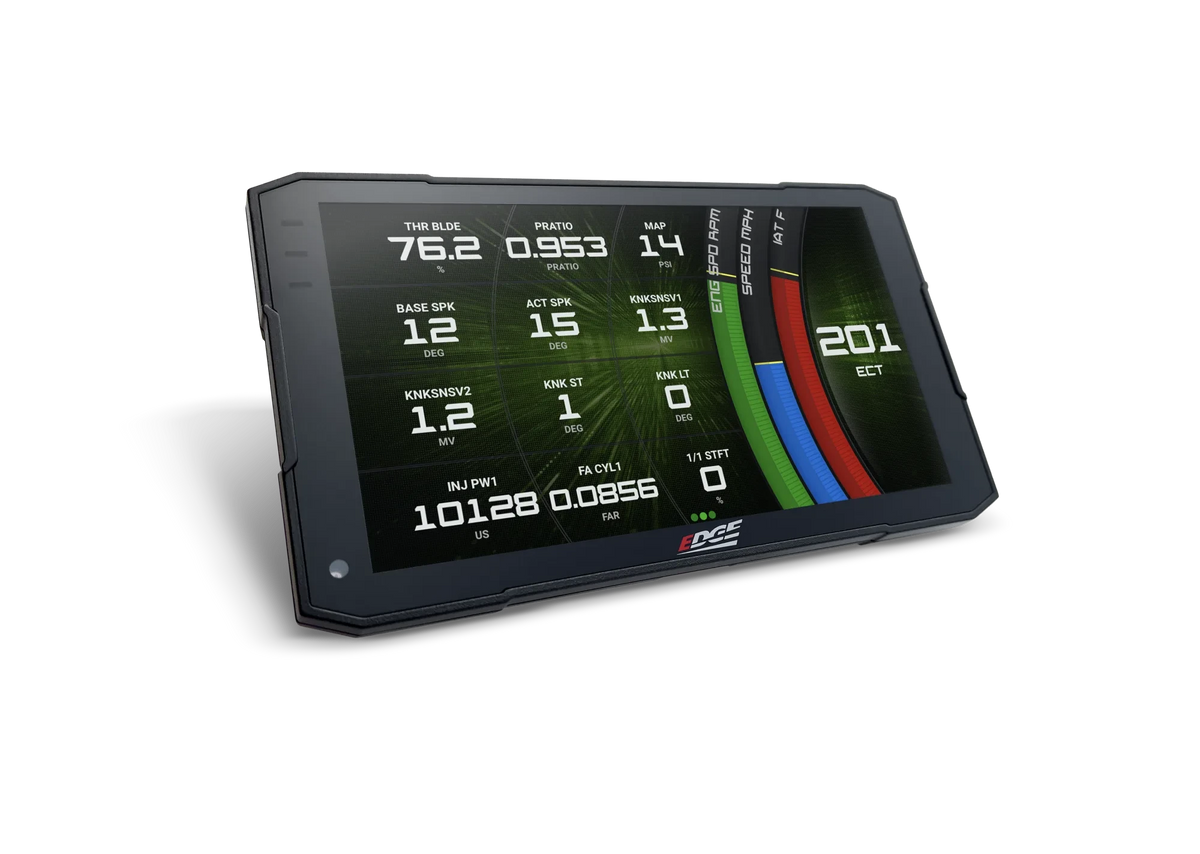

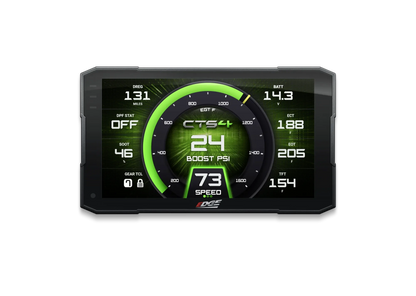

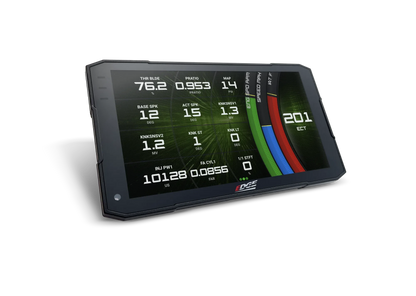

• Real-time gauges for EGT, boost, transmission temperature, coolant temperature, DPF soot load, regen status and dozens of supported parameters
• Custom alerts and warnings on supported parameters
• Integrated data logging with export
• Read and clear diagnostic trouble codes
• Built-in performance tests: 0-60 MPH, 1/4 mile and more
• Wi-Fi updates keep the device current without a computer
• Expandable Accessory System (EAS): add EGT probes, pressure and temperature sensors, or the CTS4 backup camera

Choose the Right Version

• Diesel: 1994-2022 Ford Powerstroke 7.3L, 6.0L, 6.4L, 6.7L; 2001-2016 GM Duramax 6.6L; 2003-2012 Dodge/Ram Cummins 5.9L and 6.7L

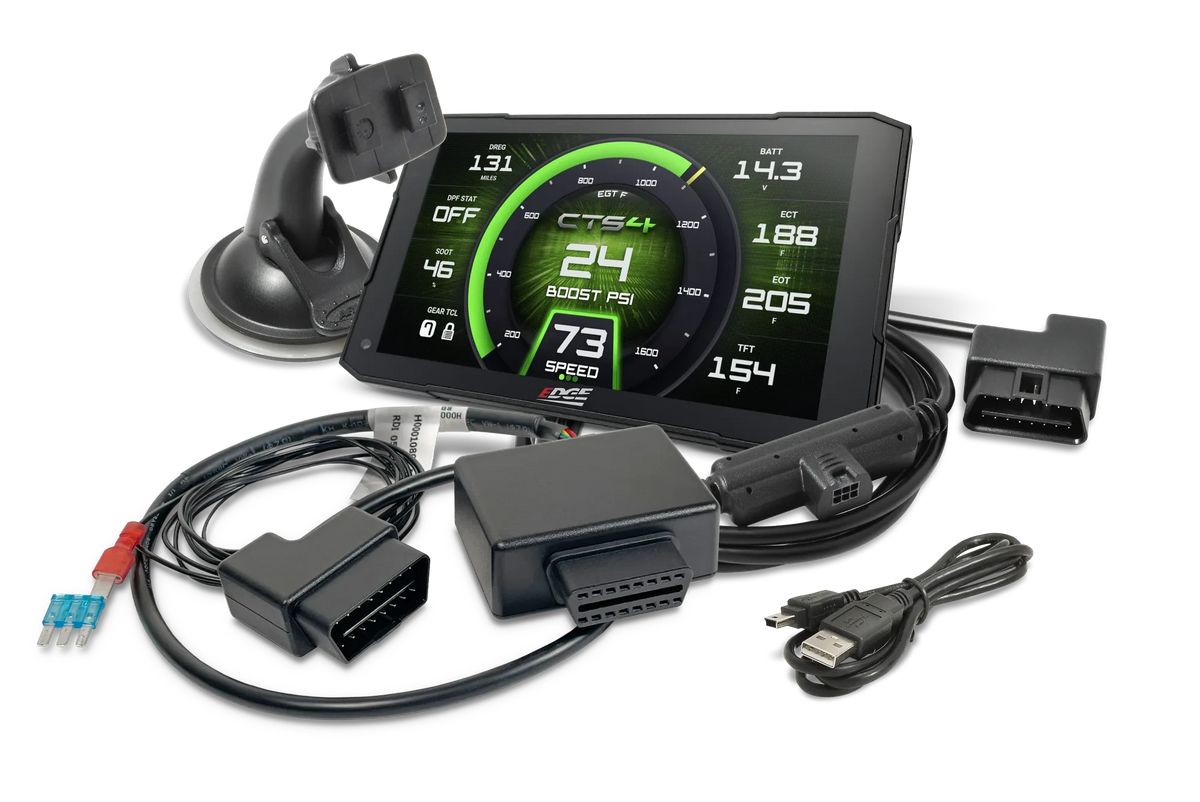

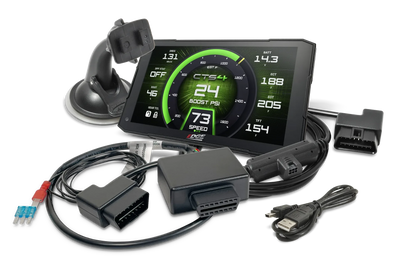

• 2017-2019 L5P Duramax 6.6L with unlock kit

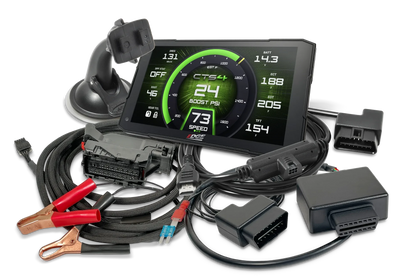

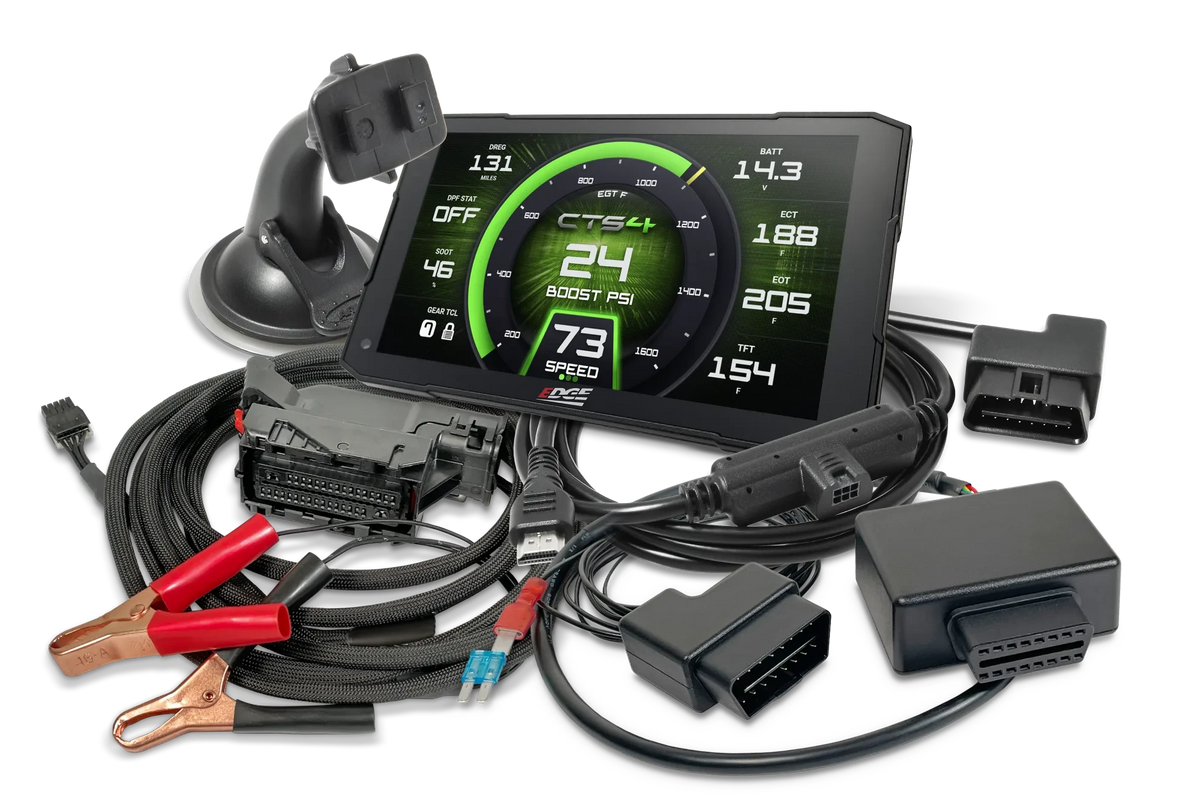

• 2020-2023 L5P Duramax 6.6L with unlock kit

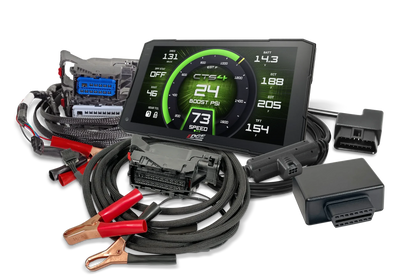

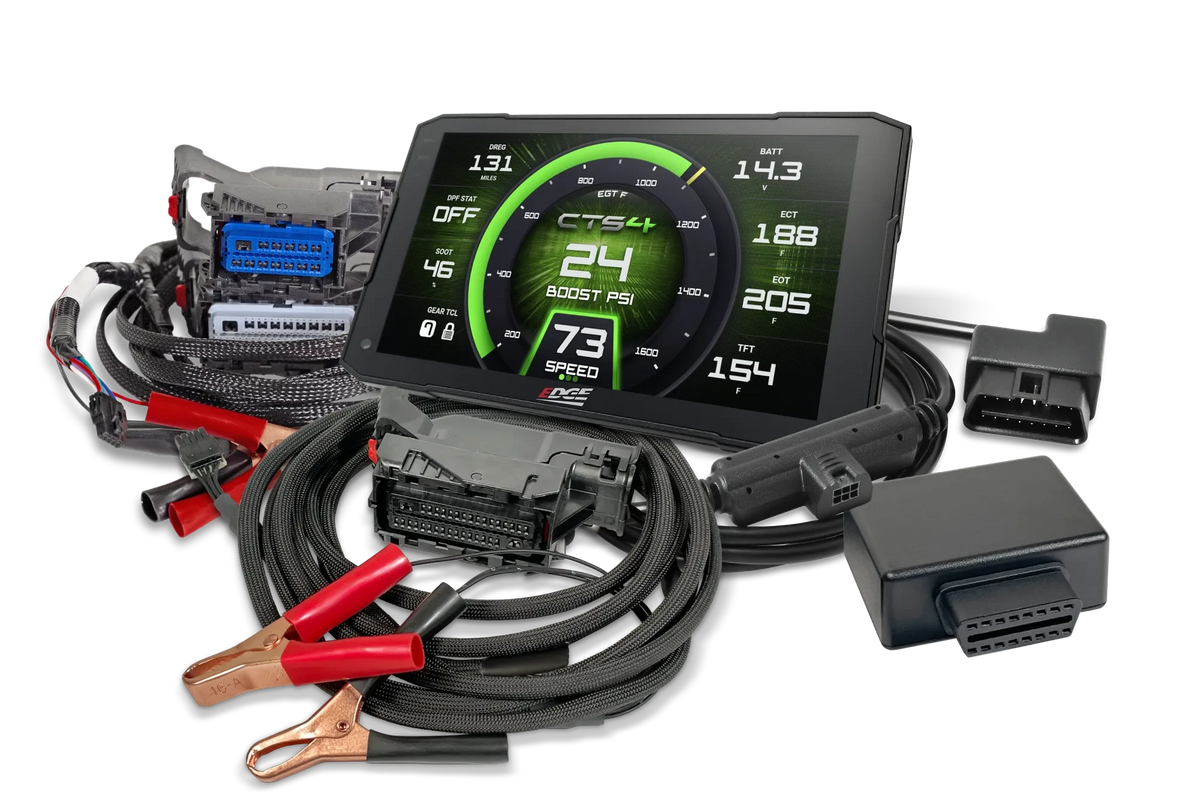

• 2019-2022 GM 1500 5.3L / 6.2L (non-refresh) with unlock kit

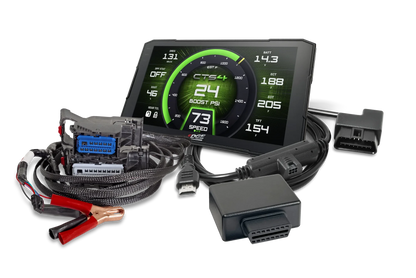

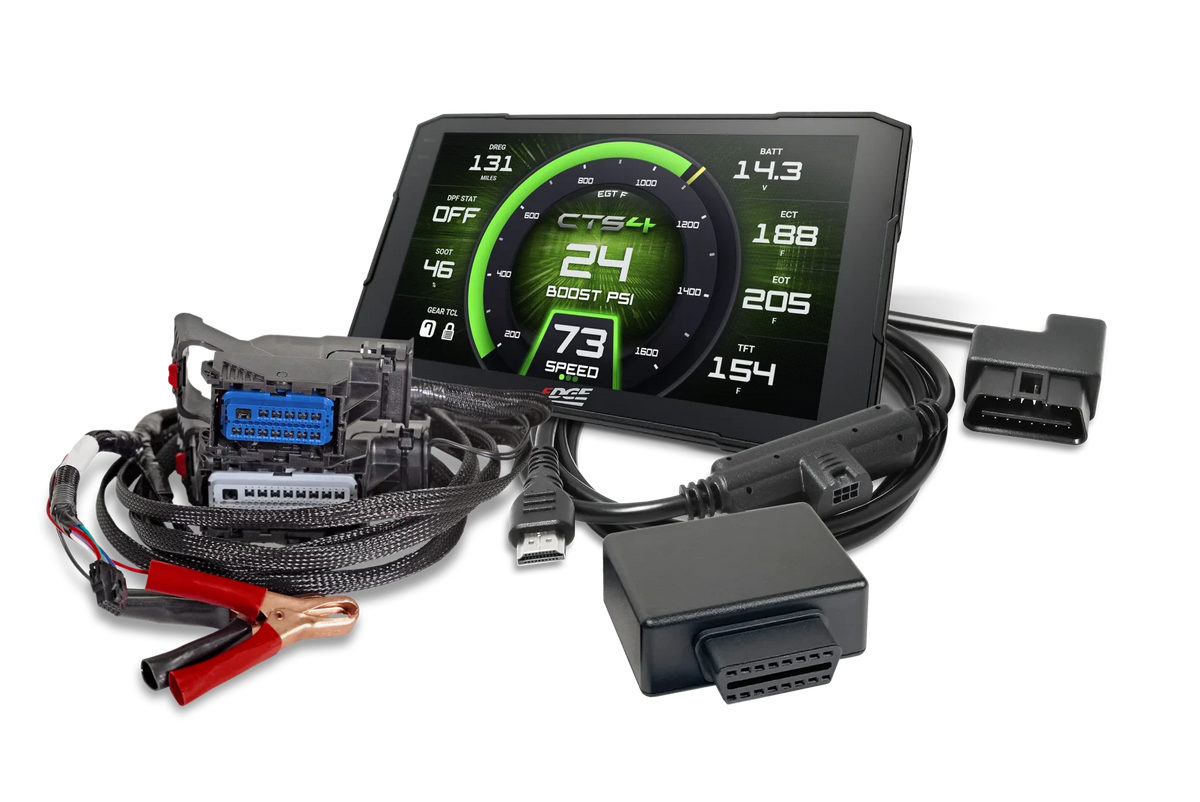

• 2020-2023 GM 2500/3500 6.6L gas with unlock kit

IMPORTANT: Legal under the provisions of the EPA tampering policy. Not legal for sale or use in California, or in states that have adopted California emissions standards, on pollution-controlled vehicles. The buyer is responsible for compliance in their jurisdiction.

Warranty and Support

Backed by the Edge Products one-year limited warranty. Dieselr supports every Edge device we sell, from fitment checks before the order to setup and troubleshooting after install.
