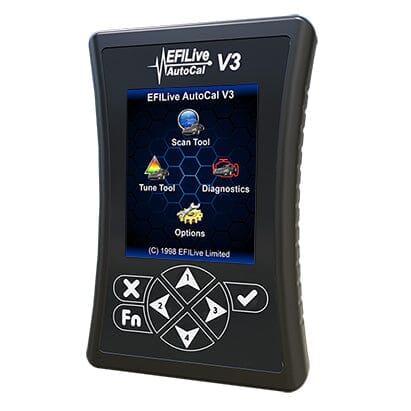

EFI Live Auto Cal V3 - BLANK

AutoCal V3 Specification
- Large, easy to read color screen.
- Built in 512MB micro SD Card.
- Built-in audible alarms.
- Upgradeable firmware.
- Vehicle Input Voltage - Min 9V, Max 28V.
- Battery backed real-time clock.
- Appears as a Windows USB drive.
- Built-in power supply prevents data corruption if external power supply is interrupted.

Systems Requirements
- PC or laptop capable of running Win7 or higher.
- USB port.
- Color screen with 1280x960 or greater resolution.
- 1GB of available disk space.

Communications Protocol
- SAE-J1979 CAN protocol
- SAE-J1939 CAN protocol
- SAE-J1850 VPW protocol

AutoCal V3 Compatibility
The following devices can make tune files for AutoCal
- FlashScan V3
- FlashScan V2
- FlashScan HD

BBX
- Read/Flash AutoCal⇄Connected Vehicle between 30 seconds and 7 mins (vehicle dependent).
- Store tune & log files to micro SD Card.
- Read & clear DTC codes.
- High speed data logging.
- Display data while logging.
- Read & program calibration and operating system data of engine controller.
- Automatic saving of trace files.

Pass-thru
- PC⇄AutoCal⇄Connected Vehicle read/flash between 30 sec and 7 minutes (vehicle dependent).
- Store tune & log files onto PC.
- Read and clear DTC codes.
- High speed data logging.
- Gauges & charts display in real time.
- Read & program calibration and operating system data of engine controller.

EFILive will provide a standard 12 month warranty.
