Engine Mounted Filter Assembly (2011-2024 Powerstroke)

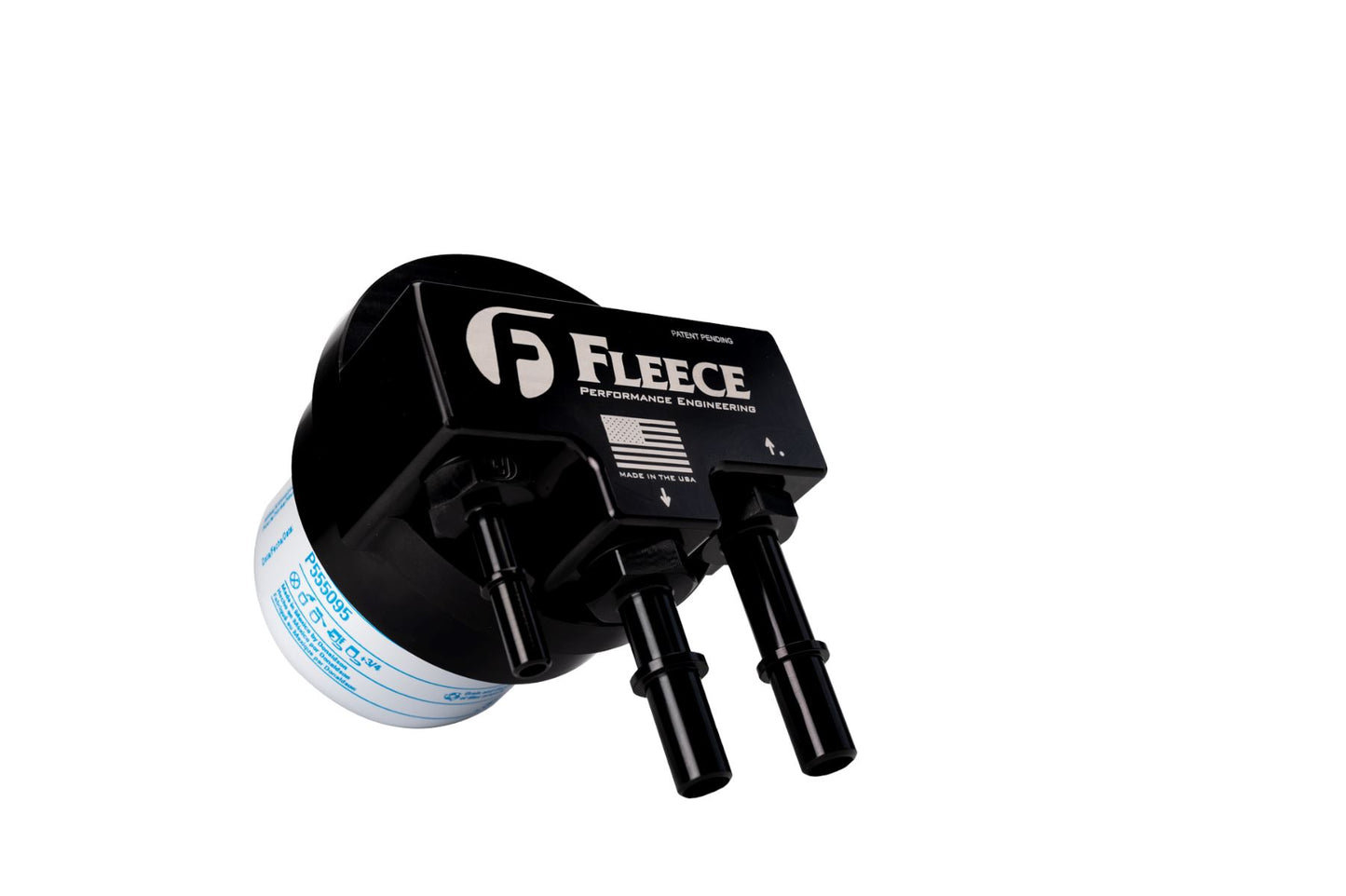

All New Fleece Performance replacement under hood filter assembly for the Ford F250/350/450/550 6.7L Powerstroke! The plastic OE filters are prone to cracking and fuel leakage - eliminate the risk of a cracked filter with our billet aluminum cap assembly and billet aluminum quick disconnect fittings.  Fleece's drop-in replacement filter assembly locks directly into the stock filter location and utilizes a replaceable spin-on Donaldson filter that is easily serviceable.  The kit includes an extra Donaldson fuel filter, further extending the time before you need to purchase an additional filter.

FEATURES

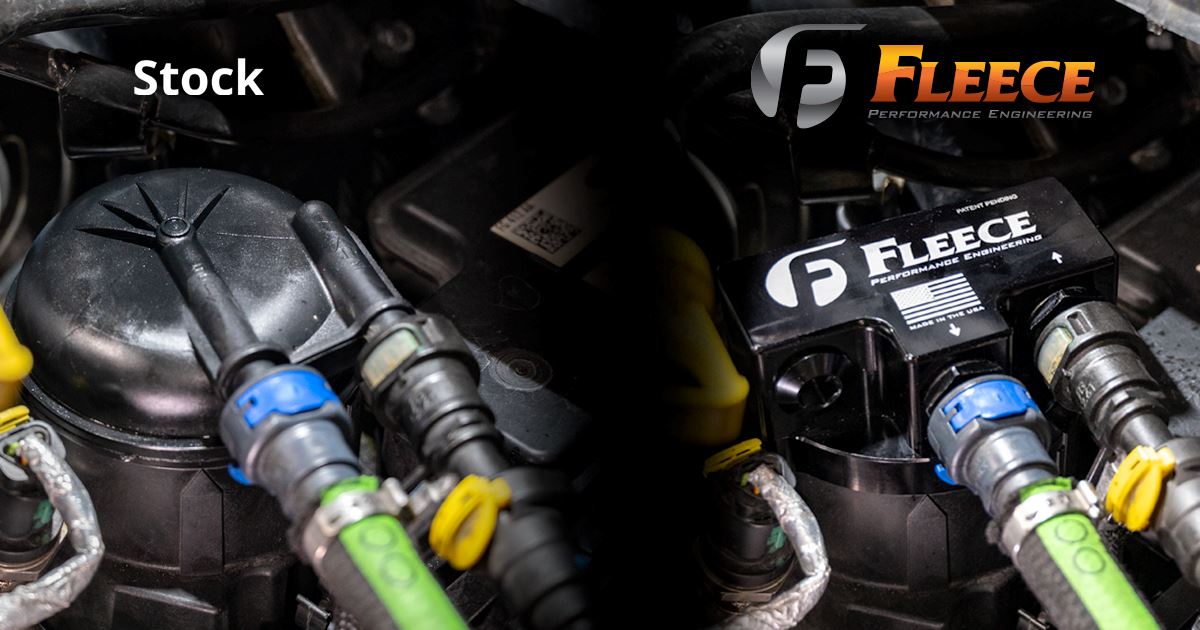

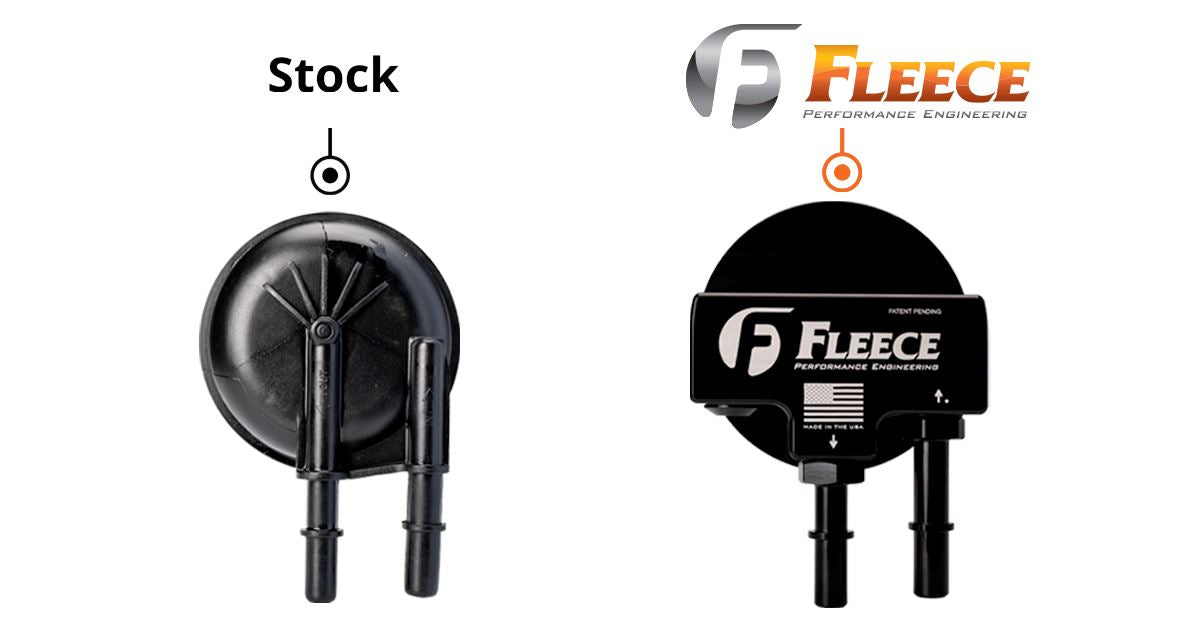

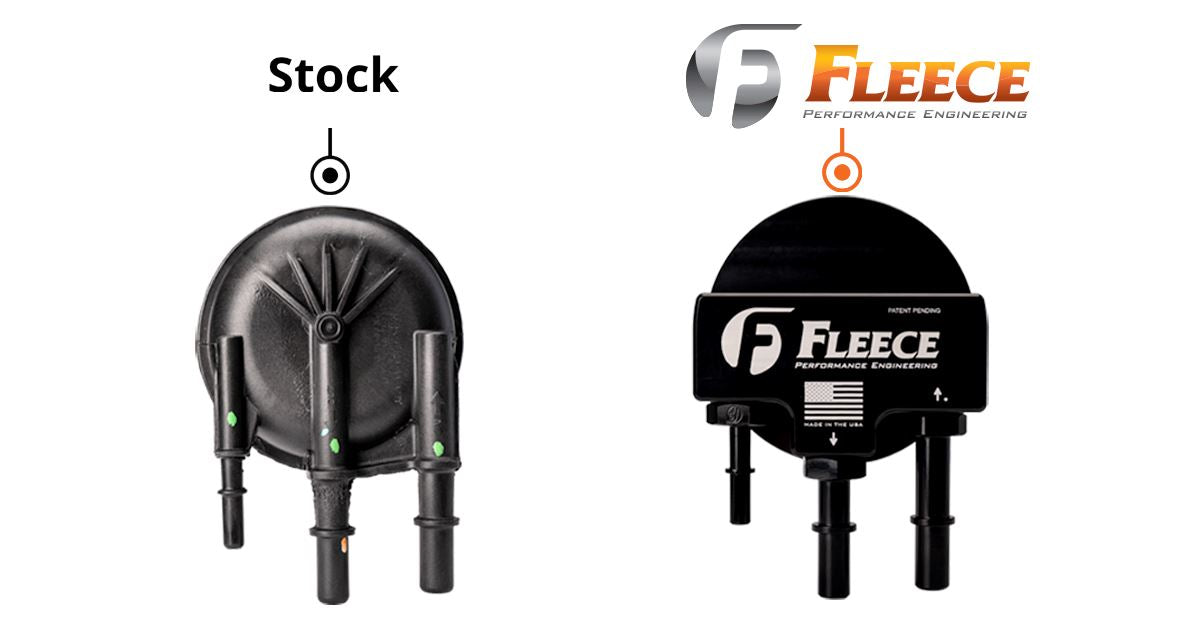

• Drop-in replacement for the factory under hood filter
• Heavy duty anodized billet aluminum cap
• Heavy duty anodized billet aluminum quick-disconnect fittings
• Steel adapter fitting for the filter
• Extra Donaldson P555095 filter included with the kit

APPLICATION NOTES

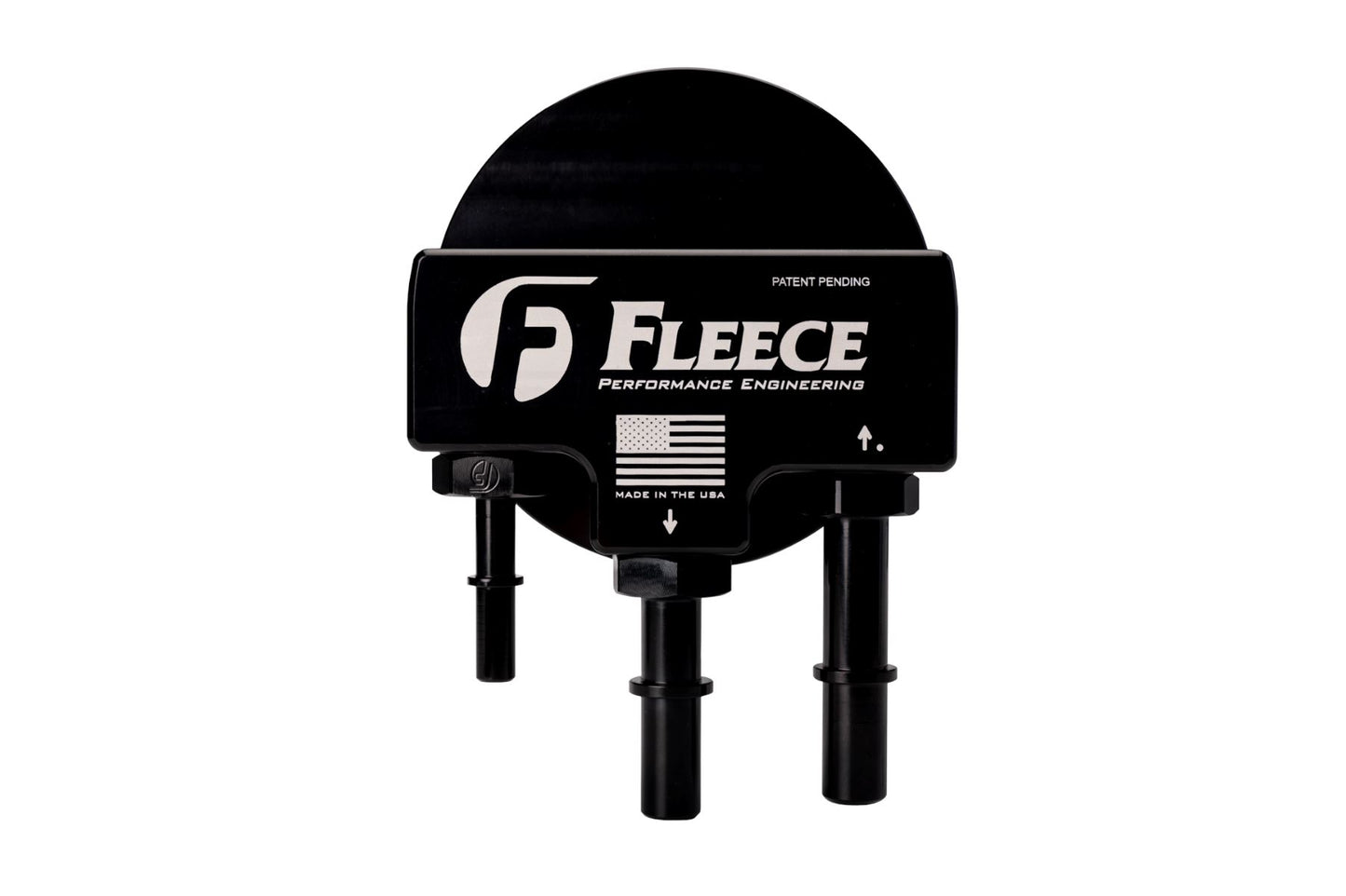

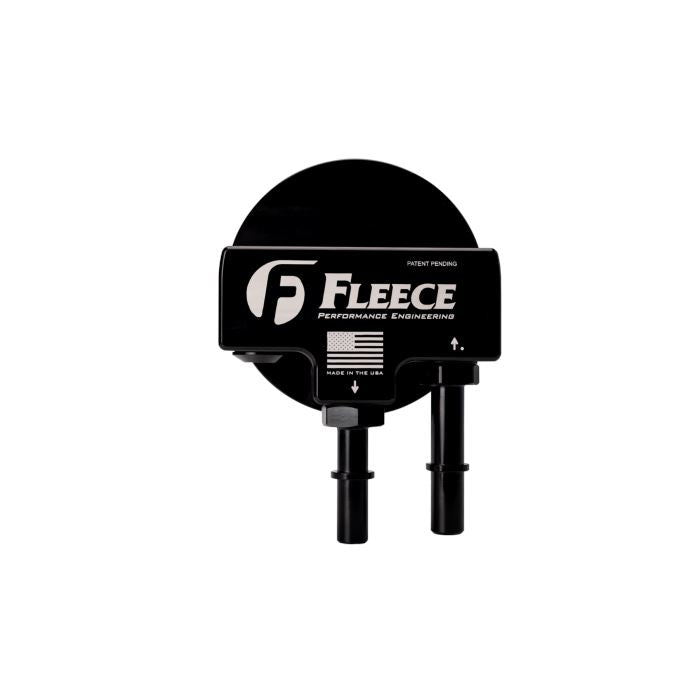

• Fits 2011-2024 F250/350/450/550 with 6.7L Powerstroke. The 2011-2016 model trucks use only one inlet and one outlet fitting. For 2017-2024 trucks, an additional quick disconnect fitting is provided for the required additional fuel return.
• This product fits 2011-2024 trucks equipped with an S&S Diesel Motorsport DCR conversion kit or the S&S Diesel Motorsport CP4 Disaster Prevention Kit.
• Replaces the under hood factory filter in Motorcraft Kits FD-4615 and FD-4625AA that contain manufacturer part numbers HC3Z9N184C and BC3Z9N184B.
• For 2011-2016 applications, the under bed primary fuel filter may be purchased individually, part number: AFe 44-FF014E

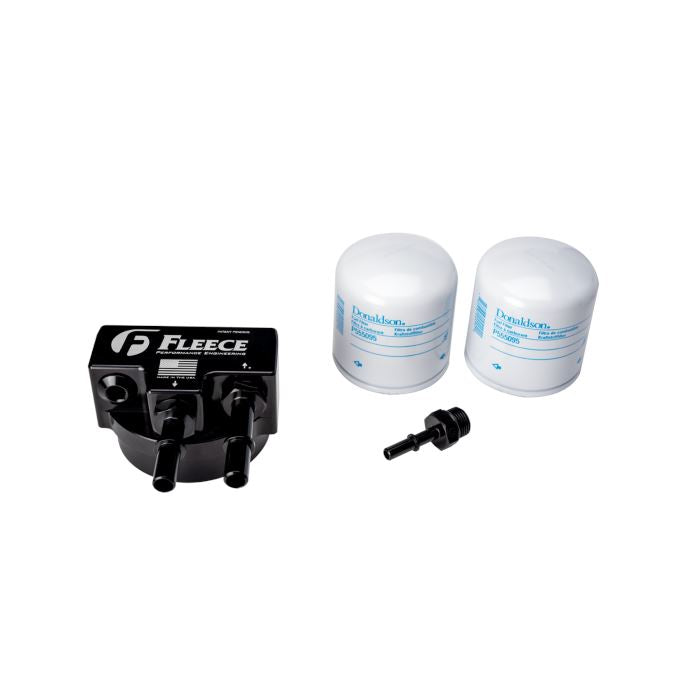

Kit includes the following Fleece Performance components: FPE-34552-A, FPE-34550-A, FPE-34781-A, FPE-FF-M16-ADPT, FPE-SP-3416.

*Patent Pending
