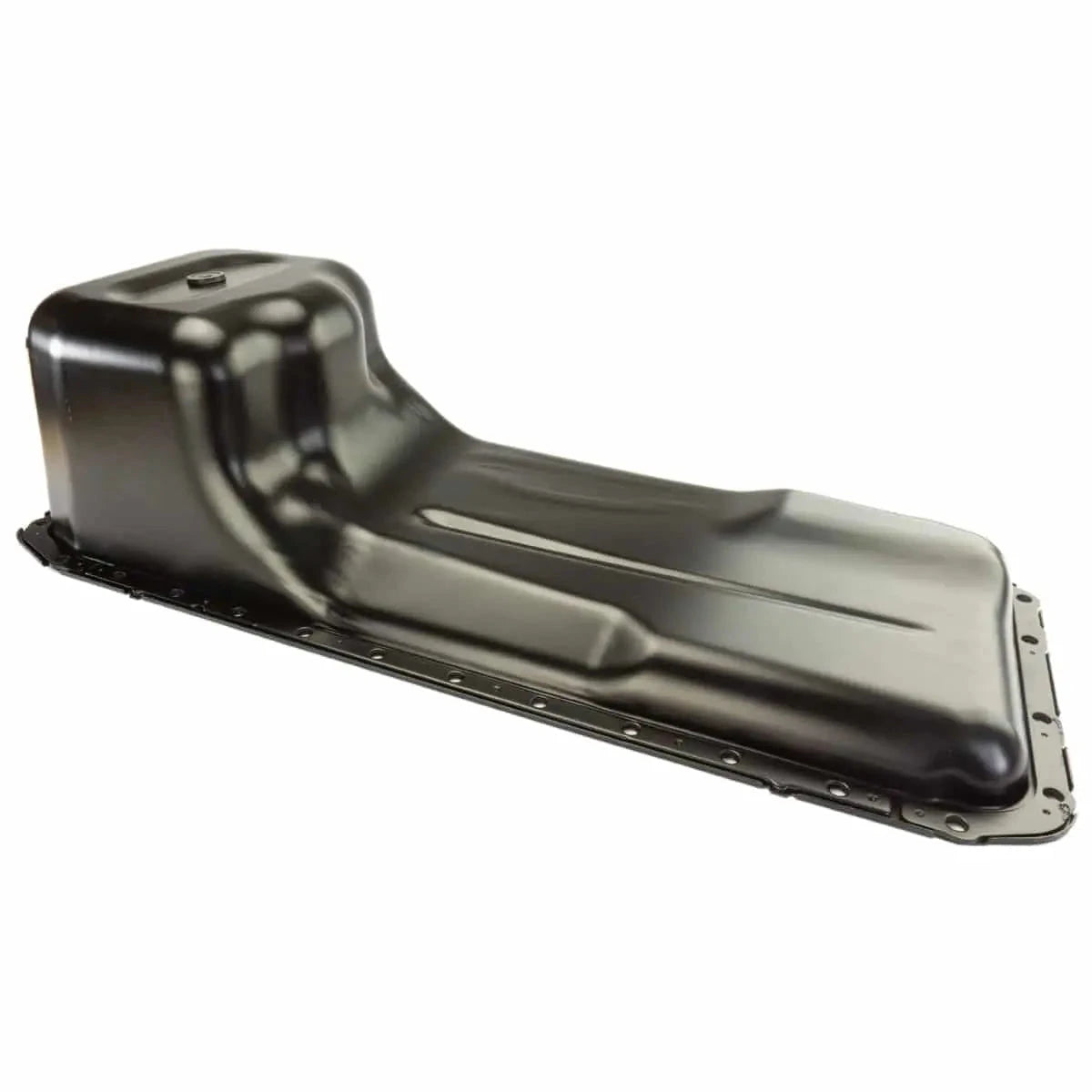

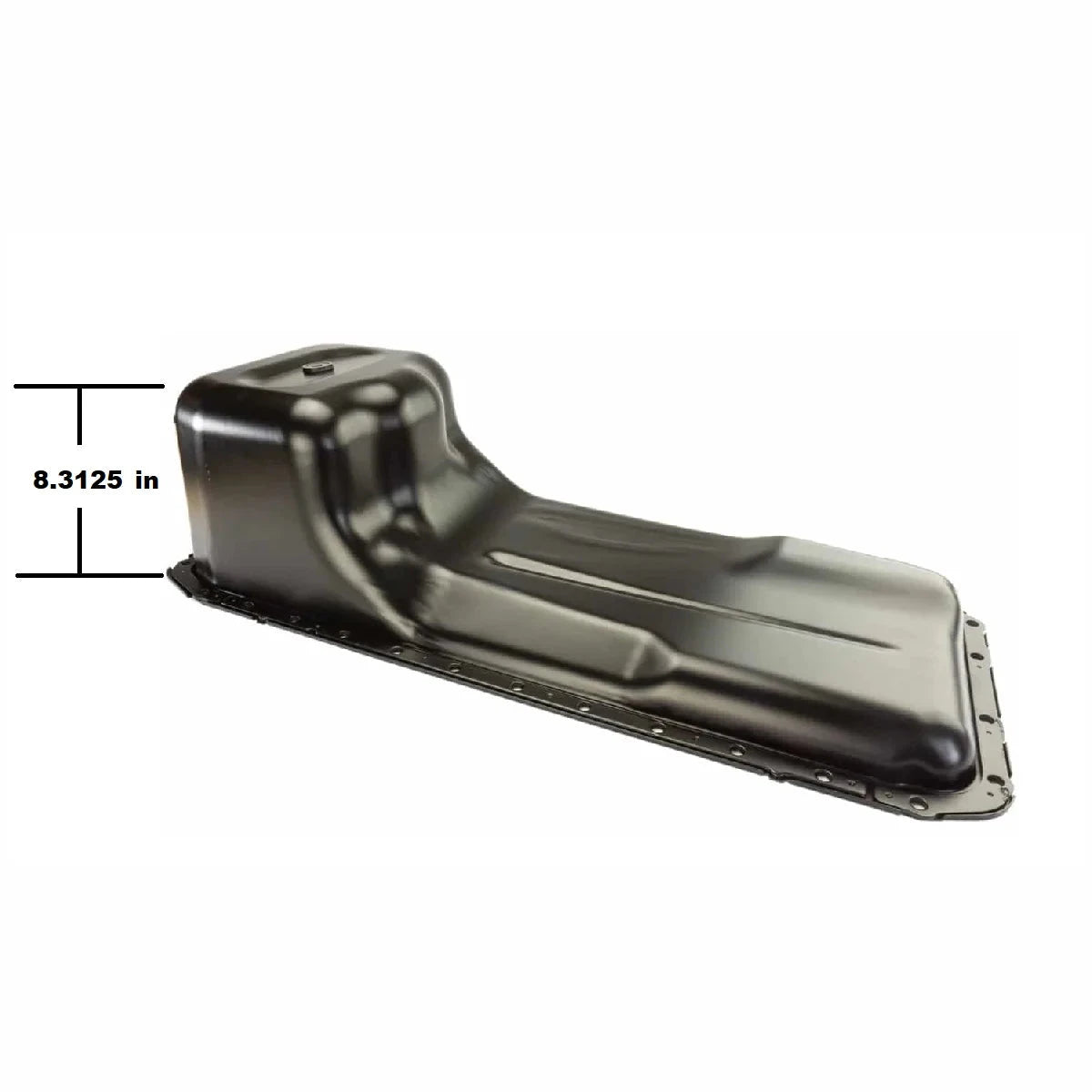

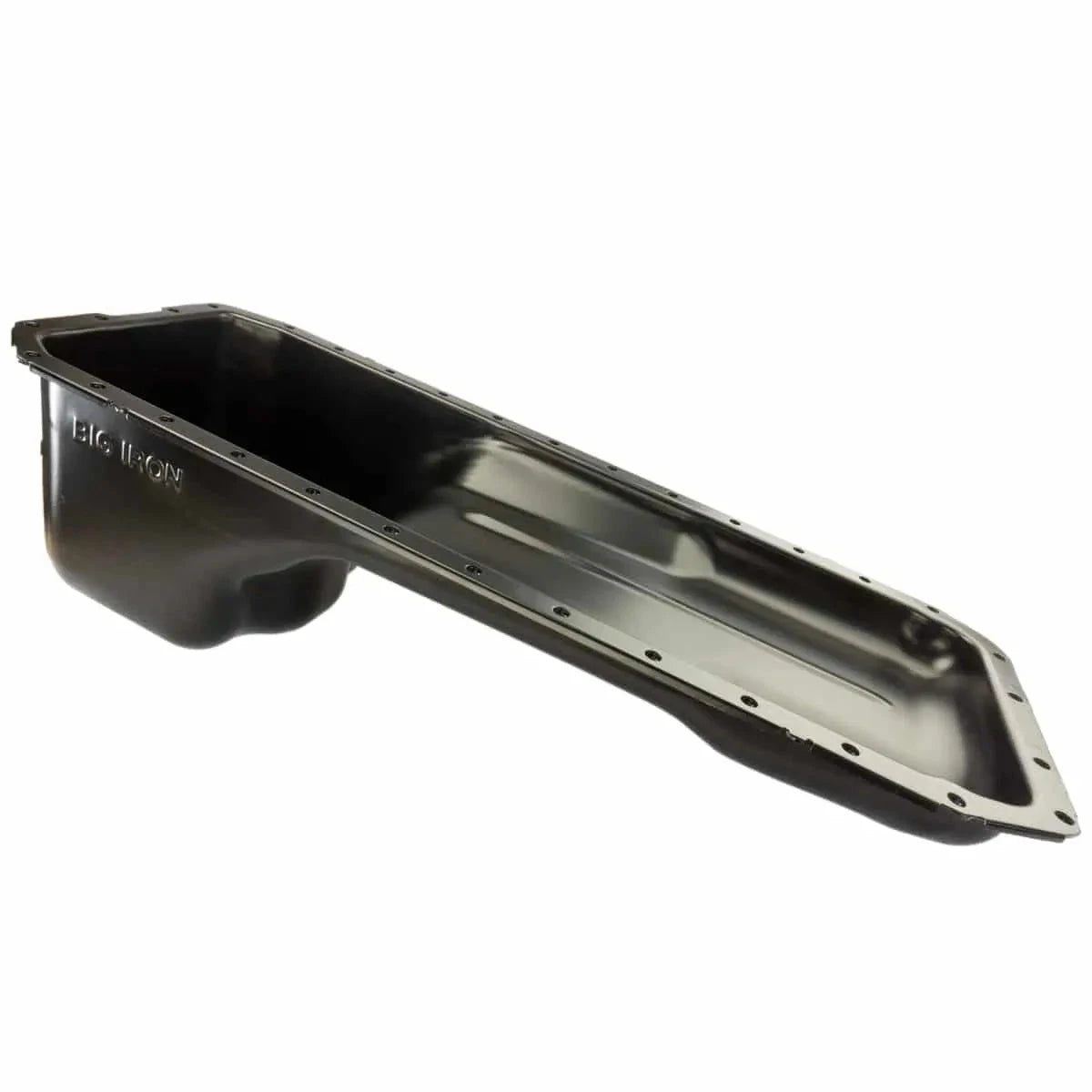

Industrial Injection Big Iron Oil Pan Cummins 6.7L (2013-2022)

The Industrial Injection Big Iron Oil Pan for the 2013–2022 Cummins 6.7L platform is a reinforced stamped oil pan designed specifically for engines equipped with the factory windage tray. The pan features a strengthened mounting flange and an integrated drain design that allows more complete oil evacuation during service.

The Industrial Injection Big Iron Oil Pan Cummins 6.7L (2013-2022) is built as a direct replacement for Dodge and Ram trucks using the 6.7L Cummins engine within the listed model years.

Vehicle Fitment

Supported Platform

• 2013–2022 Ram 6.7L Cummins

Engine Configuration

This oil pan is designed for engines equipped with the factory windage tray used on 2013 and newer 6.7L Cummins platforms.

Design Features

Complete Drain Design

The drain plug assembly incorporates four drain passages through the nut to allow oil to evacuate more completely during service intervals.

Reinforced Mounting Lip

A thicker reinforced mounting flange provides improved rigidity and consistent gasket sealing compared to thinner factory pan designs.

Direct Replacement Configuration

The pan installs as a direct replacement for the factory oil pan on compatible 6.7L Cummins engines using the factory windage tray configuration.

Technical Notes

• Designed specifically for 2013+ engines equipped with the factory windage tray.
• Reinforced flange requires correct mounting hardware for proper installation.
• Verify engine configuration prior to installation.

Compliance

Customer is responsible for confirming vehicle compatibility and legality within their jurisdiction where applicable. Dieselr does not provide legal advice.
