Stealth 67G2 Turbo (2003-2007 6.0L Powerstroke)
Stealth 67G2 Turbo (2003-2007 6.0L Powerstroke)
Calibrated Power
SKU:DM1583090302000
Couldn't load pickup availability
FITMENT
FITMENT
2003-2007 Ford F250, F350
SPECS
SPECS
Fly Past the Competition with the 6.0L Stealth 67G2 for the Ford Powerstroke (2003-2007)
- 750HP capable in competitive use
- 67mm Custom Billet Compressor
- Largest on the market 77.5x71mm turbine
- Stock Appearing
- 15mm Billet high flow vanes and matched unison ring and proprietary doll pin spacing
- Ported exhaust outlet
- Fully Functional Exhaust Brake
- Quick Spool-Up = Useable Horsepower
- Wide Torque Curve
- Distinctive Throaty Howl
- 12-month Warranty

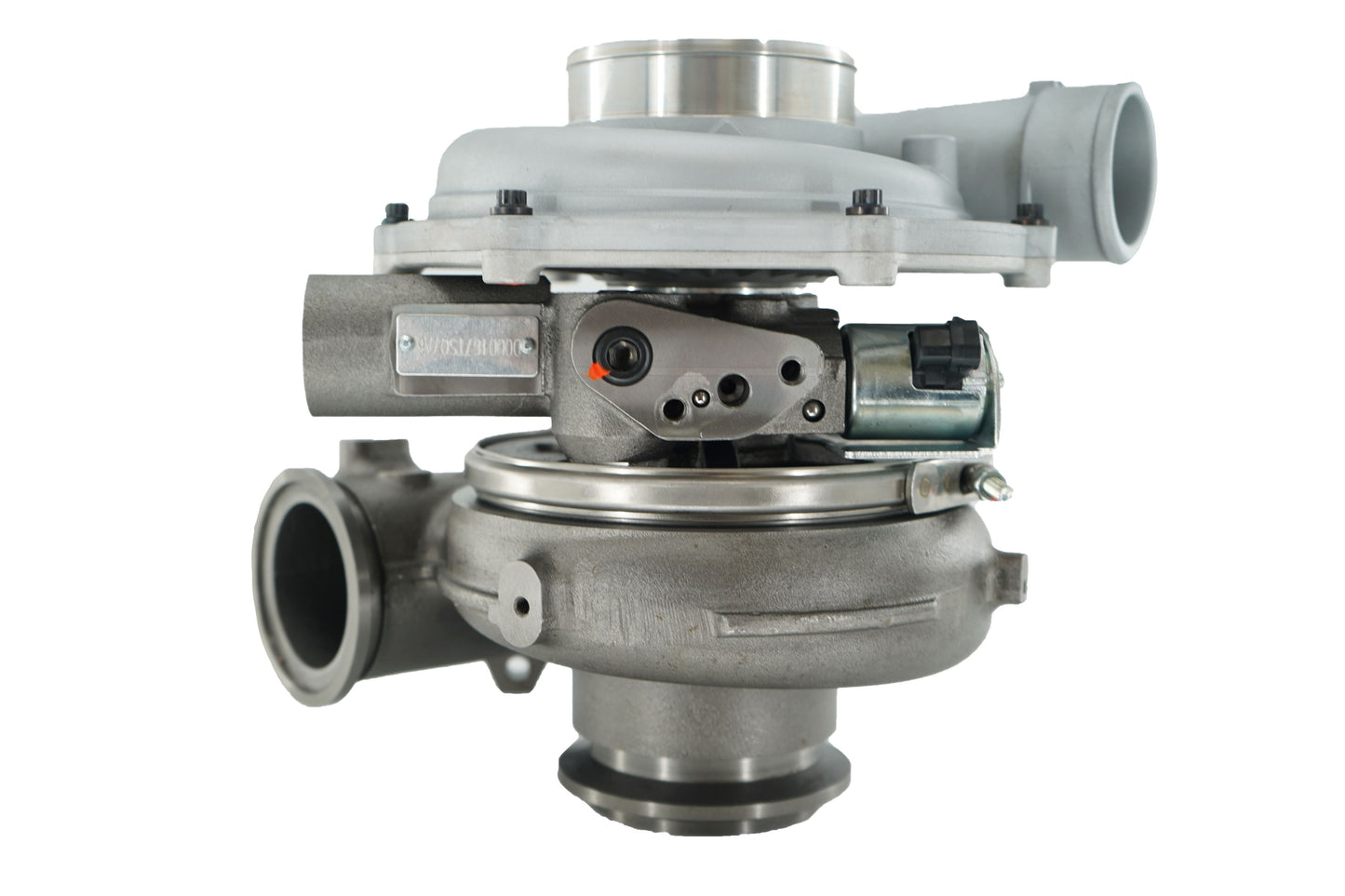

The 6.0 Stealth 67G2 center section is fitted with a 360-degree thrust bearing to minimize thrust wear during competition use.

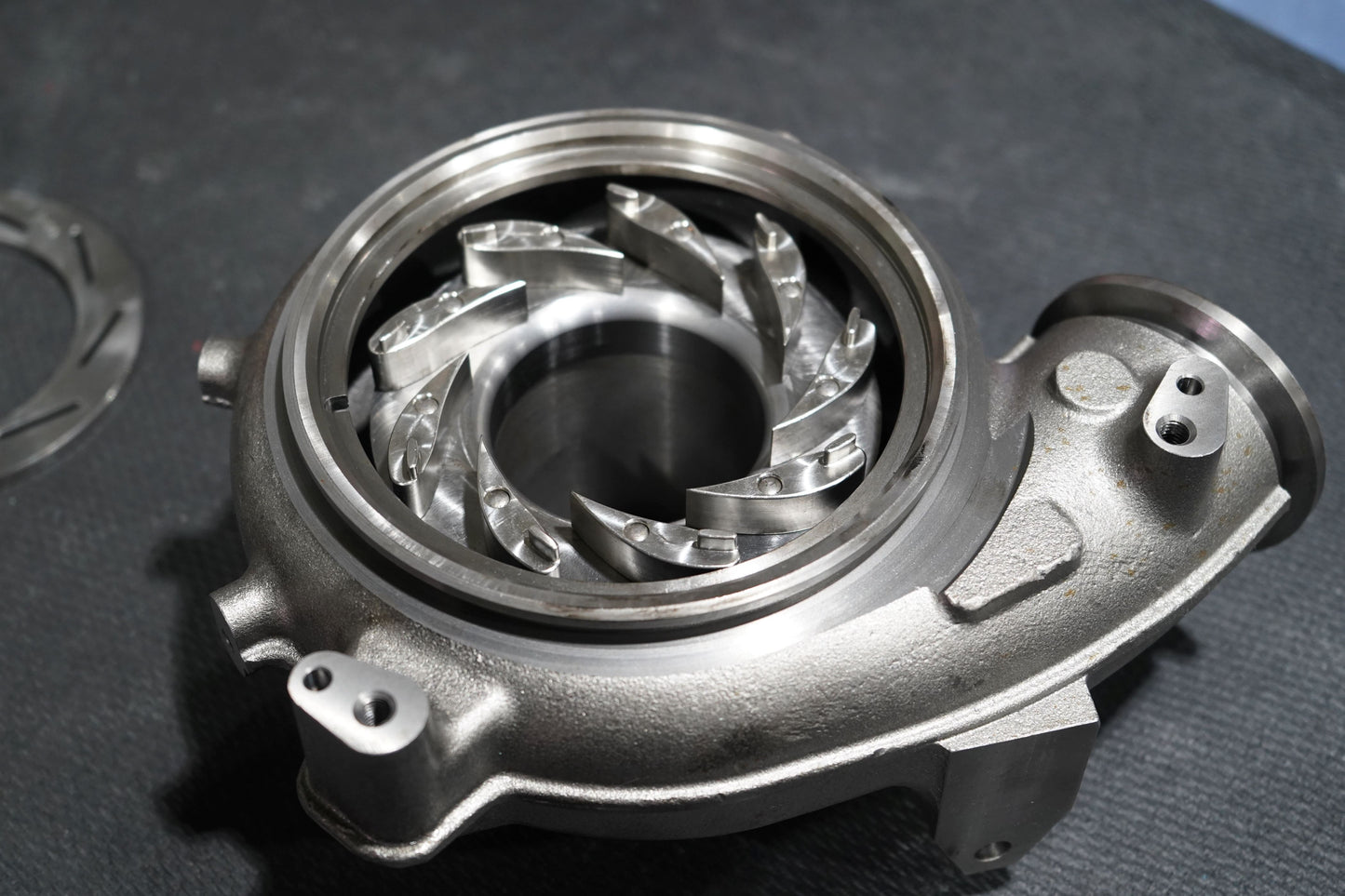

The turbine side innovation rivals the compressor side. Our turbine dwarfs the factory turbine and the Garrett Powermax in every way. The turbine inducer is taller, allowing much higher flowing vanes that are actuated using our matched unison ring. The 6.0 Stealth 67G2 features the largest turbine and vanes available in this frame. Increasing turbine size dramatically reduces drive pressure under heavy load, helping you achieve nearly a 1:1 drive to boost ratio under most operating conditions. Controlling drive pressure helps make more power and significantly lowers EGT's.
This Turbo is Designed for you if you...
- Daily drive your truck
- Reliability and Performance are your top priorities
- Tow with your truck
- Prefer to simply swap your old turbo out for a new one
- Want more power when you need it, but still have excellent street manners!
* 1-year Stealth Warranty.
* Not for sale in the state of California.
* ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSES ONLY. THE ACTUAL PRODUCTS MAY VARY DUE TO PRODUCT ENHANCEMENT.
* Prop 65WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
WARRANTY
WARRANTY
Calibrated Power Solutions Warranty:
Stealth Series Turbo: Limited Warranty Calibrated Power Solutions, Inc. warrants to the original purchaser of its Stealth Series Turbocharger Products that such Turbocharger Products will, for a period of 1 year from the date of shipment and subject to the Limitations on Warranty, be free from defects in materials and workmanship. For approved warranty claims Calibrated Power Solutions, Inc. will, at its sole discretion, either credit the original purchaser in an amount equal to the original purchase price or replace the applicable product free of charge, within 60 days of Calibrated Power Solutions, Inc. approval. This is the purchaser’s sole and exclusive remedy and provides the complete financial responsibility of Calibrated Power Solutions, Inc. for a warranty claim. To be eligible for reimbursement, the Customer must (a) submit all warranty claims to Calibrated Power Solutions, Inc. within 30 days of the discovery of the alleged product defect; (b) complete and submit Stealth Turbo Warranty Claim Form; and (c) ship the turbocharger with a copy of the completed Stealth Turbo Warranty Claim Form to Calibrated Power, Warranty Inspection Department, 455 Boren Street, Woodstock, IL 60098.
Limited Warranty: The Limited Warranty does not apply to any parts: (a) not used in accordance with Calibrated Power Solutions, Inc. written instructions (b) for which no fault is found; (c) that have been modified in any manner not specifically approved by Calibrated Power Solutions, Inc.; (d) for which an inspection indicates that reasonable and proper installation and/or preventative care and maintenance has not occurred; (e) that have been subject to damage attributable to or caused by misuse, abuse or vandalism; mishandling, improper shipping or other transit-related damage; acts of god or insurrection; foreign object entry; any part not supplied by Calibrated Power Solutions, Inc.; any repair, maintenance or service by anyone other than Calibrated Power Solutions, Inc.; or any other acts that are beyond Calibrated Power Solutions, Inc. reasonable control; or (f) attributable to parts not supplied by Calibrated Power Solutions, Inc. Calibrated Power Solutions, Inc. expressly disclaims any and all warranties relative to the foregoing circumstances. Calibrated Power Solutions, Inc. shall not be liable to Customer under any circumstances for any special, incidental, or consequential damages, including without limitation, damage to or loss of property other than for Stealth Turbo Products; damages incurred in installation, repair or replacement; lost profits, revenue or opportunity; loss of use; losses resulting from or related to downtime of Stealth Turbo Products; the cost of replacement transportation, power, or compression; the cost of substitute products; or claims of third parties for such damages, howsoever caused, and whether based on warranty, contract, and/or tort (including negligence, strict liability or otherwise). The Limited Warranty is the only warranty made by Calibrated Power Solutions, Inc. for any of its thermal-related parts and/or services, and is in lieu of and excludes all other warranties, expressed or implied, including warranties of merchantability or fitness for a particular purpose. Calibrated Power Solutions, Inc. hereby disclaims all other warranties not expressly set forth. Some jurisdictions do not allow for the exclusion of implied warranties, so the above exclusions may not apply to you, however, if implied warranties do apply they are limited to the original purchaser and for a period of one (1) year from the date of shipment.
FAQ
FAQ
The class-leading charger has the turbine and compressor design to outflow and out-muscle the competition but none of the compromises that you've been conditioned to expect. Whether you're simply replacing a stock turbo on your tune-only truck, looking for a turbo to clean up a mild set of injectors on your 550HP setup, or laying the foundation for a 750HP build you'll be glad you chose the Stealth.

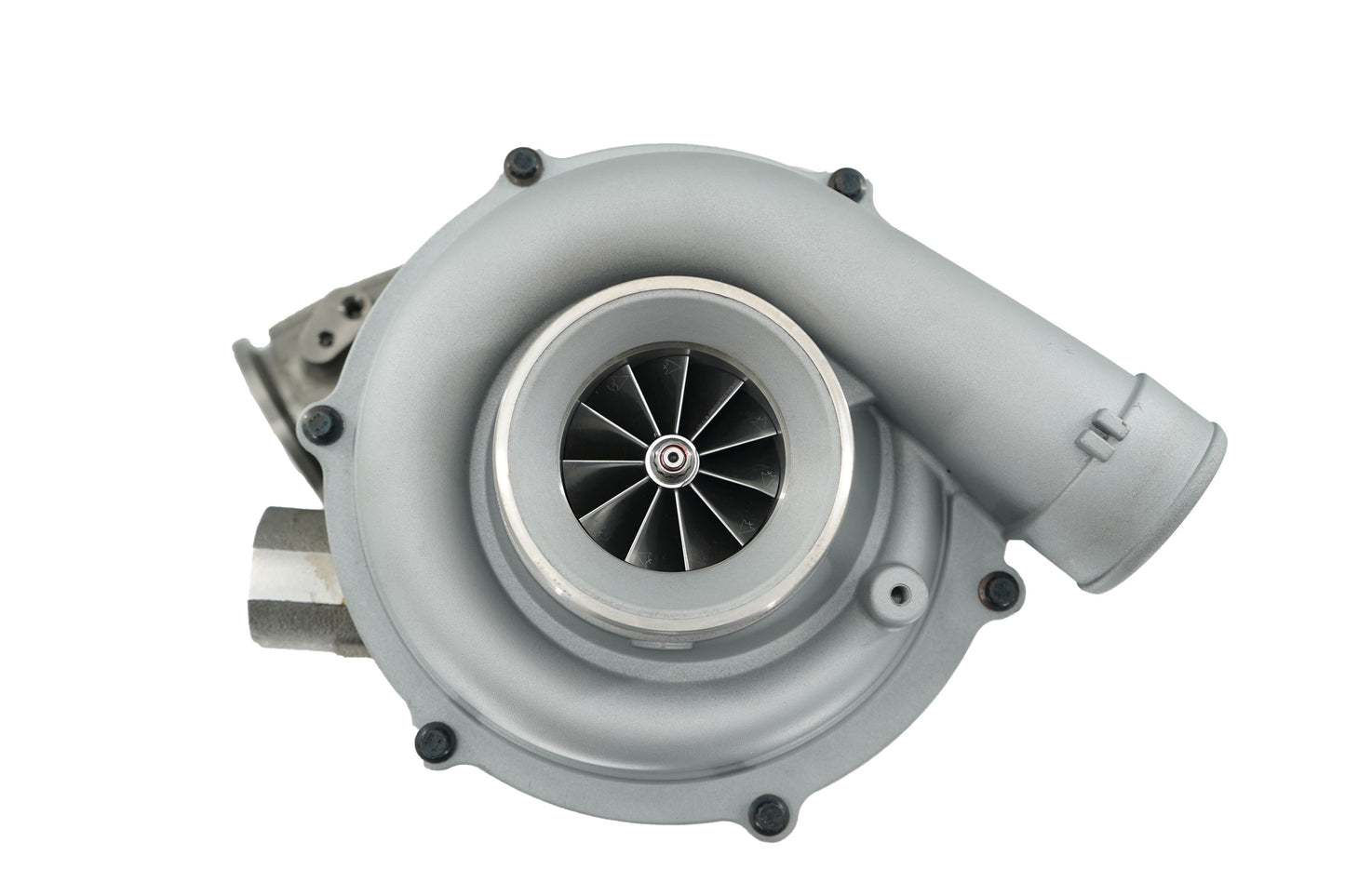

Our custom 67mm compressor is milled out of high-strength 7075 Aluminum. Its 11-blade design is engineered to maximize peak power while minimizing the potential for surge while towing at altitude. Redesigning the compressor to maximize power and driveability meant pouring over every detail from MWE groove width and placement to diffuser clearance.
Important Notice: 2003-2004 6.0L Powerstrokes require either a 2005-2007 6.0L Powerstroke intake manifold or an aftermarket intake manifold as well as the pedestal adapter to be able to fit this turbo.
